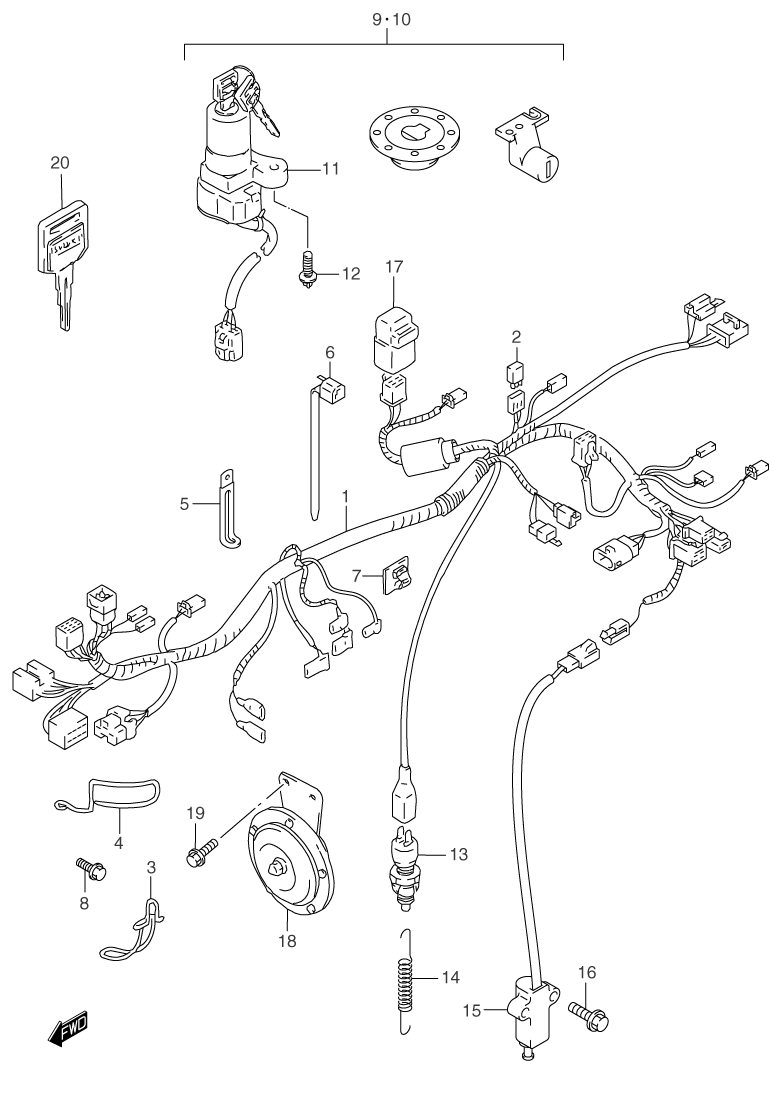

ELECTRICAL - WIRING HARNESS для Suzuki GS500 K1 - 2001 года выпуска

№

Артикул

Название
1

36610-01DB0 HARNESS, WIRING

HARNESS, WIRING
2

36611-38A00 ...DIODE

...DIODE
3

36611-01D00 PROTECTOR, WIRING HARNESS

PROTECTOR, WIRING HARNESS
4

36611-01D10 PROTECTOR, WIRING HARNESS

PROTECTOR, WIRING HARNESS
5-1

09404-06431 CLAMP (L:85)

CLAMP (L:85)
5-2

09404-06432 CLAMP (L:80)

CLAMP (L:80)
5-3

09404-06434 CLAMP (L:95)

CLAMP (L:95)
5-4

09404-08207 CLAMP (L:97)

CLAMP (L:97)
6-1

09407-14403 CLAMP (L:125)

CLAMP (L:125)
6-2

09407-18402 CLAMP (L:165)

CLAMP (L:165)
6-3

09407-19401 CLAMP (L:190)

CLAMP (L:190)
7

09403-06310 CLAMP

CLAMP
8

01550-06163 BOLT, WIRING HARNESS GUIDE

BOLT, WIRING HARNESS GUIDE
9

37000-26890 LOCK SET (EXCEPT CALIF.)

LOCK SET (EXCEPT CALIF.)
10

37100-26850 LOCK SET (CALIFORNIA ONLY)

LOCK SET (CALIFORNIA ONLY)
11

37100-26D03 ...LOCK ASSY., STEERING

...LOCK ASSY., STEERING
12

09139-06026 BOLT

BOLT
13

37740-24A00 SWITCH ASSY., STOP LAMP

SWITCH ASSY., STOP LAMP
14

09443-06042 SPRING

SPRING
15

37840-26X50 SWITCH ASSY., SIDE STAND

SWITCH ASSY., SIDE STAND
16

01550-06303 BOLT

BOLT
17

38740-24X50 RELAY ASSY., SIDE STAND

RELAY ASSY., SIDE STAND
18

38500-01D10 HORN ASSY.

HORN ASSY.
19

01550-06123 BOLT

BOLT
20

37146-26D10 KEY, BLANK (OPT)

KEY, BLANK (OPT)
