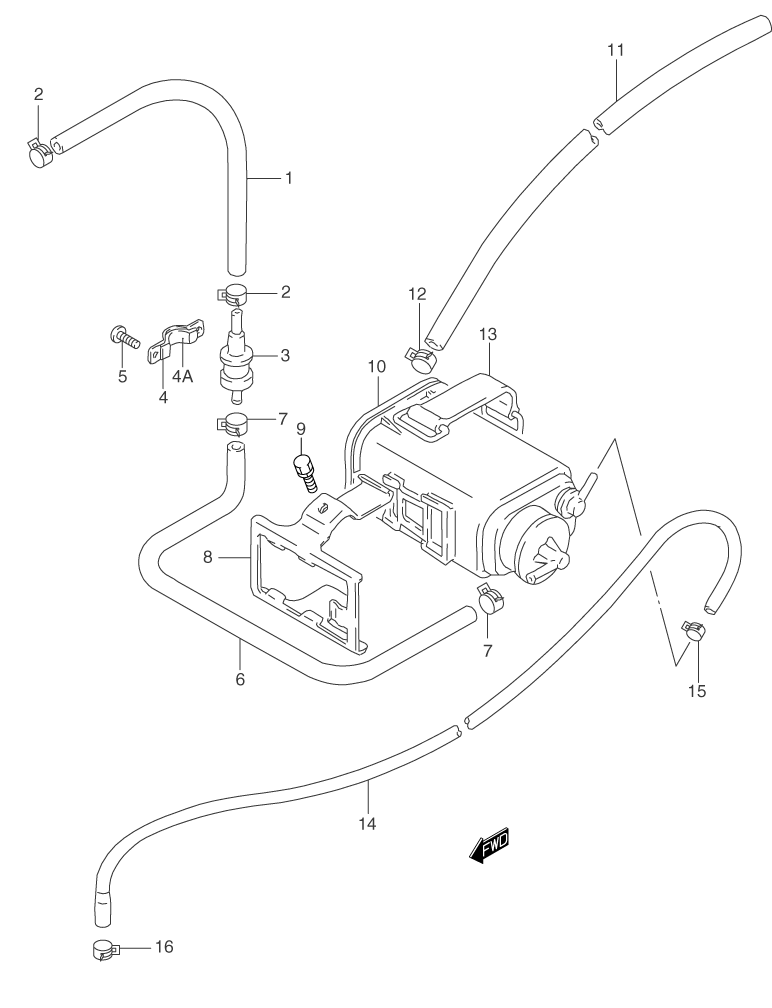

POLLUTION CONTROL (CALIF. ONLY) для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
109355-54116-600 HOSE, TANK TO BREATHER VALVE (L:600->400)HOSE, TANK TO BREATHER VALVE (L:600->400)
-
209401-11413 CLIPCLIP
-
344240-38A00 VALVE, BREATHERVALVE, BREATHER
-
444892-24A00 PLATE, BREATHER VALVEPLATE, BREATHER VALVE
-
4A44894-24A00 ...CUSHION...CUSHION
-
502142-04103 SCREWSCREW
-
609343-05503 HOSE, VALVE TO CANISTERHOSE, VALVE TO CANISTER
-
709401-11413 CLIPCLIP
-
844880-01D00 PLATE, CANISTER FITTINGPLATE, CANISTER FITTING
-
901570-06103 BOLTBOLT
-
1017210-01D00 CANISTERCANISTER
-
1109355-70125-600 HOSE, DRAIN (L:600->300)HOSE, DRAIN (L:600->300)
-
1209401-11407 CLIPCLIP
-
1309462-00073 BANDBAND
-
1409359-35751-600 HOSE, CANISTER TO CARBURETOR (L:600->400)HOSE, CANISTER TO CARBURETOR (L:600->400)
-
1509401-06405 CLIP, CANISTERCLIP, CANISTER
-
1609401-08411 CLIP, CARBURETORCLIP, CARBURETOR
