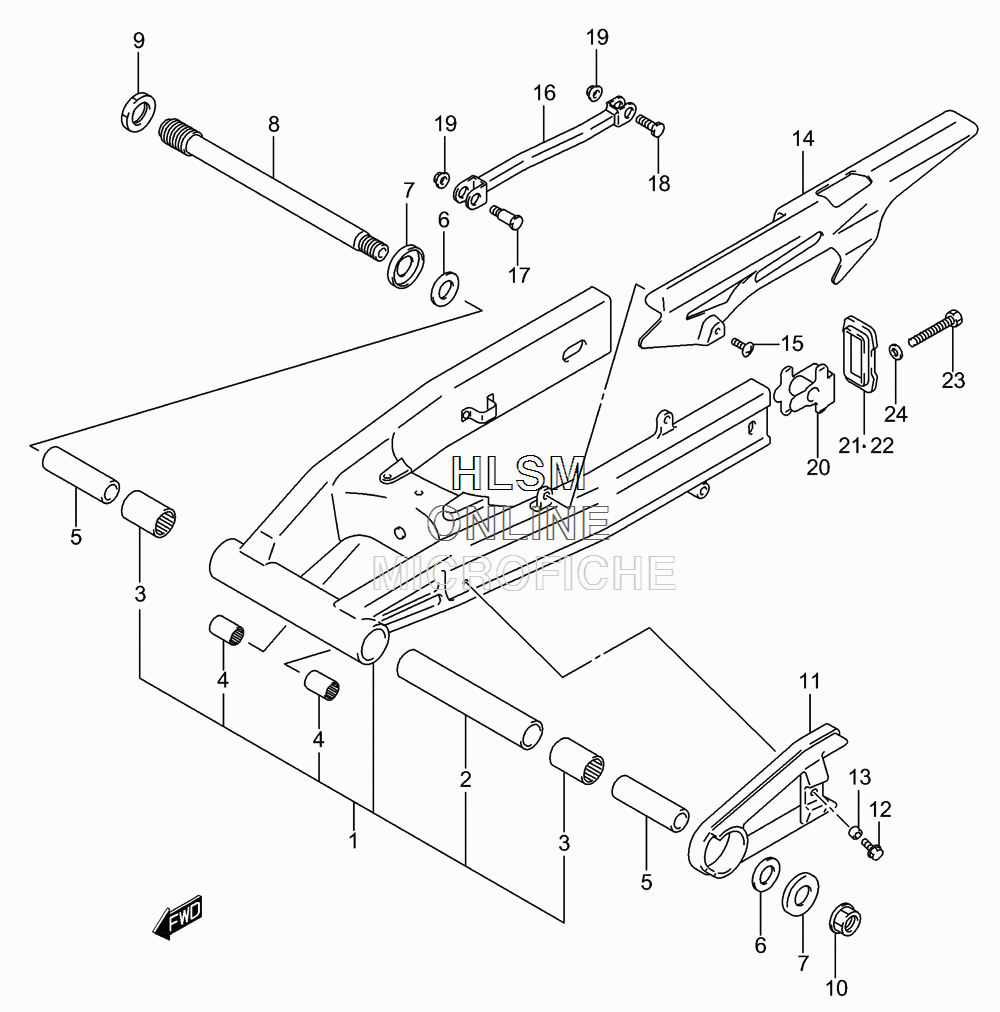

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki SV650S Y - 2000 года выпуска`
-
№АртикулНазвание
-
161000-19F01 SWINGING ARM ASSY, REAR (INC. 2-4)SWINGING ARM ASSY, REAR (INC. 2-4)
-
261281-19F00 SPACER, PIVOT CENTERSPACER, PIVOT CENTER
-
309263-25024 BEARING, PIVOT (25X33X30)BEARING, PIVOT (25X33X30)
-
409263-20071 BEARING, ROD (20X27X23.5)BEARING, ROD (20X27X23.5)
-
561251-21E00 SPACER, PIVOTSPACER, PIVOT
-
608211-20381 THRUST WASHERTHRUST WASHER
-
761262-17C00 DUST SEAL, PIVOTDUST SEAL, PIVOT
-
861211-19F00 SHAFT, PIVOTSHAFT, PIVOT
-
961214-19F00 NUT, PIVOT BOLTNUT, PIVOT BOLT
-
1008319-31188 NUTNUT
-
1161273-19F00 BUFFER, CHAIN TUCH DEFENSEBUFFER, CHAIN TUCH DEFENSE
-
1209116-06152 BOLT (6X20)BOLT (6X20)
-
1309180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1461310-19F00 CASE, CHAINCASE, CHAIN
-
1509139-06083 SCREW (6X16)SCREW (6X16)
-
1664310-19F00 TORQUE LINK, REARTORQUE LINK, REAR
-
1709111-10051 BOLT, FRONT (10X39)BOLT, FRONT (10X39)
-
1809100-10187 BOLT, REAR (10X34)BOLT, REAR (10X34)
-
1908319-31107 NUTNUT
-
2061410-33D00 ADJUSTER, CHAINADJUSTER, CHAIN
-
2161421-33D01 PLATE, ADJUSTER GUIDE RIGHT HANDPLATE, ADJUSTER GUIDE RIGHT HAND
-
2261422-33D01 PLATE, ADJUSTER GUIDE LEFT HANDPLATE, ADJUSTER GUIDE LEFT HAND
-
2309106-08119 BOLT (8X50)BOLT (8X50)
-
2409164-08015 WASHERWASHER
