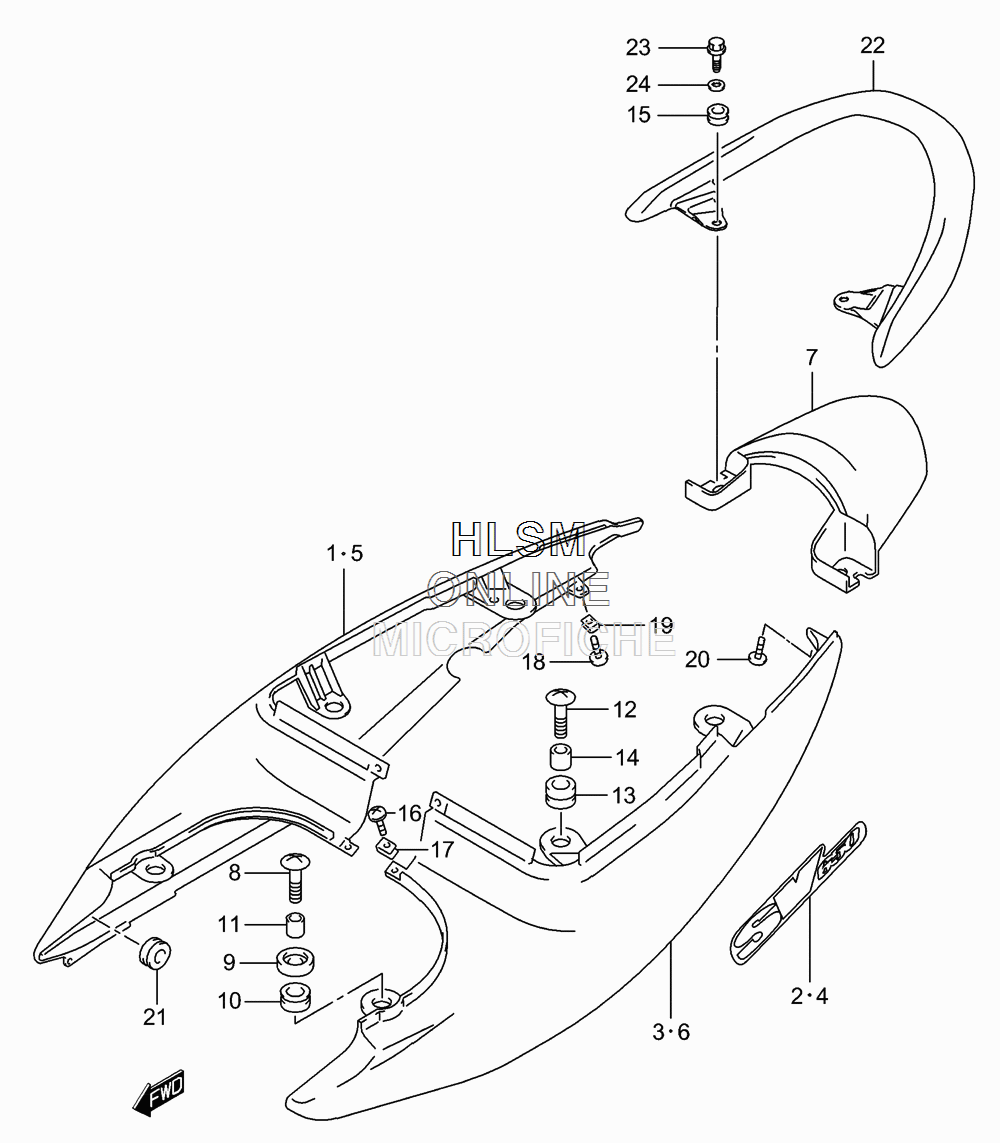

SEAT TAIL COVER для Suzuki SV650S Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    45501-20F00-YC2 COVER, SEAT TAIL RIGHT HAND (BLUE) FOR YC2
    COVER, SEAT TAIL RIGHT HAND (BLUE) FOR YC2
  • 1
    45501-20F00-Z7X COVER, SEAT TAIL RIGHT HAND (RED) (INC. 2) FOR Y7M
    COVER, SEAT TAIL RIGHT HAND (RED) (INC. 2) FOR Y7M
  • 2
    68165-20F00-N9W EMBLEM, TAIL COVER FORYC2
    EMBLEM, TAIL COVER FORYC2
  • 2
    68165-20F00-N9V EMBLEM, TAIL COVER FOR Z7X
    EMBLEM, TAIL COVER FOR Z7X
  • 3
    45502-20F00-YC2 COVER, SEAT TAIL LEFT HAND (BLUE) FOR YC2
    COVER, SEAT TAIL LEFT HAND (BLUE) FOR YC2
  • 3
    45502-20F00-Z7X C0VER, SEAT TAIL LEFT HAND (RED) (INC. 4) FOR Y7M
    C0VER, SEAT TAIL LEFT HAND (RED) (INC. 4) FOR Y7M
  • 4
    68165-20F00-N9W EMBLEM, TAIL COVER FOR YC2
    EMBLEM, TAIL COVER FOR YC2
  • 4
    68165-20F00-N9V EMBLEM, TAIL COVER FOR Z7X
    EMBLEM, TAIL COVER FOR Z7X
  • 5
    45501-19F10-YC2 COVER, SEAT TAIL RIGHT HAND (BLUE) (CAN. ONLY)
    COVER, SEAT TAIL RIGHT HAND (BLUE) (CAN. ONLY)
  • 5
    45501-19F10-Y9F COVER, SEAT TAIL RIGHT HAND (YELLOW) (CAN. ONLY)
    COVER, SEAT TAIL RIGHT HAND (YELLOW) (CAN. ONLY)
  • 6
    45502-19F10-YC2 COVER, SEAT TAIL LEFT HAND (BLUE) (CAN. ONLY)
    COVER, SEAT TAIL LEFT HAND (BLUE) (CAN. ONLY)
  • 6
    45502-19F10-Y9F COVER, SEAT TAIL LEFT HAND (YELLOW) (CAN. ONLY)
    COVER, SEAT TAIL LEFT HAND (YELLOW) (CAN. ONLY)
  • 7
    45503-19F50-35W COVER, SEAT TAIL CENTER (GRAY) FOR YC2, Y7M, Y9F
    COVER, SEAT TAIL CENTER (GRAY) FOR YC2, Y7M, Y9F
  • 8
    09136-06083 SCREW, FRONT (6X30)
    SCREW, FRONT (6X30)
  • 9
    47116-19F00 CUSHION, FR UPPER (10X28X13)
    CUSHION, FR UPPER (10X28X13)
  • 10
    47115-19F00 CUSHION, FR LOWER (10X22X15)
    CUSHION, FR LOWER (10X22X15)
  • 11
    09180-06294 SPACER (6.5X10X15.70)
    SPACER (6.5X10X15.70)
  • 12
    09136-06105 SCREW, CENTER (6X20)
    SCREW, CENTER (6X20)
  • 13
    09320-10045 CUSHION (10X28X19)
    CUSHION (10X28X19)
  • 14
    09180-06286 SPACER (6.5X10X9.4)
    SPACER (6.5X10X9.4)
  • 15
    47115-05F00 CUSHION, REAR (15X28X12)
    CUSHION, REAR (15X28X12)
  • 16
    03241-15123 SCREW
    SCREW
  • 17
    09148-05038 NUT
    NUT
  • 18
    03241-15123 SCREW
    SCREW
  • 19
    09148-05038 NUT
    NUT
  • 20
    03242-04103 SCREW
    SCREW
  • 21
    09320-08018 CUSHION (8X26X7)
    CUSHION (8X26X7)
  • 22
    46210-19F50-291 HANDLE, PILLION RIDER (BLACK)
    HANDLE, PILLION RIDER (BLACK)
  • 23
    01551-08253 BOLT
    BOLT
  • 24
    09160-08126 WASHER
    WASHER
