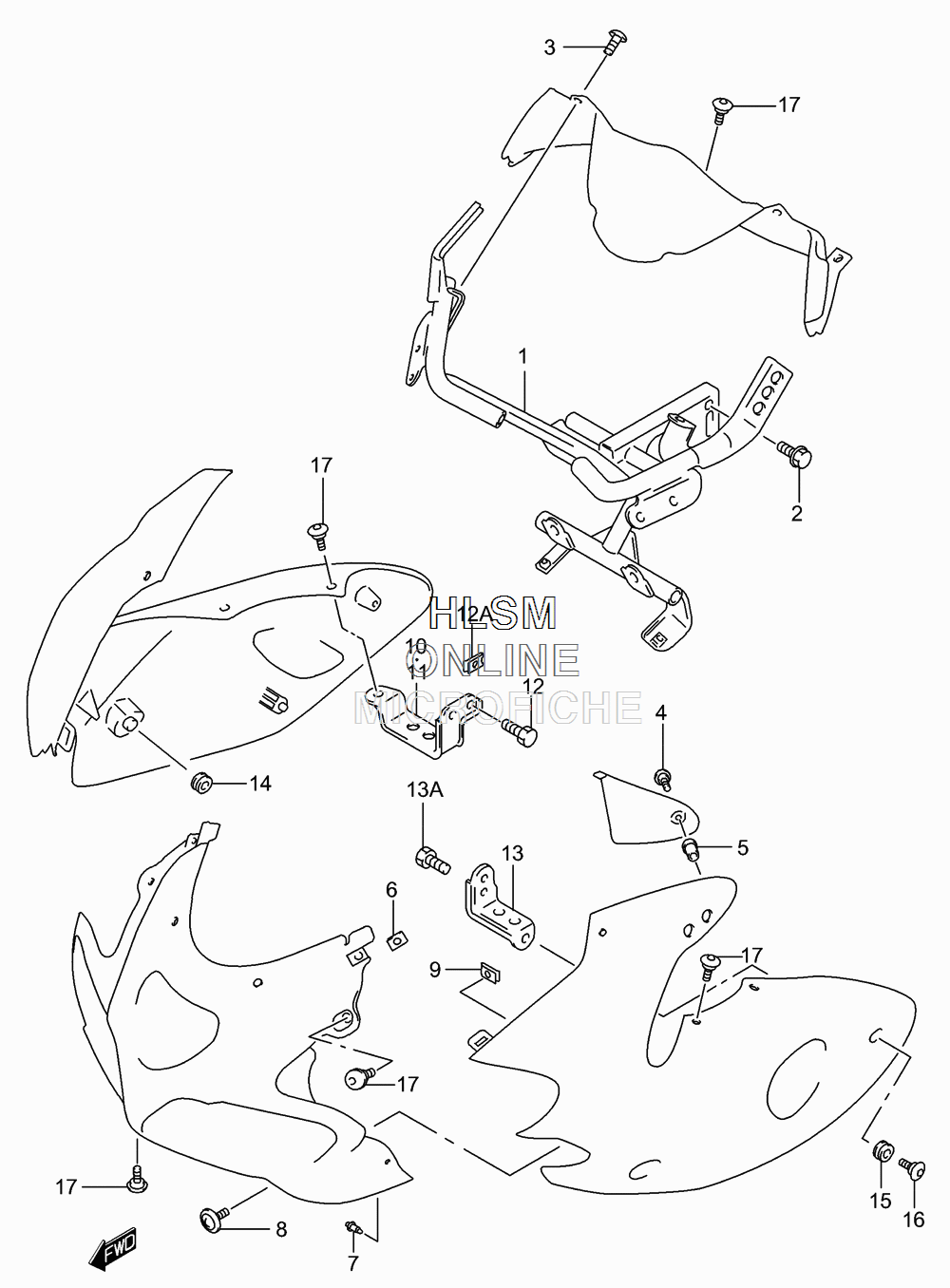

COWLING INSTALATION PARTS для Suzuki SV650S Y - 2000 года выпуска`
-
№АртикулНазвание
-
194510-19F00 BRACE, COWLINGBRACE, COWLING
-
201550-08303 BOLTBOLT
-
302142-05123 SCREWSCREW
-
402142-05203 SCREWSCREW
-
509159-05019 NUTNUT
-
694484-24F00 NUT, COWLINGNUT, COWLING
-
709409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
803241-15163 SCREWSCREW
-
909148-05038 NUTNUT
-
1094521-19F00 BRACKET, SIDE UPPER RIGHT HANDBRACKET, SIDE UPPER RIGHT HAND
-
1194531-19F00 BRACKET, SIDE UPPER LEFT HANDBRACKET, SIDE UPPER LEFT HAND
-
1201500-06123 BOLT, UPPERBOLT, UPPER
-
1394541-19F00 BRACKET, SIDE REAR LEFT HANDBRACKET, SIDE REAR LEFT HAND
-
13A01500-06163 BOLT, SIDE REARBOLT, SIDE REAR
-
1409320-08018 CUSHION (8X26X7)CUSHION (8X26X7)
-
1509320-09016 CUSHIONCUSHION
-
1609139-06087 SCREW (M6X20)SCREW (M6X20)
-
1709139-05054 SCREW (M5X16)SCREW (M5X16)
