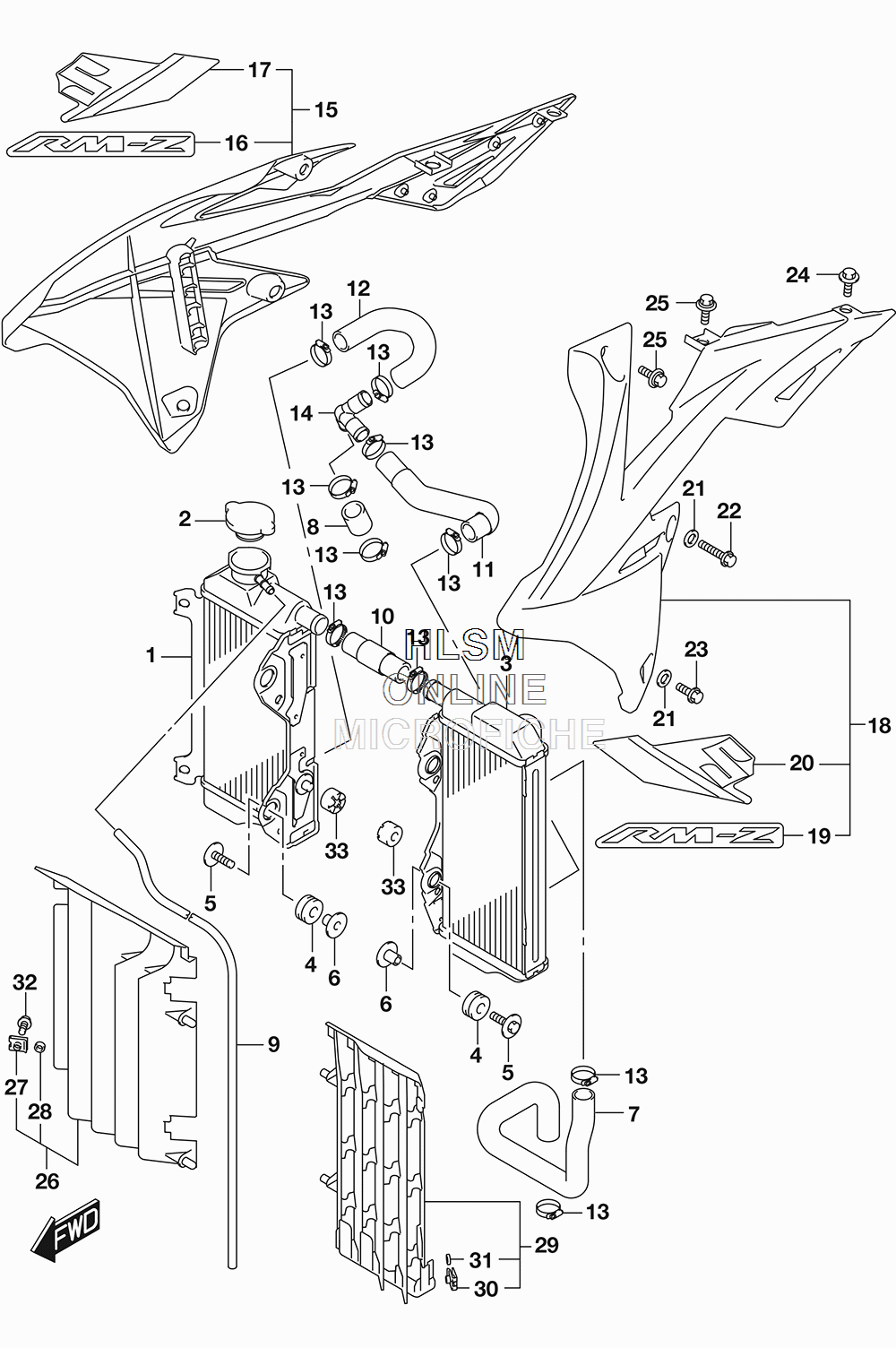

RADIATOR для Suzuki RM-Z450L8 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    17710-37K00 RADIATOR, (RH)
    RADIATOR, (RH)
  • 2
    17730-14G00 CAP, RADIATOR
    CAP, RADIATOR
  • 3
    17720-37K00 RADIATOR, (LH)
    RADIATOR, (LH)
  • 4
    17787-19A10 CUSHION, RADIATOR SUPPORT
    CUSHION, RADIATOR SUPPORT
  • 5
    09116-06186 BOLT (6X25)
    BOLT (6X25)
  • 6
    09180-06243 SPACER (6.5X10.5X14.1)
    SPACER (6.5X10.5X14.1)
  • 7
    17851-37K00 HOSE, RADIATOR INLET
    HOSE, RADIATOR INLET
  • 8
    17852-37K00 HOSE, RADIATOR OUTLET
    HOSE, RADIATOR OUTLET
  • 9
    09351-50801-00A HOSE (5X8X1000) (L:1000->700)
    HOSE (5X8X1000) (L:1000->700)
  • 10
    17853-37K00 HOSE, RADIATOR JOINT UPPER
    HOSE, RADIATOR JOINT UPPER
  • 11
    17854-37K00 HOSE, RADIATOR JOINT LOWER NO.1
    HOSE, RADIATOR JOINT LOWER NO.1
  • 12
    17855-37K00 HOSE, RADIATOR JOINT LOWER NO.2
    HOSE, RADIATOR JOINT LOWER NO.2
  • 13
    09402-28513 CLAMP
    CLAMP
  • 14
    17857-37K00 JOINT, RADIATOR OUTLET HOSE
    JOINT, RADIATOR OUTLET HOSE
  • 15
    47207-37K00-GY8 COVER ASSY, RADIATOR (RH) (GY8 - YELLOW/BLACK)
    COVER ASSY, RADIATOR (RH) (GY8 - YELLOW/BLACK)
  • 16
    68666-37K00-BLC ...EMBLEM, "RM-Z" (BLC - WHITE/ORANGE)
    ...EMBLEM, "RM-Z" (BLC - WHITE/ORANGE)
  • 17
    68115-37K00-BLB ...TAPE, RADIATOR COVER (RH) (BLB - BLUE/WHITE/ORANGE/YELLOW)
    ...TAPE, RADIATOR COVER (RH) (BLB - BLUE/WHITE/ORANGE/YELLOW)
  • 18
    47208-37K00-GY8 COVER ASSY, RADIATOR (LH) (GY8 - YELLOW/BLACK)
    COVER ASSY, RADIATOR (LH) (GY8 - YELLOW/BLACK)
  • 19
    68666-37K00-BLC ...EMBLEM, "RM-Z" (BLC - WHITE/ORANGE)
    ...EMBLEM, "RM-Z" (BLC - WHITE/ORANGE)
  • 20
    68125-37K00-BLB ...TAPE, RADIATOR COVER (LH) (BLB - BLUE/WHITE/ORANGE/YELLOW)
    ...TAPE, RADIATOR COVER (LH) (BLB - BLUE/WHITE/ORANGE/YELLOW)
  • 21
    47192-37K00 WASHER, RADIATOR COVER
    WASHER, RADIATOR COVER
  • 22
    47256-37K00 BOLT, RADIATOR COVER
    BOLT, RADIATOR COVER
  • 23
    47255-37K00 BOLT, RADIATOR COVER LOWER
    BOLT, RADIATOR COVER LOWER
  • 24
    09111-06251 BOLT, RADIATOR COVER REAR
    BOLT, RADIATOR COVER REAR
  • 25
    09116-06221 BOLT (6X12)
    BOLT (6X12)
  • 26
    17801-37K00 LOUVER, RADIATOR (RH)
    LOUVER, RADIATOR (RH)
  • 27
    09148-06017 ...NUT
    ...NUT
  • 28
    09180-06129 ...SPACER (6.2X10X2.2)
    ...SPACER (6.2X10X2.2)
  • 29
    17802-37K00 LOUVER, RADIATOR (LH)
    LOUVER, RADIATOR (LH)
  • 30
    09148-06017 ...NUT
    ...NUT
  • 31
    09180-06129 ...SPACER (6.2X10X2.2)
    ...SPACER (6.2X10X2.2)
  • 32
    01547-0610A BOLT
    BOLT
  • 33
    17787-37K00 CUSHION, RDTR
    CUSHION, RDTR
