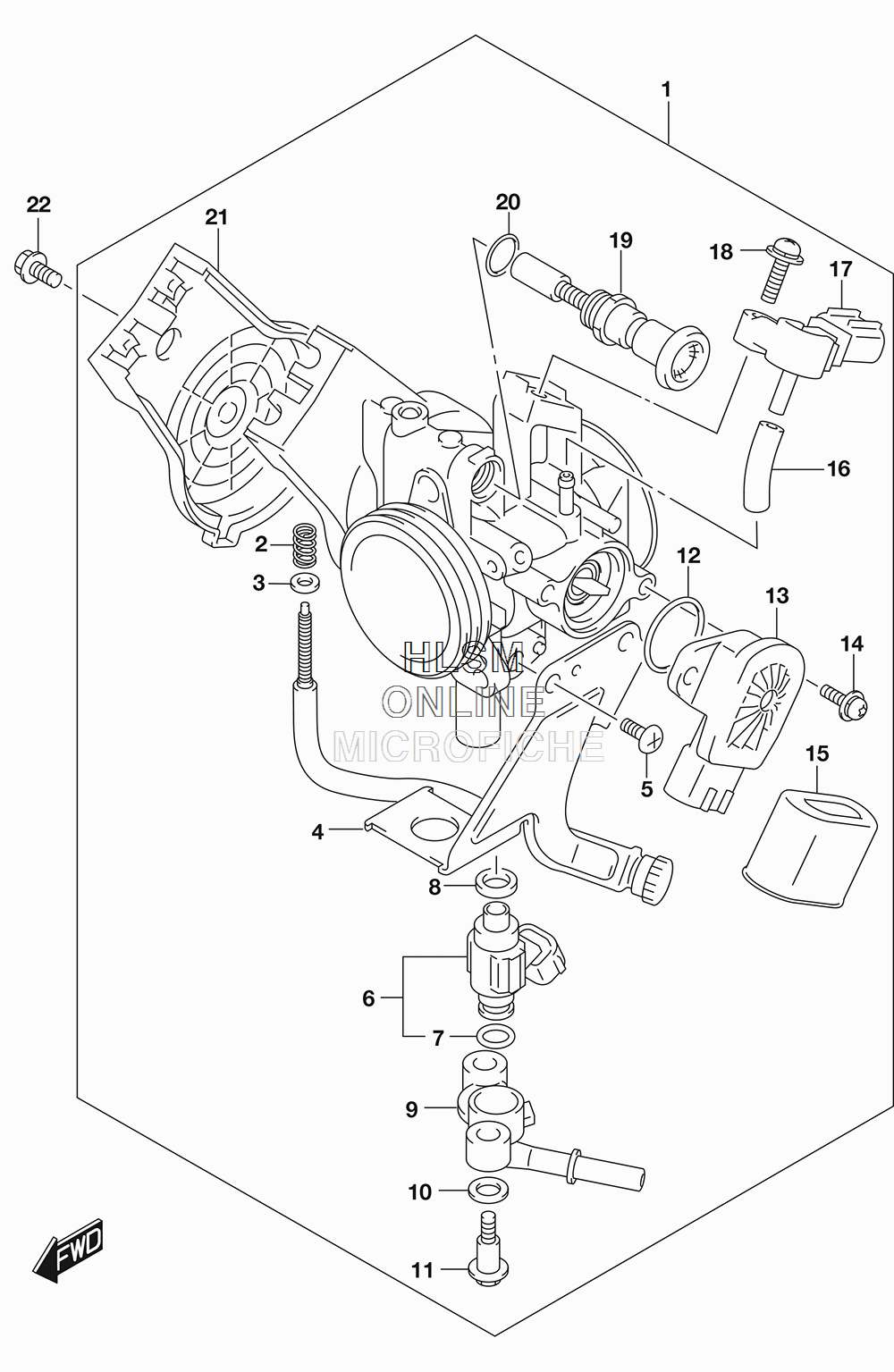

CARBURETOR - THROTTLE BODY ASSY. для Suzuki RM-Z450L8 - 2018 года выпуска

№

Артикул

Название
1

13041-37K00 BODY ASSY, THROTTLE

BODY ASSY, THROTTLE
2

13271-96110 ...SPRING

...SPRING
3

13615-43010 ...WASHER

...WASHER
4

13270-37K00 ...ADJUSTER SCREW ASSY

...ADJUSTER SCREW ASSY
5

13602-02F00 ...SCREW

...SCREW
6

15710-37K00 ...INJECTOR ASSY

...INJECTOR ASSY
7

15717-58B00 ......O RING

......O RING
8

15722-14J00 ...SEAL

...SEAL
9

13731-37K00 ...DELIVERY PIPE

...DELIVERY PIPE
10

13602-29G00 ...PACKING

...PACKING
11

13601-11J00 ...SCREW

...SCREW
12

15731-37K00 ...O RING

...O RING
13

13580-37K00 ...SENSOR ASSY

...SENSOR ASSY
14

13605-37K00 ...SCREW

...SCREW
15

13589-37K00 ...COVER

...COVER
16

13683-10F60 ...HOSE

...HOSE
17

18590-18K00 ...SENSOR,BOOST

...SENSOR,BOOST
18

13437-14J00 ...SCREW

...SCREW
19

13411-37K00 ...PLUNGER ASSY

...PLUNGER ASSY
20

13278-47090 ...O RING

...O RING
21

13484-37K00 ...COVER, THROTTLE

...COVER, THROTTLE
22

13601-37K00 SCREW, THROTTLE COVER

SCREW, THROTTLE COVER
