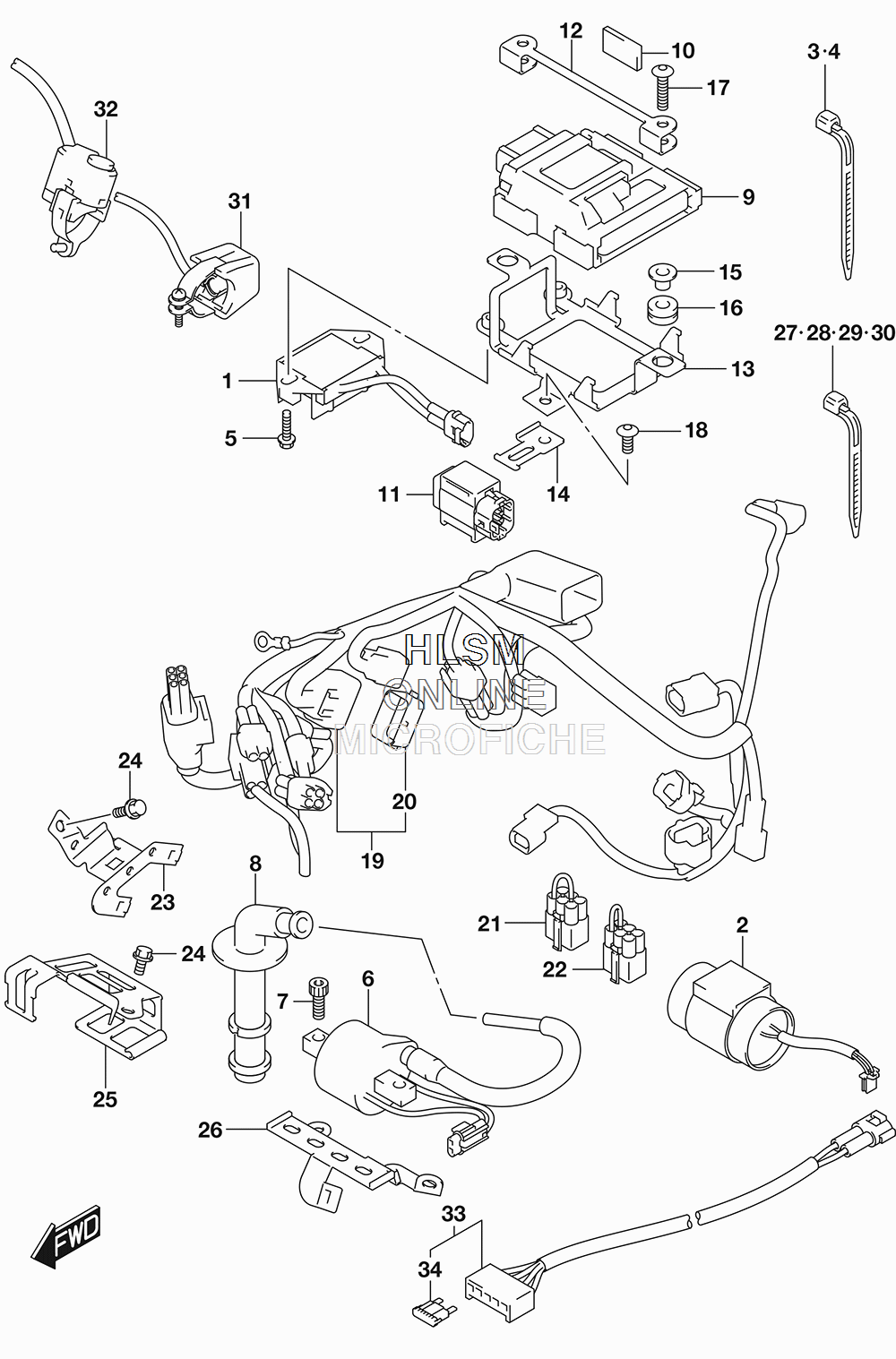

ELECTRICAL (EXCEPT CALIF.) для Suzuki RM-Z450L8 - 2018 года выпуска`
-
№АртикулНазвание
-
132800-28H00 RECTIFIER ASSYRECTIFIER ASSY
-
233640-28H00 CONDENSER ASSYCONDENSER ASSY
-
309407-19401 CLAMP (L:190)CLAMP (L:190)
-
409407-25401 CLAMP (L:235)CLAMP (L:235)
-
501547-0620A BOLTBOLT
-
633410-28H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
709160-06141 BOLT (L:22)BOLT (L:22)
-
833510-28H00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
932920-37K00 CONTROL UNIT, FICONTROL UNIT, FI
-
1032980-37K00 CUSHIONCUSHION
-
1133960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1232931-37K00 BRACKET, FI CONTROL UNIT UPPERBRACKET, FI CONTROL UNIT UPPER
-
1332932-37K00 BRACKET, FI CONTROL UNIT LOWERBRACKET, FI CONTROL UNIT LOWER
-
1433961-37K00 BRACKET, FUEL CUT SENSORBRACKET, FUEL CUT SENSOR
-
1509180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
1609320-08501 CUSHIONCUSHION
-
1709139-06196 BOLTBOLT
-
1809139-06215 SCREWSCREW
-
1936610-37K00 HARNESS, WIRINGHARNESS, WIRING
-
2036654-46H00 ...CAP, TS...CAP, TS
-
2136852-28H00 WIRE, SHORTWIRE, SHORT
-
2236852-49H00 WIRE, SHORTWIRE, SHORT
-
2336670-37K10 BRACKET, COUPLERBRACKET, COUPLER
-
2401547-0610A BOLTBOLT
-
2536672-37K10 BRACKET, COUPLERBRACKET, COUPLER
-
2636672-37K30 BRACKET, COUPLERBRACKET, COUPLER
-
2709407-11401 CLAMP (L:95)CLAMP (L:95)
-
2809407-10404 CLAMP (L:100)CLAMP (L:100)
-
2909407-14403 CLAMP (L:125)CLAMP (L:125)
-
3009407-17403 CLAMP (L:154)CLAMP (L:154)
-
3137820-36E00 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
3237820-37K00 SWITCH ASSY, LAUNCH CONTROLSWITCH ASSY, LAUNCH CONTROL
-
3336890-28H00 WIRE, BATTERY (OPT)WIRE, BATTERY (OPT)
-
3409481-10101 ...FUSE (10A) (OPT)...FUSE (10A) (OPT)
