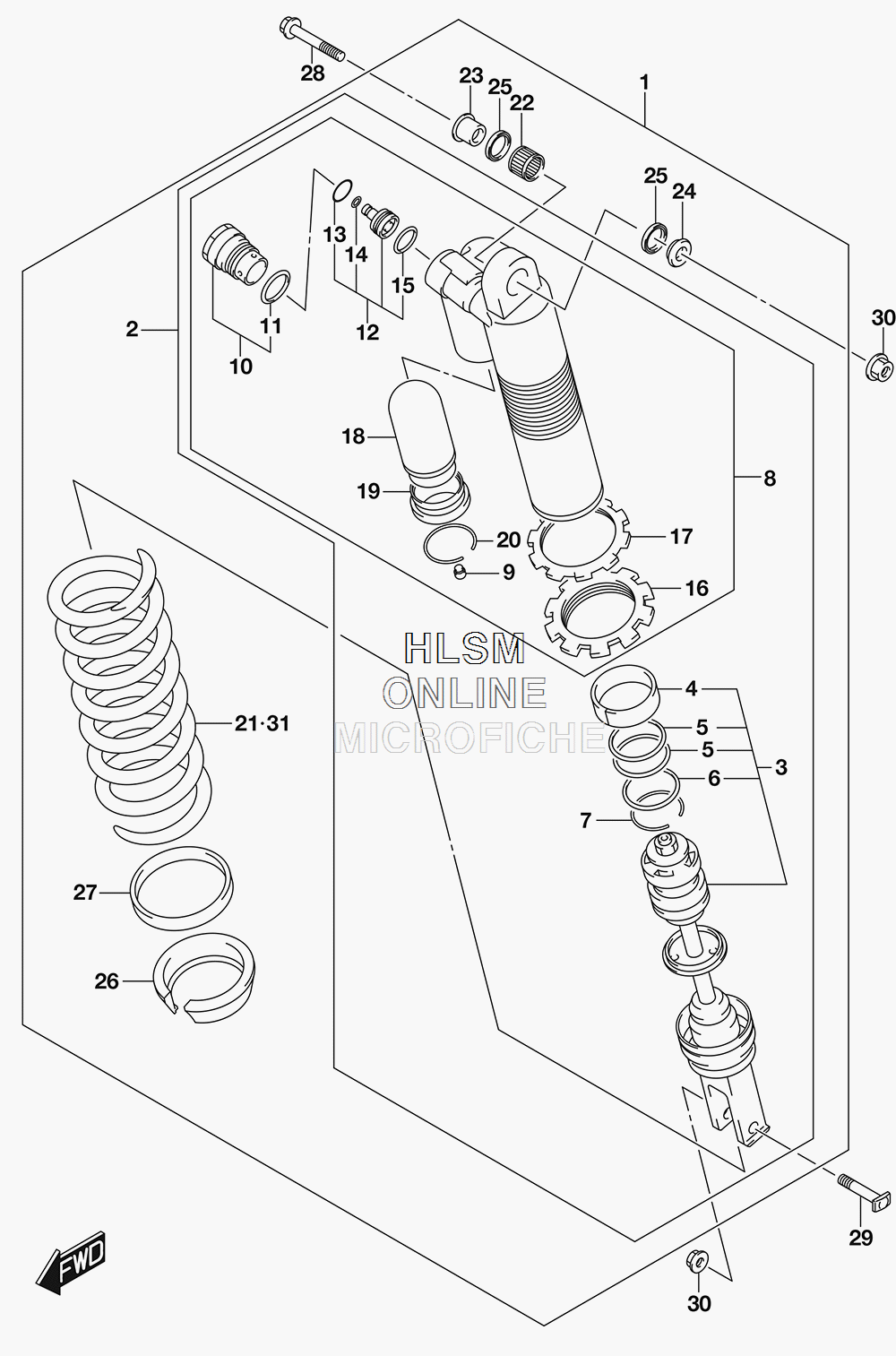

SUSPENSION - SHOCKS REAR для Suzuki RM-Z250L7 - 2017 года выпуска
-
№АртикулНазвание
-
162100-49HF0-019 ABSORBER ASSY,RR SHOCK (019 - BLACK)ABSORBER ASSY,RR SHOCK (019 - BLACK)
-
262210-49HF0 ...DAMPER ASSY...DAMPER ASSY
-
362120-49HE0 ......ROD SUBASSY, PISTON......ROD SUBASSY, PISTON
-
462131-49HE0 .......RING, PISTON.......RING, PISTON
-
562152-49HE0 .......O RING.......O RING
-
662153-49HE0 .......O RING.......O RING
-
762279-49HE0 ......RING, STOP......RING, STOP
-
862160-49HE0 ......CYLINDER......CYLINDER
-
951294-40400 .......CAP, VALVE AIR.......CAP, VALVE AIR
-
1062130-49HE0 .......VALVE ASSY.......VALVE ASSY
-
1162133-49HE0 ........O RING........O RING
-
1262170-49HE0 .......VALVE, COMP.......VALVE, COMP
-
1362135-49HE0 ........WASHER........WASHER
-
1462136-49HE0 ........O RING........O RING
-
1562134-49HE0 ........O RING........O RING
-
1662191-49HE0 .......GUIDE, SPRING.......GUIDE, SPRING
-
1762194-49HE0 .......NUT.......NUT
-
1862273-49HE0 .......BLADER.......BLADER
-
1962275-49HE0 .......GUIDE.......GUIDE
-
2062277-49HE0 .......RING, STOP.......RING, STOP
-
2162211-49HE0 ...SPRING (STD K=5.5)...SPRING (STD K=5.5)
-
2209263-16033 ...BEARING (16X22X12)...BEARING (16X22X12)
-
2362684-36F00 ...SPACER, UPPER BEARING (RH)...SPACER, UPPER BEARING (RH)
-
2462685-36F00 ...SPACER, UPPER BEARING (LH)...SPACER, UPPER BEARING (LH)
-
2509284-16005 ...OIL SEAL (16X22X2.5)...OIL SEAL (16X22X2.5)
-
2662222-49HE0 ...GUIDE SPRING...GUIDE SPRING
-
2762221-49HE0 ...GUIDE SPRING...GUIDE SPRING
-
2862311-28H00 BOLT, RR SHOCK ABSORBER UPPERBOLT, RR SHOCK ABSORBER UPPER
-
2962221-37F30 BOLT, RR SHOCK ABSORBER LOWERBOLT, RR SHOCK ABSORBER LOWER
-
3009159-10067 NUTNUT
-
31-162211-49HG0 SPRING, REAR (SOFT K=5.3) (OPT)SPRING, REAR (SOFT K=5.3) (OPT)
-
31-262211-49HH0 SPRING, REAR (HARD K=5.7) (OPT)SPRING, REAR (HARD K=5.7) (OPT)
-
31-362211-49HJ0 SPRING, REAR (HARD K=5.9) (OPT)SPRING, REAR (HARD K=5.9) (OPT)
