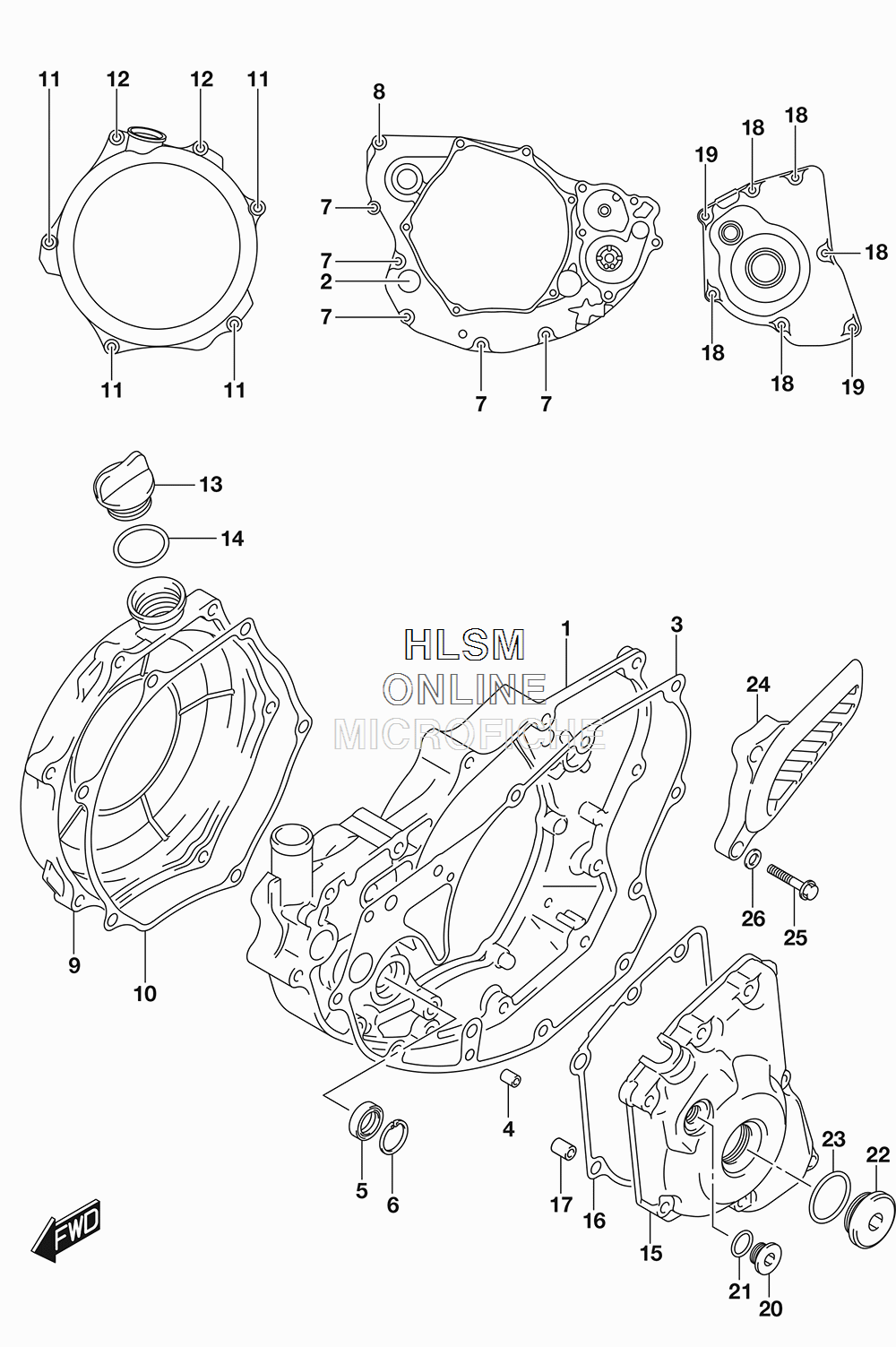

CRANKCASE COVER для Suzuki RM-Z250L7 - 2017 года выпуска`
-
№АртикулНазвание
-
111340-49H00 COVER, CLUTCHCOVER, CLUTCH
-
211971-45010 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
311482-49H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-09109 PINPIN
-
509282-12012 OIL SEAL (12X22X6)OIL SEAL (12X22X6)
-
608331-41249 CIRCLIPCIRCLIP
-
701547-0625A BOLTBOLT
-
801547-0630A BOLTBOLT
-
911371-10H10 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
1011484-10H00 GASKET, CLUTCH COVER OUTERGASKET, CLUTCH COVER OUTER
-
1101547-0625A BOLTBOLT
-
1201547-0665A BOLTBOLT
-
1309259-20008-XC0 PLUGPLUG
-
1409280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1511351-49H00 COVER, MAGNETOCOVER, MAGNETO
-
1611483-49H00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1704211-09109 PINPIN
-
1801547-0630A BOLTBOLT
-
1901547-0635A BOLTBOLT
-
2009248-12007 PLUG (12X9)PLUG (12X9)
-
2109280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
2209259-26011 PLUG (26X9)PLUG (26X9)
-
2309280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
2411360-35G00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2501547-0630A BOLTBOLT
-
2608322-0106A WASHERWASHER
