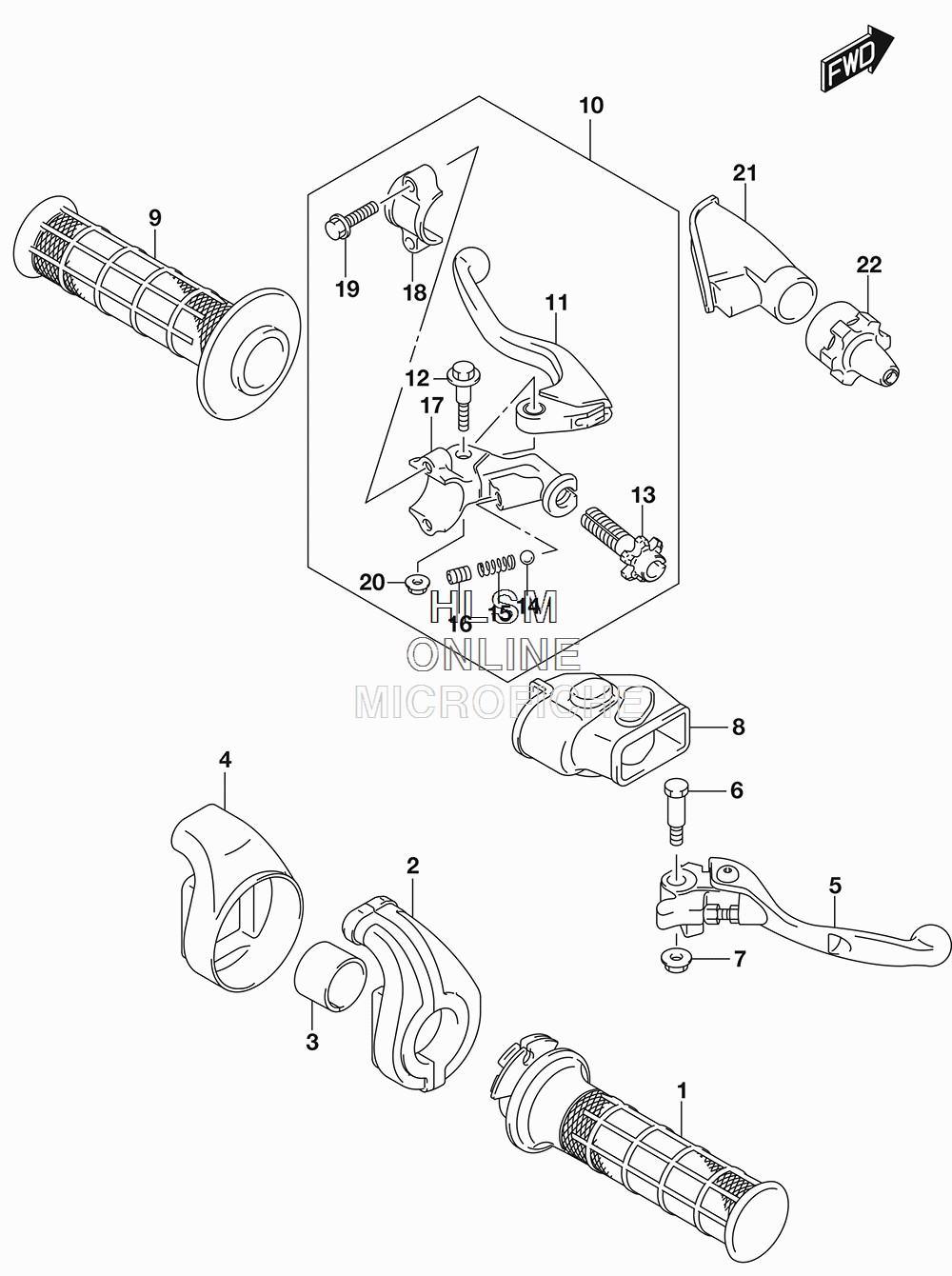

HANDLE LEVER для Suzuki RM-Z250L7 - 2017 года выпуска
-
№АртикулНазвание
-
157110-10H10 GRIP, THROTTLEGRIP, THROTTLE
-
257100-10H00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357151-35G00 COLLAR, THROTTLE CASECOLLAR, THROTTLE CASE
-
457129-35G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
557310-37F00 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
657431-14500 BOLTBOLT
-
708316-1006A NUTNUT
-
857343-35G00 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
957211-28H00 GRIP, LHGRIP, LH
-
1057500-35G30 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1157621-35G10 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1257431-35G00 ...BOLT...BOLT
-
1357441-37F00 ...ADJUSTER, CLUTCH CABLE...ADJUSTER, CLUTCH CABLE
-
1406111-06003 ...BALL...BALL
-
1509440-04010 ...SPRING...SPRING
-
1609134-06009 ...SCREW (6X8)...SCREW (6X8)
-
1757511-35G00 ...HOLDER, CLUTCH LEVER...HOLDER, CLUTCH LEVER
-
1857512-28C00 ...BRACKET, CLUTCH LEVER HOLDER...BRACKET, CLUTCH LEVER HOLDER
-
1957513-29F10 ...BOLT...BOLT
-
2008310-00057 ...NUT...NUT
-
2157341-28H00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
-
2257342-37F00 COVER, CLUTCH ADJUSTERCOVER, CLUTCH ADJUSTER
