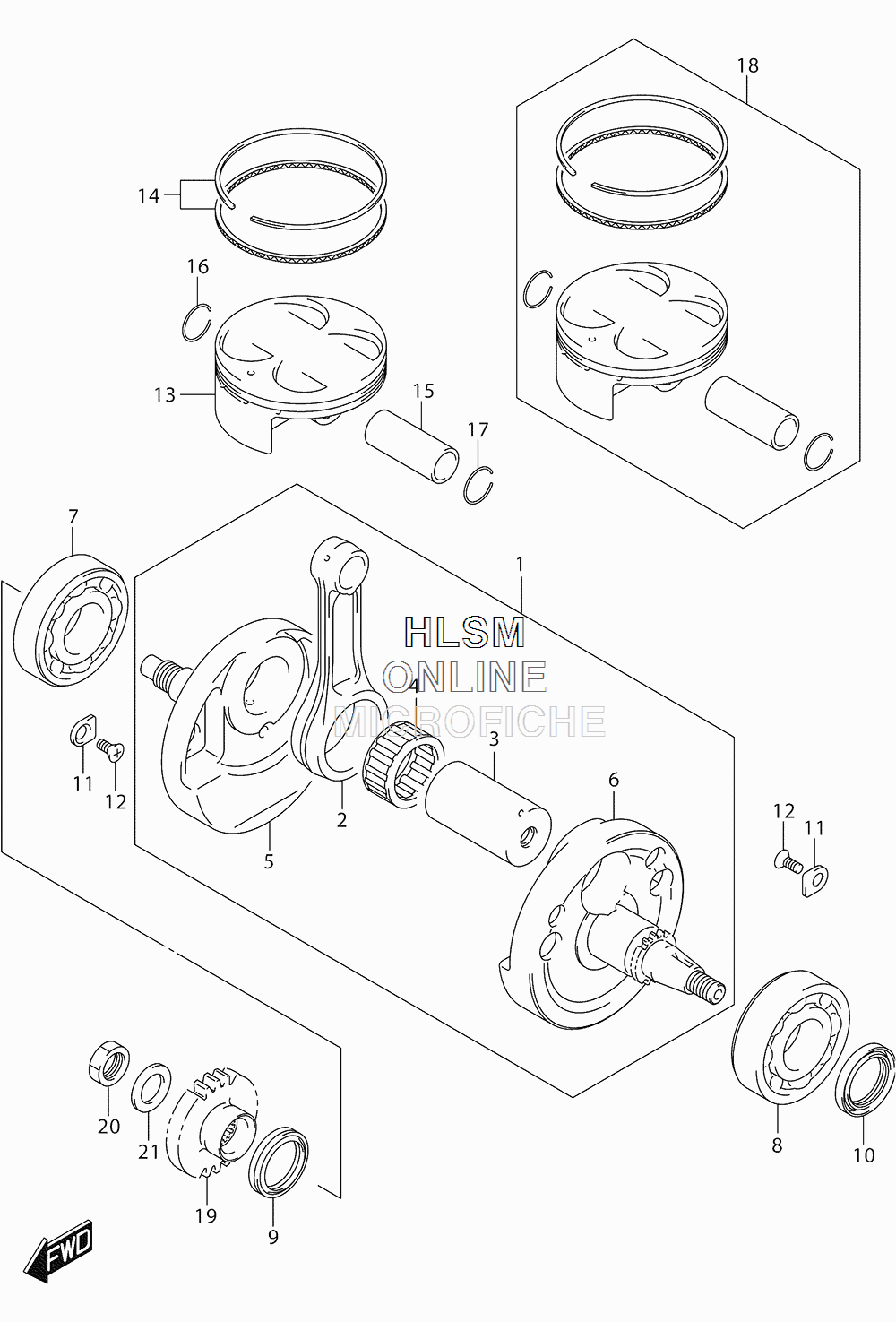

CRANKSHAFT W/ PISTON для Suzuki RM-Z450 [RMZ450] - 2016 года выпуска
-
№АртикулНазвание
-
112200-28H30 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-35G10-0B0 ...CONNROD...CONNROD
-
312210-28H00 ...PIN, CRANK...PIN, CRANK
-
409263-34014-0B0 ...BEARING (34X42X20)...BEARING (34X42X20)
-
512220-28H20 ...CRANKSHAFT, RH...CRANKSHAFT, RH
-
612261-28H20 ...CRANKSHAFT, LH...CRANKSHAFT, LH
-
709262-30115 BEARING (30X72X19) (RH)BEARING (30X72X19) (RH)
-
809262-32017 BEARING (32X75X20) (LH)BEARING (32X75X20) (LH)
-
909283-30061 OIL SEAL (30X40X7) (RH)OIL SEAL (30X40X7) (RH)
-
1009283-32037 OIL SEAL (32X47X6) (LH)OIL SEAL (32X47X6) (LH)
-
1124741-20A00 RETAINER, COUNTER BEARING, RHRETAINER, COUNTER BEARING, RH
-
1209126-06011 SCREW (6X12)SCREW (6X12)
-
1312111-28H30-0F0 PISTONPISTON
-
1412140-28820 RING SETRING SET
-
1512151-28H00 PIN, PISTONPIN, PISTON
-
1609381-19001 SNAP RINGSNAP RING
-
1709381-19005 CIRCLIPCIRCLIP
-
1812110-28840 PISTON KIT (OPT)PISTON KIT (OPT)
-
1921111-28H00 GEAR, PRIMARY DRIVE (NT:24)GEAR, PRIMARY DRIVE (NT:24)
-
2009140-16037 NUTNUT
-
2109164-16002 WASHERWASHER
