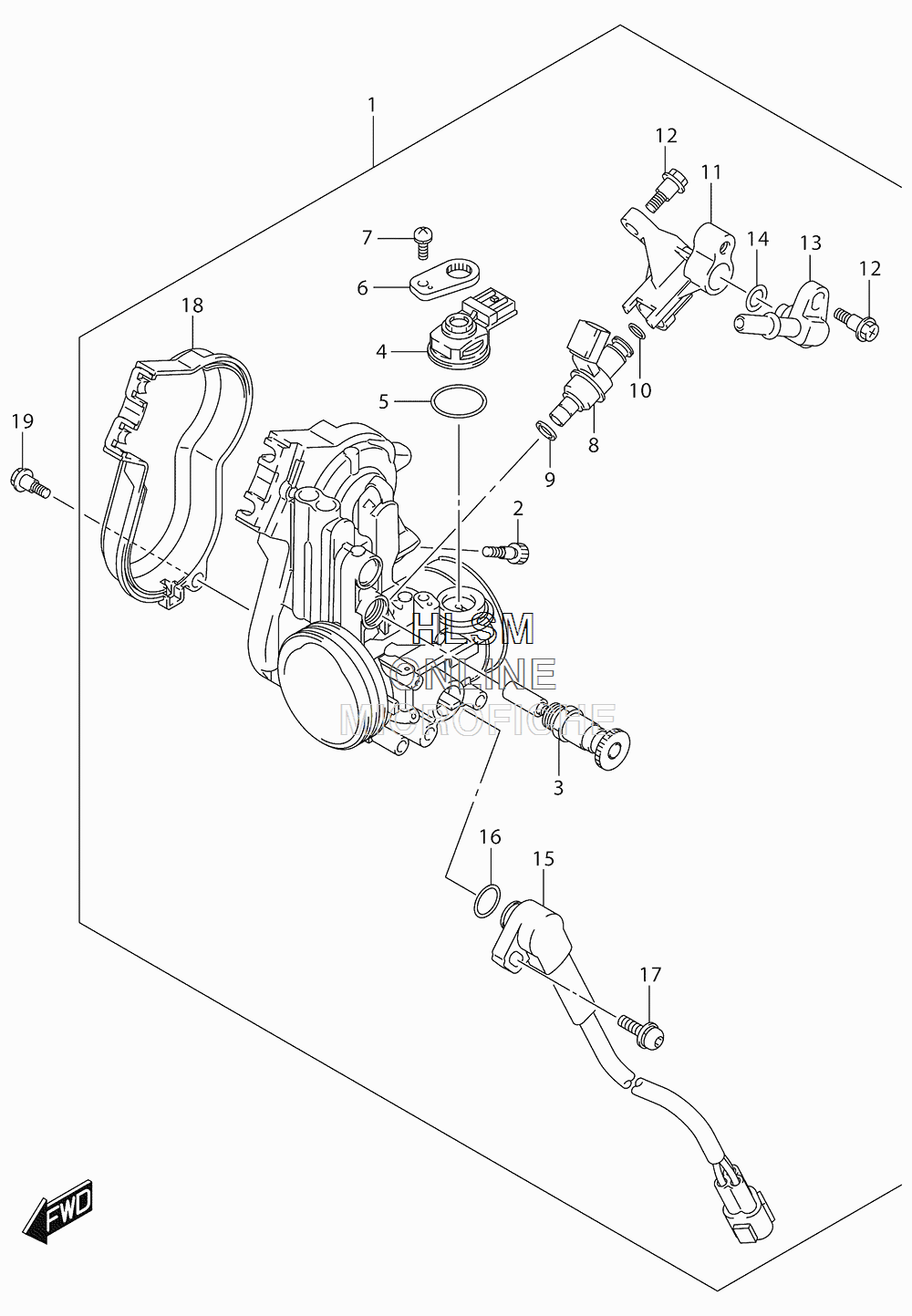

CARBURETOR - THROTTLE BODY для Suzuki RM-Z450 [RMZ450] - 2016 года выпуска
-
№АртикулНазвание
-
113041-28H50 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213296-28H00 ...SCREW, STOP...SCREW, STOP
-
313410-28H10 ...STARTER...STARTER
-
415620-05H00 ...SENSOR, MAP...SENSOR, MAP
-
515621-05H00 ...O RING...O RING
-
613565-28H10 ...PLATE, STAY...PLATE, STAY
-
713601-15F20 ...SCREW...SCREW
-
815710-02J00 ...INJECTOR ASSY...INJECTOR ASSY
-
915722-21H00 ...RING, SEAL...RING, SEAL
-
1015721-21H00 ...O RING...O RING
-
1113471-28H00 ...PIPE, FUEL...PIPE, FUEL
-
1213452-28H10 ...SCREW...SCREW
-
1313685-28H00 ...JOINT...JOINT
-
1415721-24F00 ...O RING...O RING
-
1513580-28H11 ...SENSOR ASSY, THROTTLE...SENSOR ASSY, THROTTLE
-
1613575-40F00 ...O RING...O RING
-
1713605-40F00 ...SCREW...SCREW
-
1813484-28H00 ...COVER...COVER
-
1913601-28H00 SCREWSCREW
