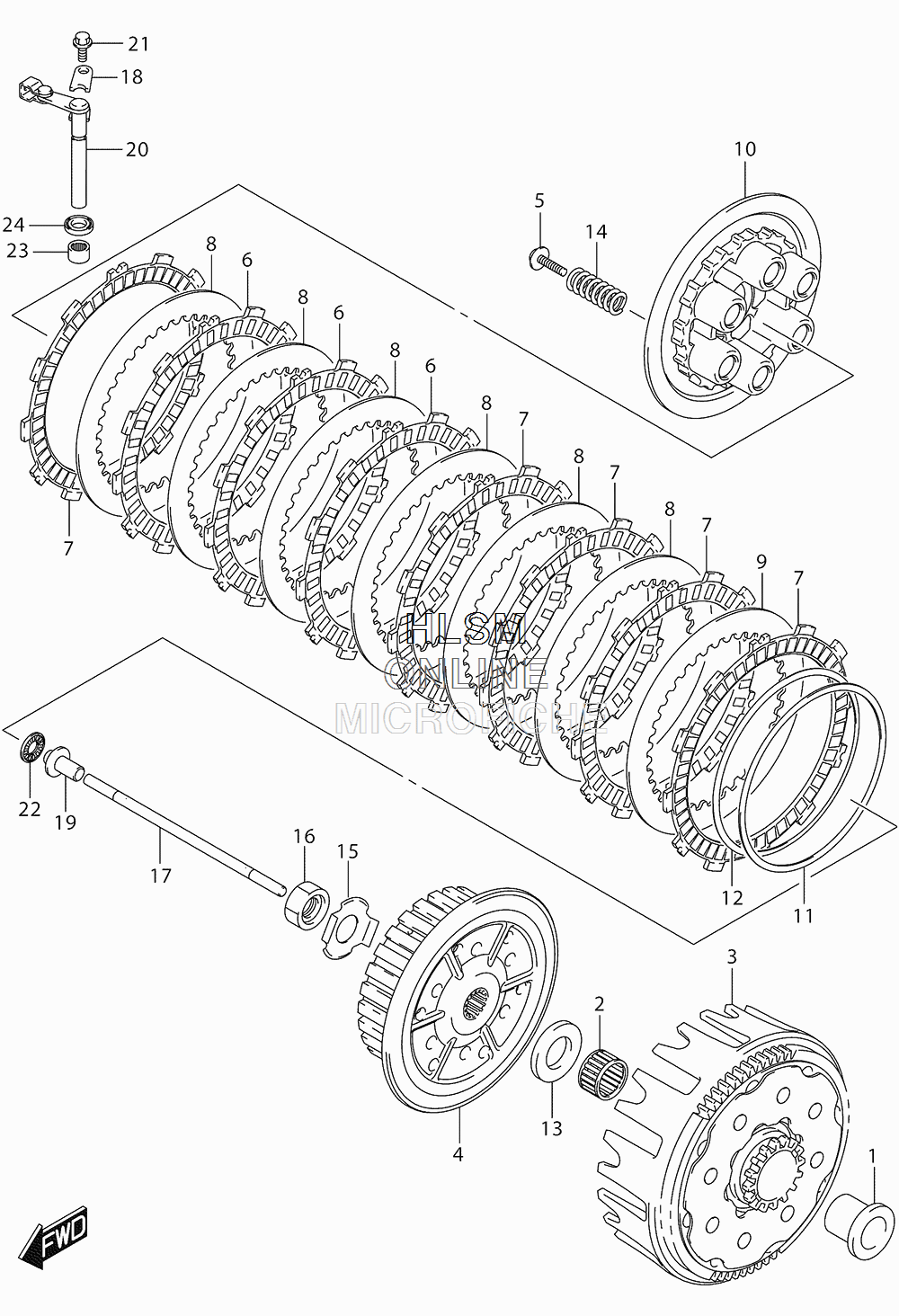

CLUTCH для Suzuki RM-Z450 [RMZ450] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    21251-28H00 SPACER, PRIMARY DRIVEN GEAR
    SPACER, PRIMARY DRIVEN GEAR
  • 2
    09263-28042 BEARING (28X32X26)
    BEARING (28X32X26)
  • 3
    21200-28H10 GEAR ASSY, PRIMARY DRIVEN (NT:16/63)
    GEAR ASSY, PRIMARY DRIVEN (NT:16/63)
  • 4
    21411-35G30 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21412-35G00 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 6
    21441-35G00 PLATE, CLUTCH DRIVE NO.1 (T:2.9) (T:2.9)
    PLATE, CLUTCH DRIVE NO.1 (T:2.9) (T:2.9)
  • 7
    21441-37F30 PLATE, CLUTCH DRIVE NO.2 (T:2.9) (T:2.9)
    PLATE, CLUTCH DRIVE NO.2 (T:2.9) (T:2.9)
  • 8
    21451-35G00 PLATE, CLUTCH DRIVEN (T:1.6) (T:1.6)
    PLATE, CLUTCH DRIVEN (T:1.6) (T:1.6)
  • 9
    21452-35G00 PLATE, CLUTCH DRIVEN (T:1.6) (T:1.6)
    PLATE, CLUTCH DRIVEN (T:1.6) (T:1.6)
  • 10
    21462-28H00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 11
    21471-28H00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 12
    21472-35G00 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 13
    09160-22082 WASHER (22.5X39X3)
    WASHER (22.5X39X3)
  • 14
    09440-18044 SPRING
    SPRING
  • 15
    21416-35G10 WASHER, CLUTCH SLEEVE HUB LOCK
    WASHER, CLUTCH SLEEVE HUB LOCK
  • 16
    09140-18017 NUT
    NUT
  • 17
    23110-28H00 ROD, CLUTCH PUSH
    ROD, CLUTCH PUSH
  • 18
    23117-28H00 RETAINER, CL RELEASE CAMSHAFT
    RETAINER, CL RELEASE CAMSHAFT
  • 19
    23121-37F00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 20
    23200-28H00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 21
    09103-06280 BOLT (6X12)
    BOLT (6X12)
  • 22
    09263-10002 BEARING (10X22X2.8)
    BEARING (10X22X2.8)
  • 23
    09263-10014 BEARING (10X14X10)
    BEARING (10X14X10)
  • 24
    09285-10004 OIL SEAL (10X17X5)
    OIL SEAL (10X17X5)
