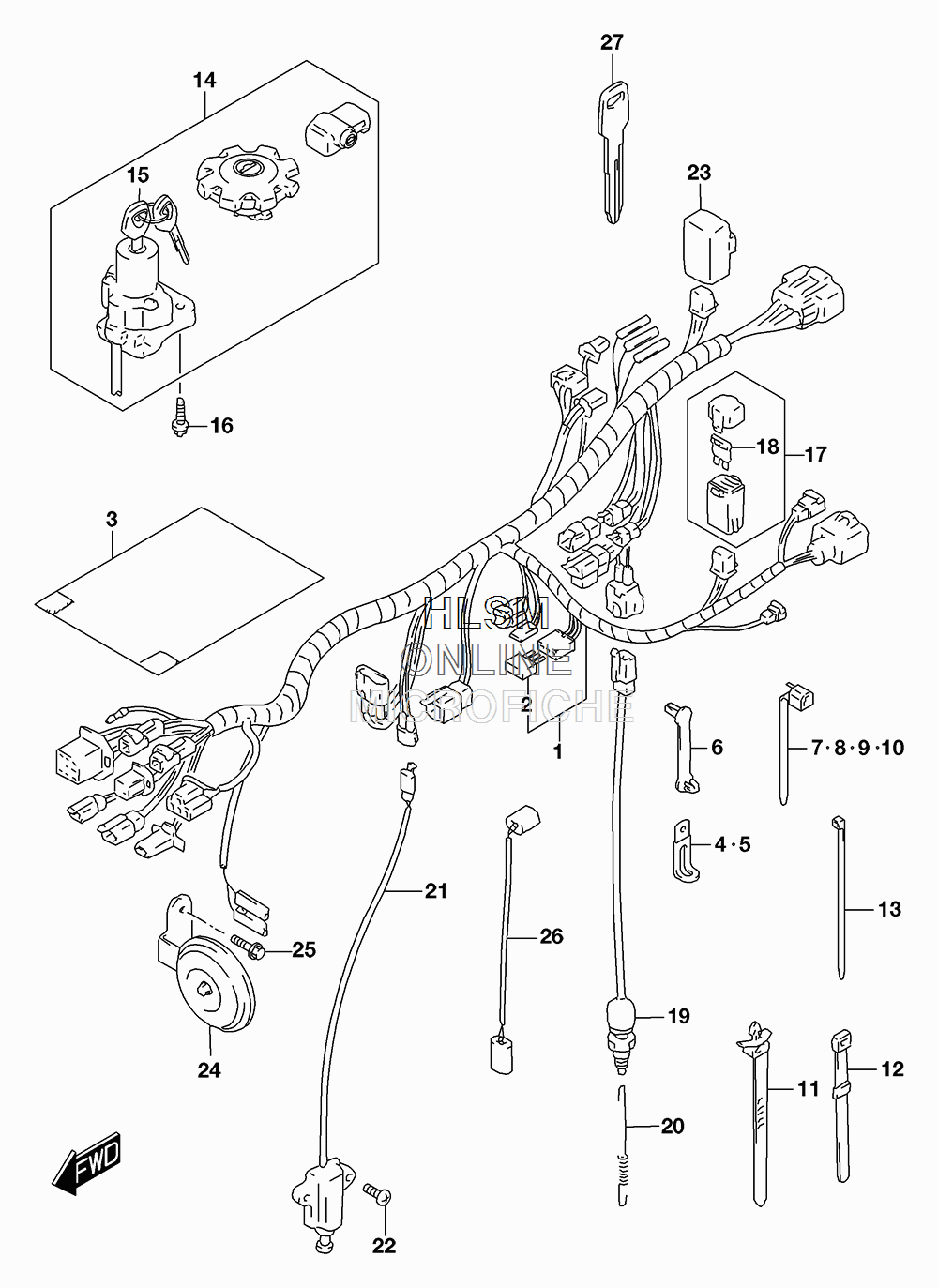

ELECTRICAL - WIRING HARNESS для Suzuki DR650SE - 2016 года выпуска
-
№АртикулНазвание
-
136610-32E30 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A10 ...DIODE...DIODE
-
336618-15D20 COVER, WIRING HARNESSCOVER, WIRING HARNESS
-
409404-06429 CLAMP (L:45)CLAMP (L:45)
-
509404-08419 CLAMP (L:80)CLAMP (L:80)
-
609407-03401 CLAMP (L:33)CLAMP (L:33)
-
709407-11401 CLAMP (L:95)CLAMP (L:95)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-18402 CLAMP (L:165)CLAMP (L:165)
-
1009407-25401 CLAMP (L:235)CLAMP (L:235)
-
1109407-11402 CLAMP (L:90)CLAMP (L:90)
-
1209407-12402 CLAMP (L:120)CLAMP (L:120)
-
1309407-10404 CLAMP (L:100)CLAMP (L:100)
-
1437000-04811 LOCK SETLOCK SET
-
1537100-04F00 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
1609139-08016 BOLT (8X20)BOLT (8X20)
-
1736740-32E00 FUSE ASSYFUSE ASSY
-
1809481-10101 ...FUSE (10A)...FUSE (10A)
-
1937740-32E00 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
2009443-06016 SPRINGSPRING
-
2137840-44X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2202112-0616B SCREWSCREW
-
2338740-24X50 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
2438500-32E00 HORN ASSYHORN ASSY
-
2501550-0612B BOLTBOLT
-
2636851-32E00 WIRE, THROTTLE SENSORWIRE, THROTTLE SENSOR
-
2737146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
