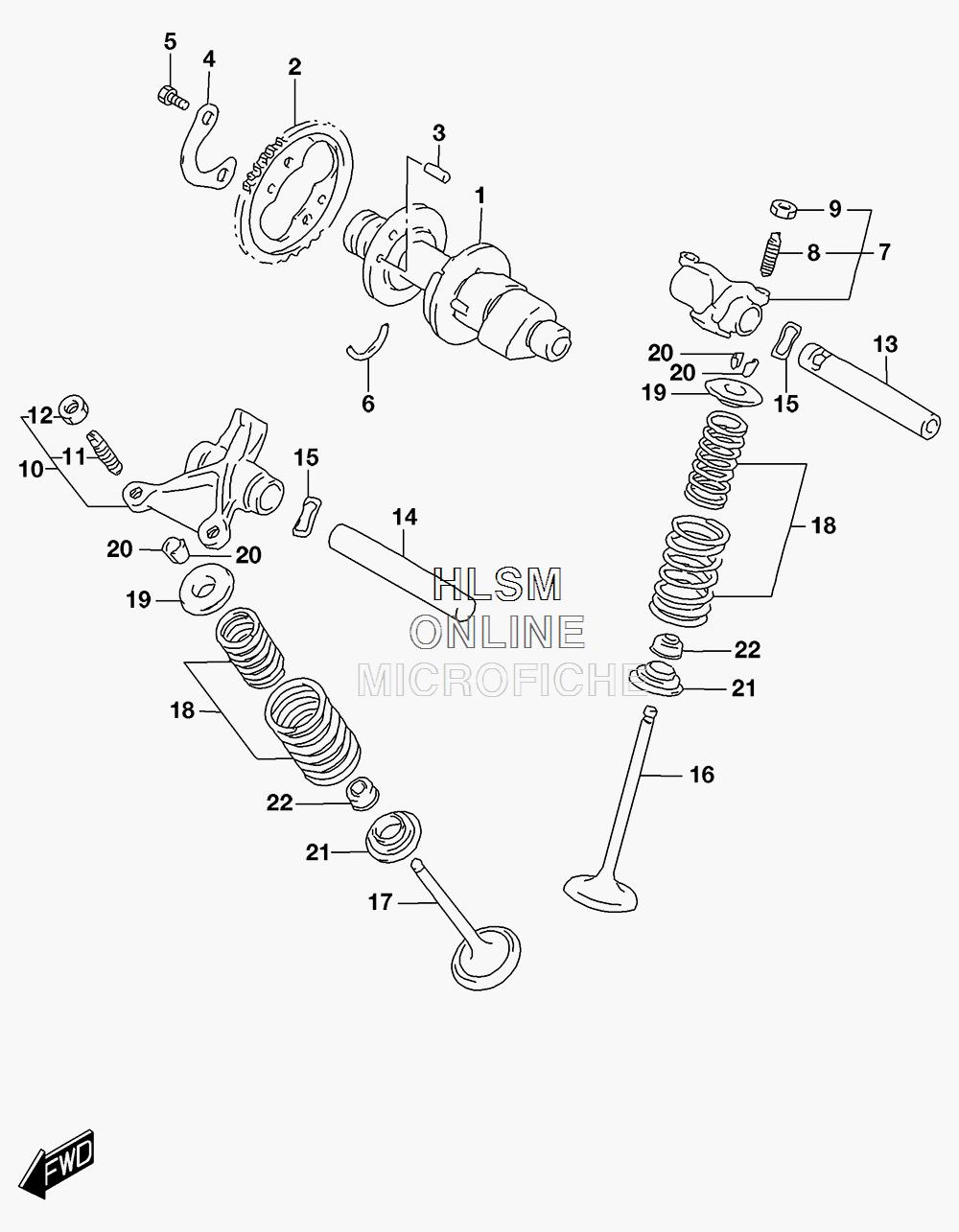

CAMSHAFT W/ VALVES для Suzuki DR650SE - 2016 года выпуска`
-
№АртикулНазвание
-
112710-32E01 CAM SHAFTCAM SHAFT
-
212741-32E00 SPROCKET (NT:38)SPROCKET (NT:38)
-
309261-05005 PIN (5X8)PIN (5X8)
-
412747-44B00 WASHERWASHER
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712840-32E00 ARM, VALVE ROCKER INTAKEARM, VALVE ROCKER INTAKE
-
812842-38A00 ...SCREW...SCREW
-
912843-32400 ...NUT...NUT
-
1012850-32E00 ARM, VALVE ROCKER EXHAUSTARM, VALVE ROCKER EXHAUST
-
1112842-38A00 ...SCREW...SCREW
-
1212843-32400 ...NUT...NUT
-
1312861-14D50 SHAFT, ROCKER ARM INSHAFT, ROCKER ARM IN
-
1412871-14D50 SHAFT, ROCKER ARM EXSHAFT, ROCKER ARM EX
-
1509164-12018 WASHERWASHER
-
1612911-19B00 VALVE, INTAKEVALVE, INTAKE
-
1712912-42A00 VALVE, EXHAUSTVALVE, EXHAUST
-
1812920-32E00 SPRING SET, VALVESPRING SET, VALVE
-
1912931-33201 RETAINERRETAINER
-
2012932-24400 COTTER, VALVECOTTER, VALVE
-
2112933-81400 SEAT, VALVESEAT, VALVE
-
2209289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
