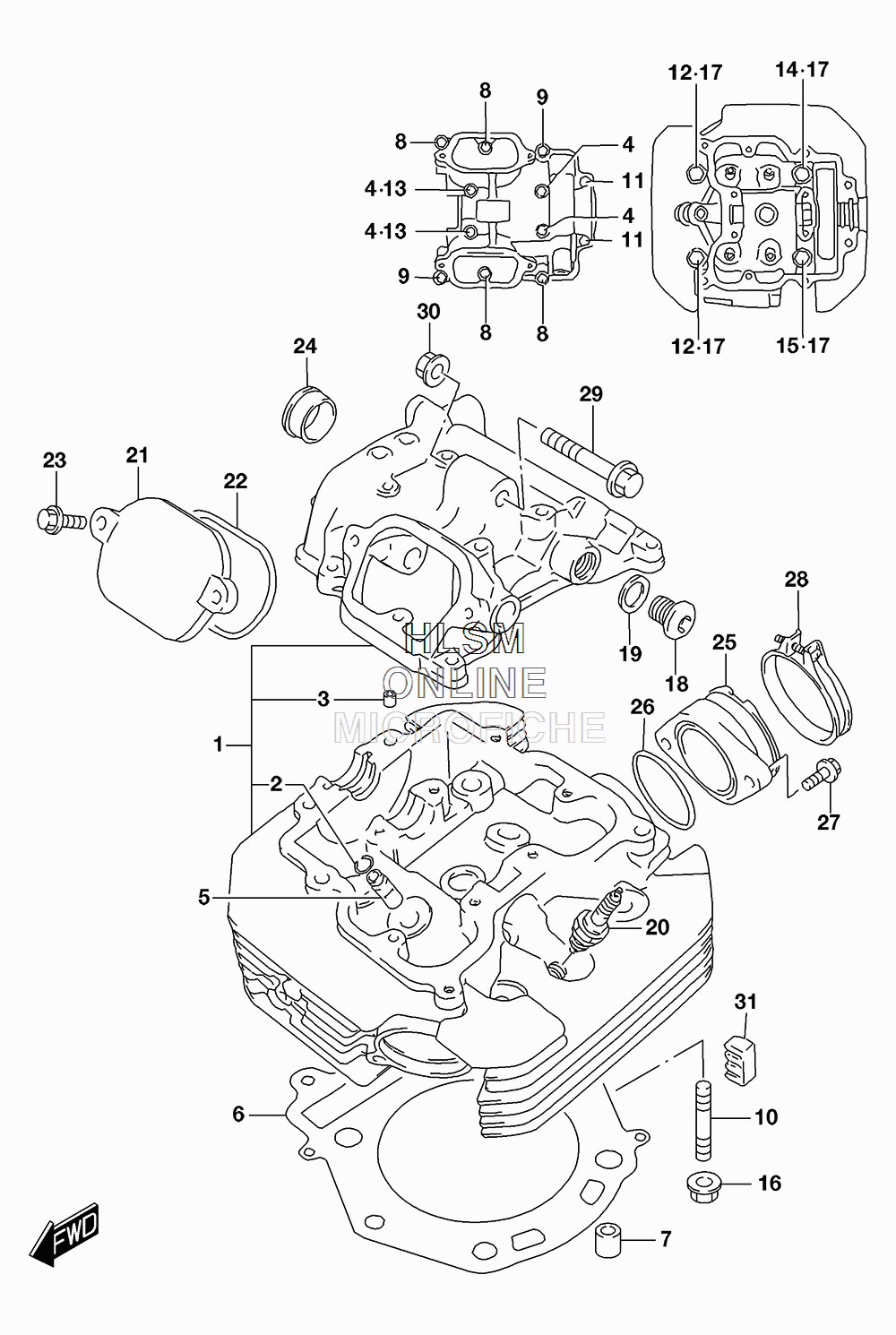

CYLINDER HEAD для Suzuki DR650SE - 2016 года выпуска

№

Артикул

Название
1

11100-32E20 HEAD ASSY, CYLINDER

HEAD ASSY, CYLINDER
2

09381-10004 ...SNAP RING

...SNAP RING
3

09206-08001 ...PIN (8X11)

...PIN (8X11)
4

09103-06102 ...BOLT (6X55)

...BOLT (6X55)
5

11115-32E70 GUIDE, VALVE (OS:0.3) (OPT)

GUIDE, VALVE (OS:0.3) (OPT)
6

11141-32E00 GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
7

04211-13189 PIN

PIN
8

01550-0625A BOLT

BOLT
9

01550-0630A BOLT

BOLT
10

09108-08142 STUD BOLT

STUD BOLT
11

09103-06167 BOLT (6X115)

BOLT (6X115)
12

09103-10178 BOLT (10X180)

BOLT (10X180)
13

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
14

09103-10179 BOLT (10X190)

BOLT (10X190)
15

09103-10180 BOLT (10X200)

BOLT (10X200)
16

08316-1008A NUT

NUT
17

09168-10017 GASKET (10.5X22X2)

GASKET (10.5X22X2)
18

09248-14011 PLUG (14X12)

PLUG (14X12)
19

09168-14002 GASKET (13.8X18.8X4.8)

GASKET (13.8X18.8X4.8)
20

09482-00460 SPARK PLUG (CR10E) (NGK)

SPARK PLUG (CR10E) (NGK)
20

09482-00461 SPARK PLUG (U31ESR-N) (DENSO)

SPARK PLUG (U31ESR-N) (DENSO)
20

09482-00458 SPARK PLUG (CR9E) (OPT NGK)

SPARK PLUG (CR9E) (OPT NGK)
20

09482-00459 SPARK PLUG (U27ESR-N) (OPT DENSO)

SPARK PLUG (U27ESR-N) (OPT DENSO)
21

11175-44B00 CAP, INSPECTION

CAP, INSPECTION
22

11177-44B01 O RING

O RING
23

01550-0620A BOLT

BOLT
24

09241-25007 PLUG (OD:30)

PLUG (OD:30)
25

13110-32E00 PIPE, INTAKE

PIPE, INTAKE
26

09280-46002 O RING (D:2.4,ID:45.7)

O RING (D:2.4,ID:45.7)
27

09126-06014 SCREW (6X16)

SCREW (6X16)
28

09402-58208 CLAMP

CLAMP
29

09103-08332 BOLT (8X53)

BOLT (8X53)
30

08319-3108A NUT

NUT
31

11151-32E00 PAD, RUBBER

PAD, RUBBER
