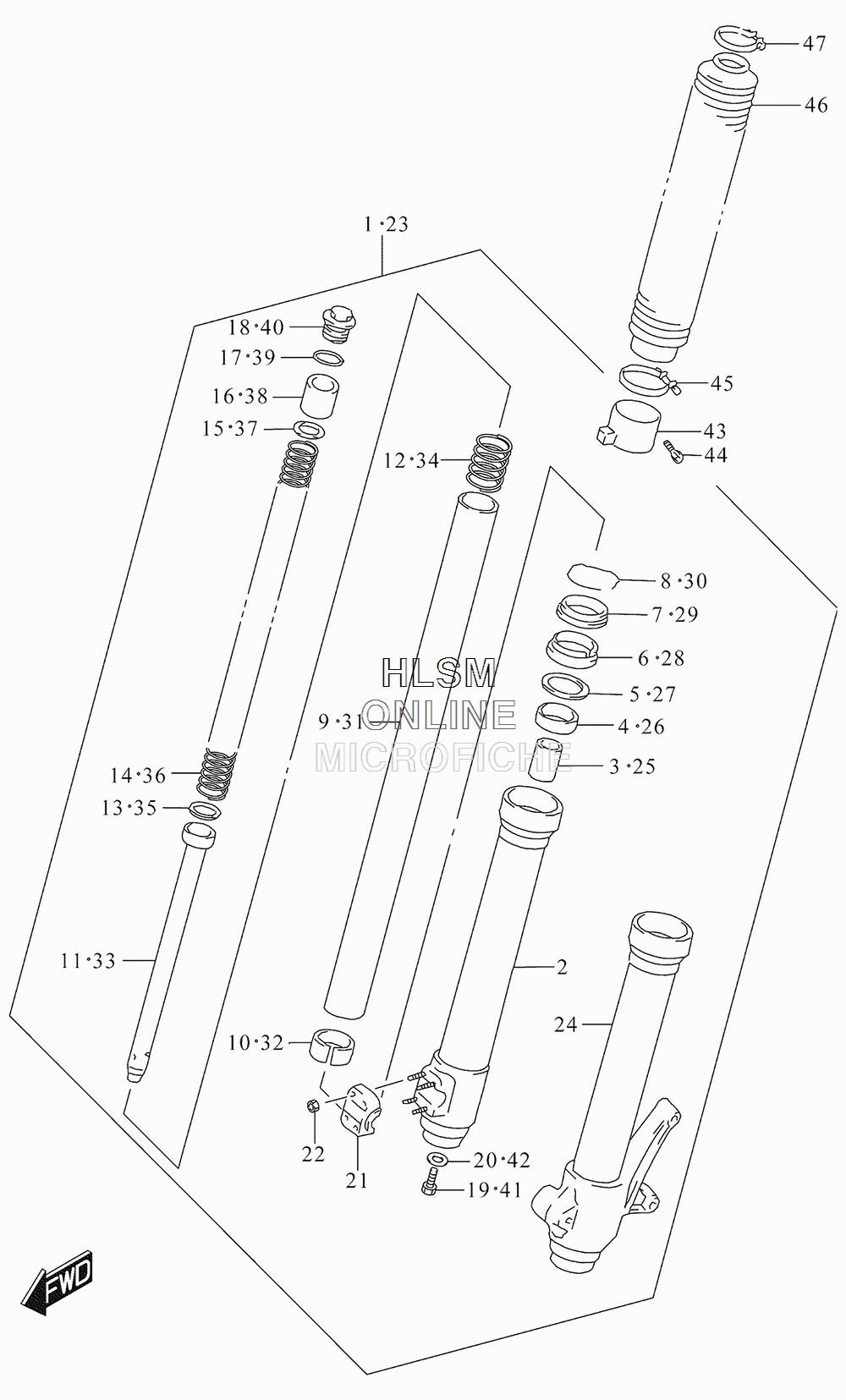

SUSPENSION - FRONT FORK для Suzuki DR650SE - 2015 года выпуска`
-
№АртикулНазвание
-
151103-32E00 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251130-32E00 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
351195-06C00 PIECE, OIL LOCKPIECE, OIL LOCK
-
451167-40C00 METAL, SLIDEMETAL, SLIDE
-
551158-14200 WASHERWASHER
-
651153-14330 OIL SEALOIL SEAL
-
751173-14330 SEAL, DUSTSEAL, DUST
-
851156-14200 RING, SNAPRING, SNAP
-
951110-32E00 TUBE, INNERTUBE, INNER
-
1051121-40C00 PISTONPISTON
-
1151190-32E00 CYLINDERCYLINDER
-
1251177-14330 SPRINGSPRING
-
1351196-31D00 RINGRING
-
1451171-32E00 SPRINGSPRING
-
1551172-32E00 WASHERWASHER
-
1651176-32E00 SPACERSPACER
-
1751117-14200 O RINGO RING
-
1851351-31D00 CAPCAP
-
1951147-16510 BOLTBOLT
-
2051148-41310 GASKETGASKET
-
2151132-32E00 HOLDER, AXLE RIGHT HANDHOLDER, AXLE RIGHT HAND
-
2208316-10067 NUTNUT
-
2351104-32E00 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
2451140-32E00 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
2551195-06C00 PIECE, OIL LOCKPIECE, OIL LOCK
-
2651167-40C00 METAL, SLIDEMETAL, SLIDE
-
2751158-14200 WASHERWASHER
-
2851153-14330 OIL SEALOIL SEAL
-
2951173-14330 SEAL, DUSTSEAL, DUST
-
3051156-14200 RING, SNAPRING, SNAP
-
3151110-32E00 TUBE, INNERTUBE, INNER
-
3251121-40C00 PISTONPISTON
-
3351190-32E00 CYLINDERCYLINDER
-
3451177-14330 SPRINGSPRING
-
3551196-31D00 RINGRING
-
3651171-32E00 SPRINGSPRING
-
3751172-32E00 WASHERWASHER
-
3851176-32E00 SPACERSPACER
-
3951117-14200 O RINGO RING
-
4051351-31D00 CAPCAP
-
4151147-16510 BOLTBOLT
-
4251148-41310 GASKETGASKET
-
4351203-32E00 GUIDE, BOOTGUIDE, BOOT
-
4407130-05207 BOLTBOLT
-
4551576-00B00 BAND, BOOT LOWERBAND, BOOT LOWER
-
4651571-32E00-019 BOOT (BLACK)BOOT (BLACK)
-
4751575-32E00 BAND, BOOT UPPERBAND, BOOT UPPER
