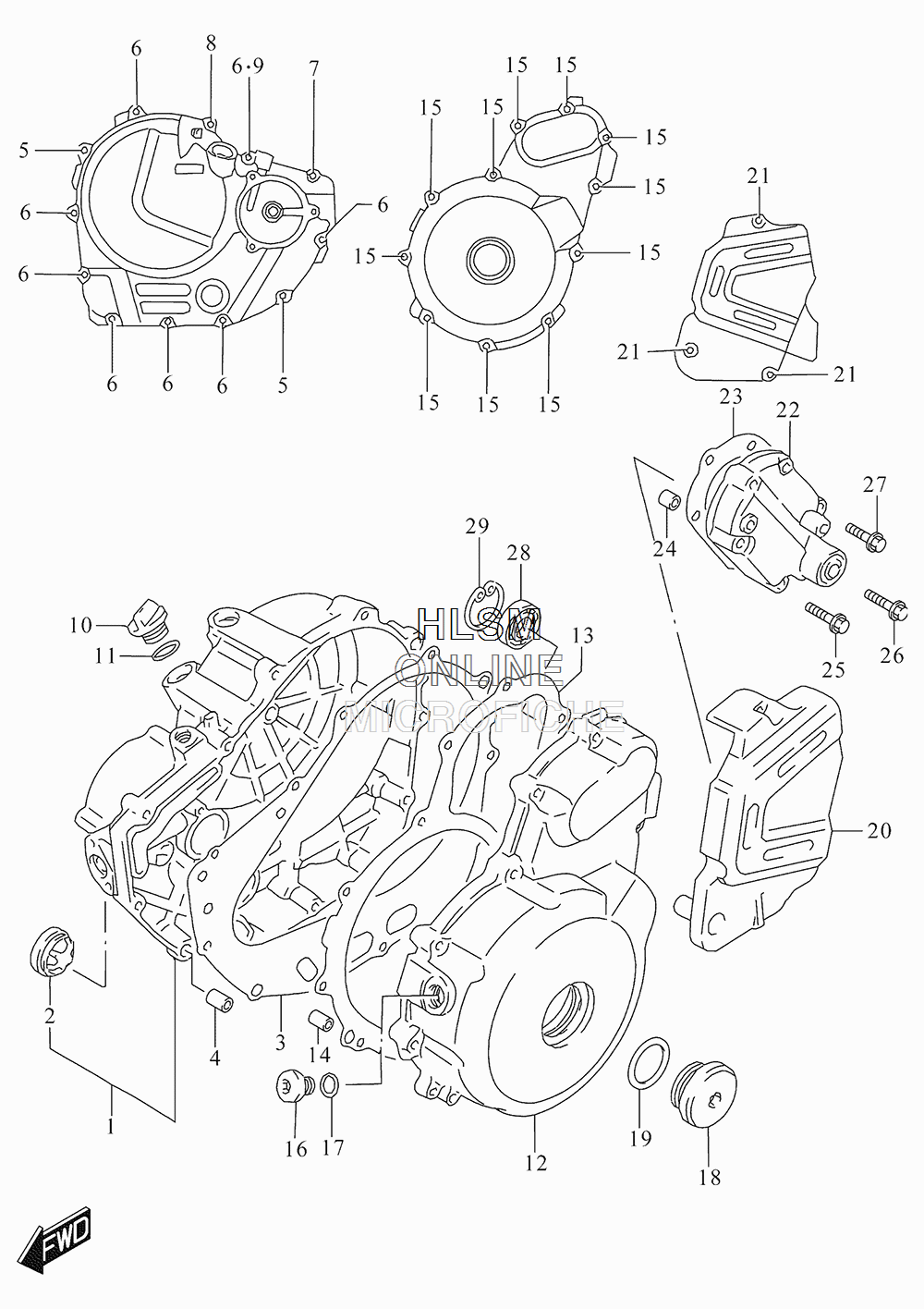

CRANKCASE COVER для Suzuki DR650SE - 2015 года выпуска

№

Артикул

Название
1

11340-32E00 COVER, CLUTCH

COVER, CLUTCH
2

11971-33210 LENS, OIL LEVEL

LENS, OIL LEVEL
3

11482-32E00 GASKET, CLUTCH COVER

GASKET, CLUTCH COVER
4

04211-09149 PIN

PIN
5

01547-0645A BOLT

BOLT
6

01547-0635A BOLT

BOLT
7

01547-0630A BOLT

BOLT
8

01547-0625A BOLT

BOLT
9

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
10

09259-20019 PLUG

PLUG
11

09280-17003 O RING (D:3.1,ID:16.8)

O RING (D:3.1,ID:16.8)
12

11351-32E01 COVER, MAGNETO

COVER, MAGNETO
13

11483-32E00 GASKET

GASKET
14

04211-09149 PIN

PIN
15

01547-0630A BOLT

BOLT
16

09248-14012 PLUG (14X12)

PLUG (14X12)
17

09168-14002 GASKET (13.8X18.8X4.8)

GASKET (13.8X18.8X4.8)
18

09259-36016-20H PLUG (SILVER)

PLUG (SILVER)
19

09280-33004 O RING (D:3.1,ID:32.7)

O RING (D:3.1,ID:32.7)
20

11361-32E00 COVER, ENGINE SPROCKET

COVER, ENGINE SPROCKET
21

01547-0635A BOLT

BOLT
22

11371-12D30 COVER, GEAR SHIFT

COVER, GEAR SHIFT
23

11485-12D01 GASKET

GASKET
24

04211-09149 PIN

PIN
25

01547-0635A BOLT

BOLT
26

01547-0630A BOLT

BOLT
27

01547-0620A BOLT

BOLT
28

09262-12001 BEARING (12X28X8)

BEARING (12X28X8)
29

08331-41289 CIRCLIP

CIRCLIP
