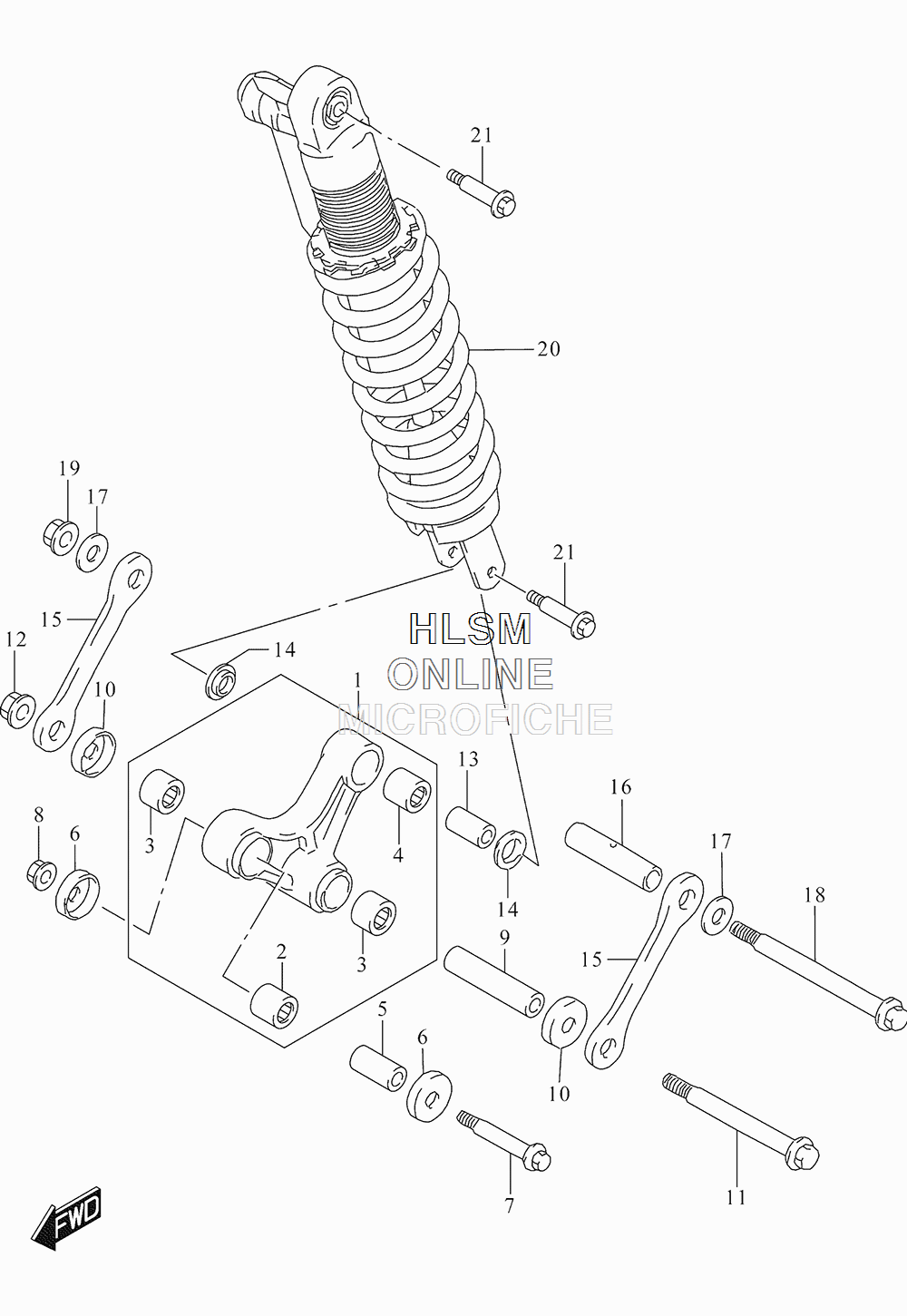

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DR650SE - 2015 года выпуска

№

Артикул

Название
1

62600-32840 LEVER SET, REAR CUSHION

LEVER SET, REAR CUSHION
2

09263-20073 BEARING (20X27X30)

BEARING (20X27X30)
3

09263-21012 BEARING (21X27X20)

BEARING (21X27X20)
4

09263-17027 BEARING (17X24X20)

BEARING (17X24X20)
5

62317-27C10 SPACER, FRONT (12X20X34)

SPACER, FRONT (12X20X34)
6

62162-28E00 SEAL, FRONT DUST

SEAL, FRONT DUST
7

62658-01C60 BOLT, FRONT (12X65)

BOLT, FRONT (12X65)
8

08319-3112A NUT

NUT
9

62626-13E00 SPACER, CENTER (15X21X74)

SPACER, CENTER (15X21X74)
10

62682-13E00 SEAL, CENTER DUST

SEAL, CENTER DUST
11

62621-27C20 BOLT, CENTER (14X109)

BOLT, CENTER (14X109)
12

08319-3114A NUT

NUT
13

62684-40A10 SPACER, REAR (10X17X30)

SPACER, REAR (10X17X30)
14

62624-13E00 SEAL, REAR DUST

SEAL, REAR DUST
15

62641-32E00 ROD, REAR CUSHION LEVER

ROD, REAR CUSHION LEVER
16

62626-14D00 SPACER, ROD (14X20X74)

SPACER, ROD (14X20X74)
17

08211-14321 WASHER

WASHER
18

62621-17C00 BOLT, ROD (14X112)

BOLT, ROD (14X112)
19

08319-3114A NUT

NUT
20

62100-32E10-28W ABSORBER ASSY, REAR SHOCK (WHITE)

ABSORBER ASSY, REAR SHOCK (WHITE)
21

62648-14500 BOLT (10X48)

BOLT (10X48)
