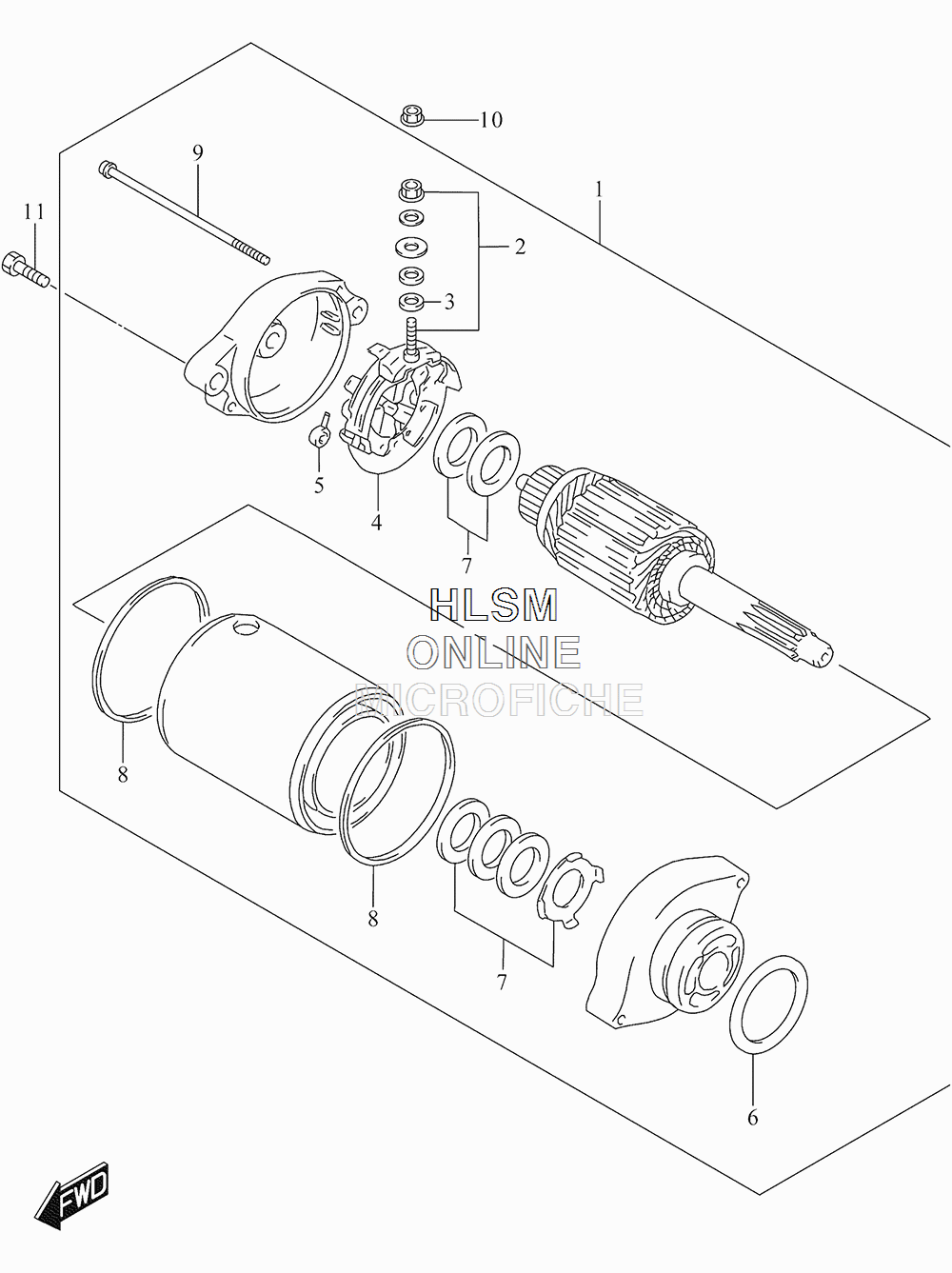

STARTING MOTOR для Suzuki DR650SE - 2015 года выпуска`
-
№АртикулНазвание
-
131100-32E01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-38B00 TERMINAL SET, BRUSHTERMINAL SET, BRUSH
-
331143-49040 O RINGO RING
-
431132-38B00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
531135-38B00 SPRING, BRUSHSPRING, BRUSH
-
631156-48B00 O RINGO RING
-
731170-32E00 WASHER SETWASHER SET
-
831264-31300 O RINGO RING
-
931280-26D00 BOLTBOLT
-
1008361-3506A NUTNUT
-
1101547-0630A BOLTBOLT
