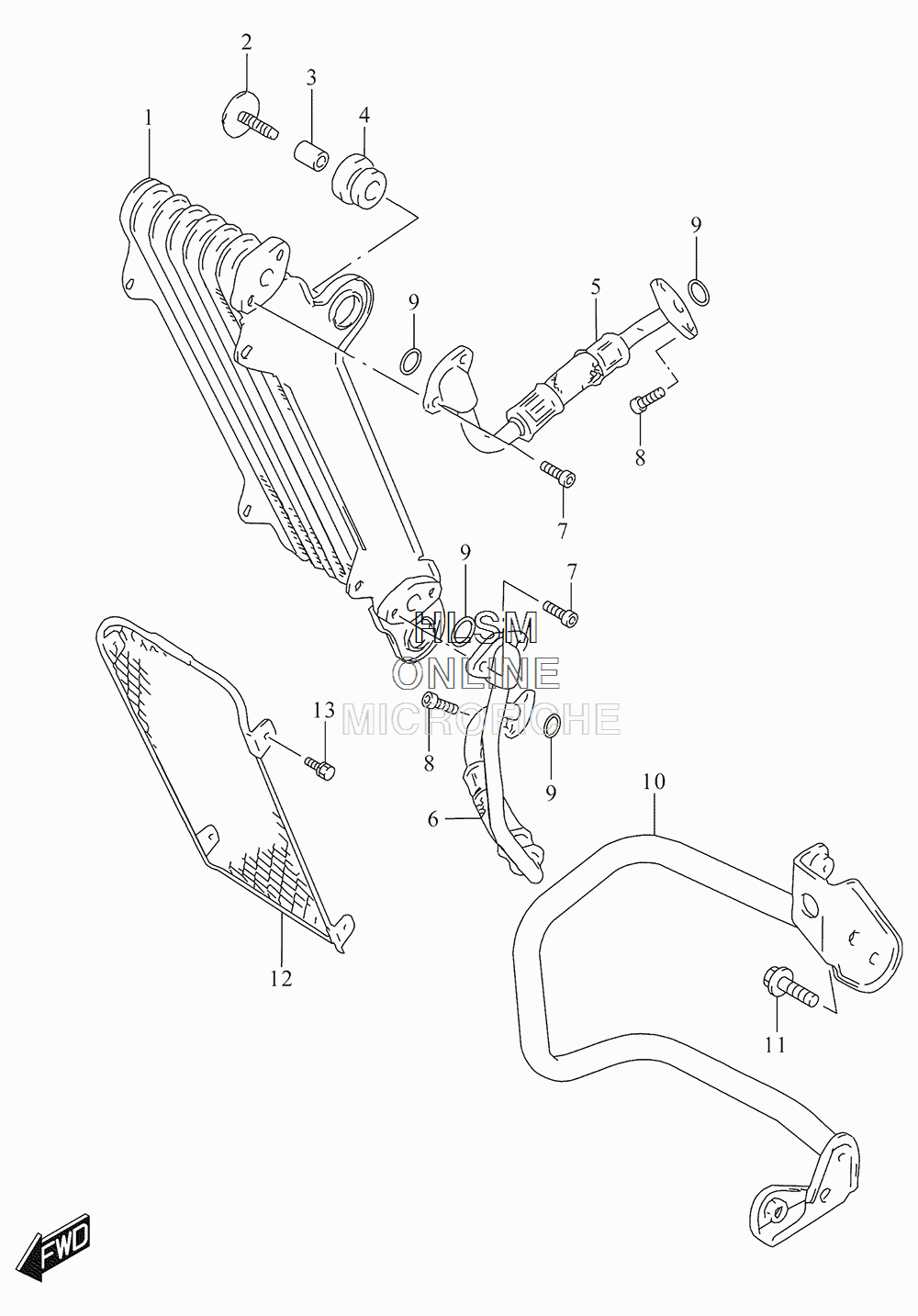

OIL COOLER для Suzuki DR650SE - 2015 года выпуска`
-
№АртикулНазвание
-
116600-32E00 COOLER ASSY, OILCOOLER ASSY, OIL
-
209116-08120 BOLT (8X28)BOLT (8X28)
-
309180-08193 SPACER (8.5X12X17)SPACER (8.5X12X17)
-
416629-12D00 CUSHION, OIL COOLERCUSHION, OIL COOLER
-
516460-32E00 HOSE, OIL COOLER UPPERHOSE, OIL COOLER UPPER
-
616470-32E00 HOSE, OIL COOLER LOWERHOSE, OIL COOLER LOWER
-
707130-0616A BOLTBOLT
-
801547-0616A BOLTBOLT
-
909280-12012 O RING (D:2.4,ID:11.8)O RING (D:2.4,ID:11.8)
-
1016640-32E11 GUARDGUARD
-
1101550-0820A BOLTBOLT
-
1216650-32E00 BUMPER, OIL COOLERBUMPER, OIL COOLER
-
1302162-0510B SCREWSCREW
