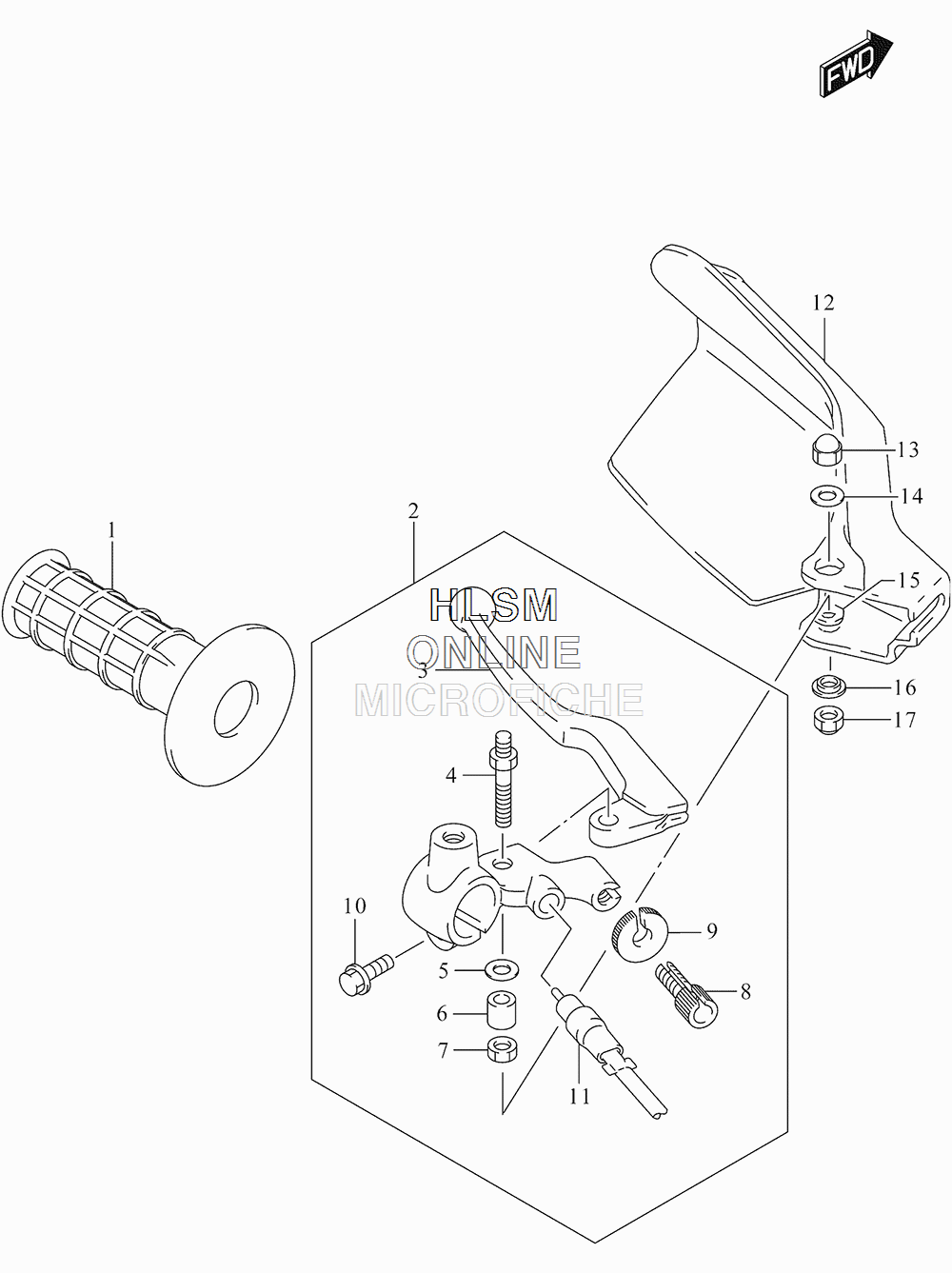

HANDLEBAR - LEFT HAND LEVER для Suzuki DR650SE - 2015 года выпуска`
-
№АртикулНазвание
-
157211-12D00 GRIP, LEFT HANDGRIP, LEFT HAND
-
257500-12E30 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
357421-12E30 LEVER, CLUTCHLEVER, CLUTCH
-
457531-12E30 BOLTBOLT
-
557533-12E30 WASHERWASHER
-
657532-12E30 SPACERSPACER
-
708319-2106B NUTNUT
-
857441-45C00 ADJUSTER, CABLEADJUSTER, CABLE
-
957442-45C00 NUTNUT
-
1001547-0620B BOLTBOLT
-
1157560-13E02 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
1257541-31D20-YUD COVER, KNUCKLE LEFT HAND (GRAY)COVER, KNUCKLE LEFT HAND (GRAY)
-
1308313-1006B NUTNUT
-
1409160-06154 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1509160-06019 WASHER (6.5X16X1.2)WASHER (6.5X16X1.2)
-
1609169-06055 WASHERWASHER
-
1708319-2106A NUTNUT
