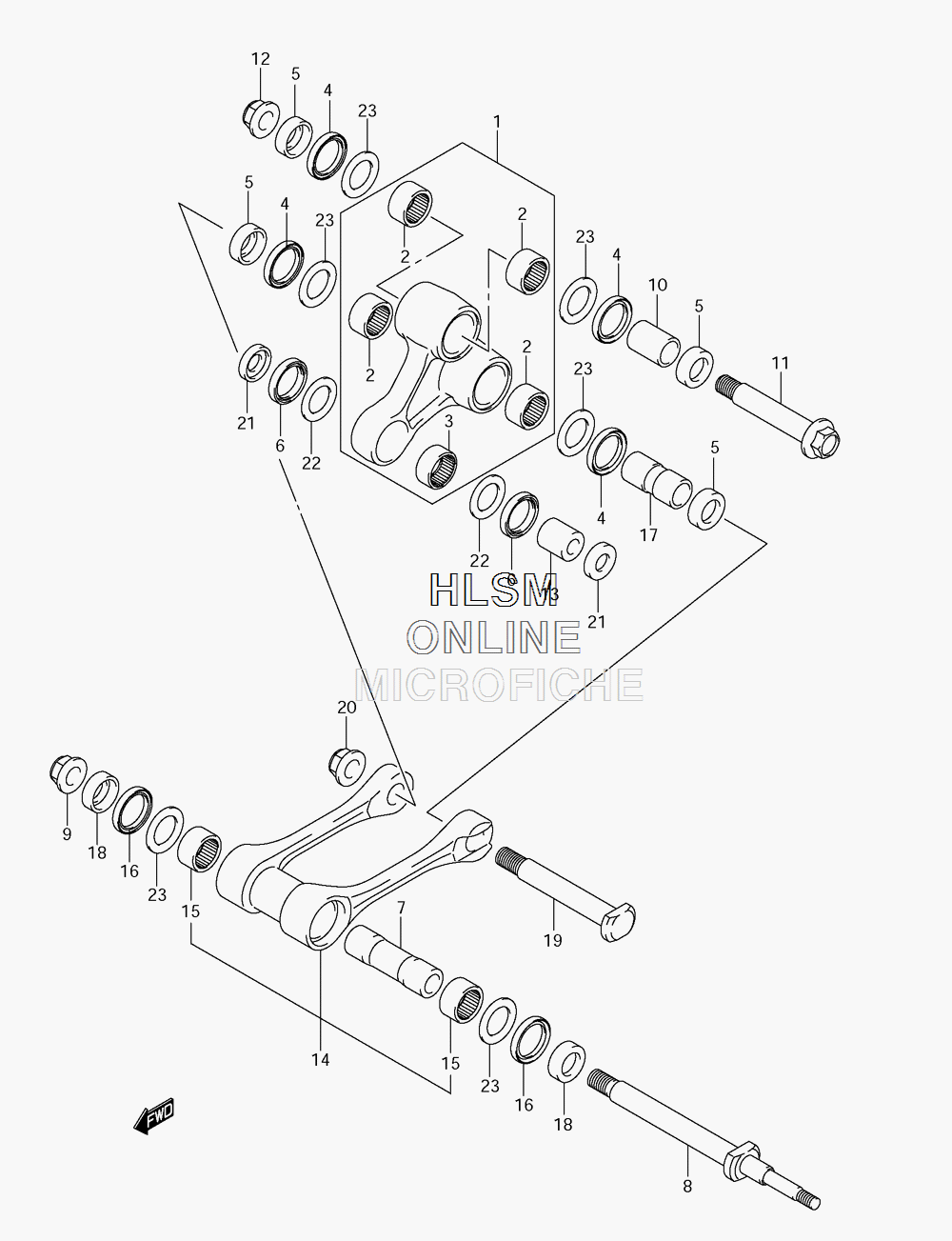

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki RM-Z250L3 - 2013 года выпуска`
-
№АртикулНазвание
-
162601-28810 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20090 ...BEARING (20X26X14)...BEARING (20X26X14)
-
309263-16033 ...BEARING (16X22X12)...BEARING (16X22X12)
-
409285-24001 OIL SEAL (24X31X5)OIL SEAL (24X31X5)
-
562647-28H20 SPACER, LEVER SIDESPACER, LEVER SIDE
-
609284-22003 OIL SEAL (22X28X4)OIL SEAL (22X28X4)
-
762317-28H20 SPACER, REAR CUSHION RODSPACER, REAR CUSHION ROD
-
862621-28H10 BOLT, REAR CUSHION RODBOLT, REAR CUSHION ROD
-
909159-12056 NUTNUT
-
1062648-28H20 SPACER, LEVER UPPERSPACER, LEVER UPPER
-
1162658-28H00 BOLT, LEVER UPPERBOLT, LEVER UPPER
-
1209159-12056 NUTNUT
-
1362684-28H10 SPACER, LEVER FRONTSPACER, LEVER FRONT
-
1462601-28820 ROD SET, REAR CUSHIONROD SET, REAR CUSHION
-
1509263-20090 ...BEARING (20X26X14)...BEARING (20X26X14)
-
1609285-24001 OIL SEAL (24X31X5)OIL SEAL (24X31X5)
-
1762646-28H20 SPACER, LEVER LOWERSPACER, LEVER LOWER
-
1862647-28H20 SPACER, ROD SIDESPACER, ROD SIDE
-
1962657-28H00 BOLT, LEVER LOWERBOLT, LEVER LOWER
-
2009159-12056 NUT, REAR CUSHIONNUT, REAR CUSHION
-
2162686-28H10 SPACER, LEVER FRONT SIDESPACER, LEVER FRONT SIDE
-
2209181-16214 SHIM (16X28X0.5)SHIM (16X28X0.5)
-
2308211-20301 WASHERWASHER
