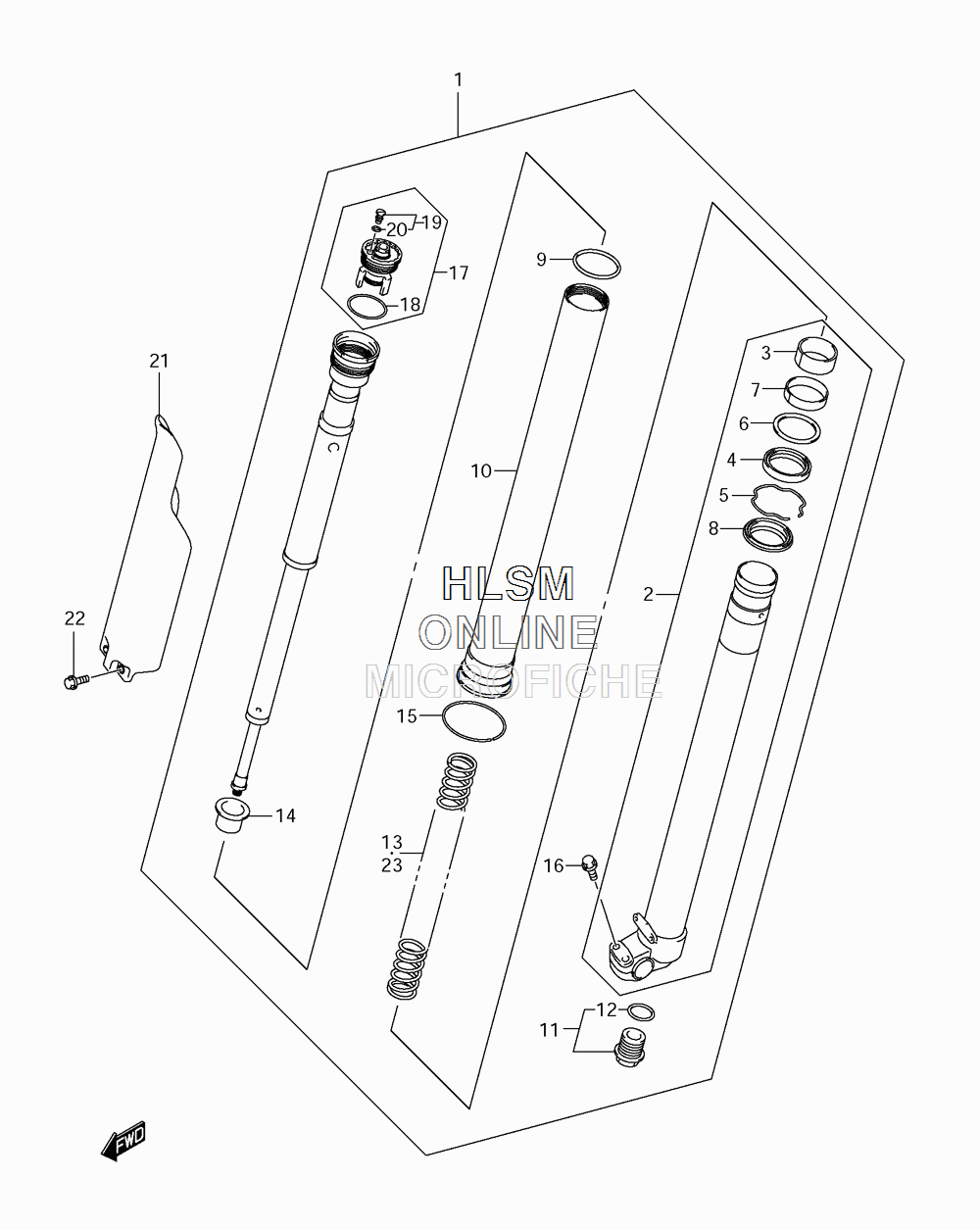

SUSPENSION - FRONT FORK (RIGHT HAND) для Suzuki RM-Z250L3 - 2013 года выпуска

№

Артикул

Название
1

51103-49H20 DAMPER ASSY, FRONT FORK RIGHT

DAMPER ASSY, FRONT FORK RIGHT
2

51110-49H20 ...TUBE, INNER RH

...TUBE, INNER RH
3

51121-28H30 ......BUSH, SLIDE

......BUSH, SLIDE
4

51153-28H30 ......SEAL, OIL

......SEAL, OIL
5

51156-28H30 ......RING, OIL SEAL STOPPER

......RING, OIL SEAL STOPPER
6

51158-28H30 ......SPACER, SEAL

......SPACER, SEAL
7

51167-28H30 ......BUSH, GUIDE

......BUSH, GUIDE
8

51173-28H30 ......SEAL, DUST

......SEAL, DUST
9

51118-28H30 ...O-RING

...O-RING
10

51130-49H20 ...TUBE, OUTER

...TUBE, OUTER
11

51140-28H30 ...BOLT, CENTER

...BOLT, CENTER
12

62131-27C40 ......O-RING

......O-RING
13

51171-28H60 ...SPRING, FRONT

...SPRING, FRONT
14

51182-28H30 ...GUIDE SPRING

...GUIDE SPRING
15

51211-37FC0 ...STOPPER RING

...STOPPER RING
16

51328-37F80 ...BOLT

...BOLT
17

51360-28H30 ...BOLT, ADJUSTER

...BOLT, ADJUSTER
18

51187-01H00 ......O-RING

......O-RING
19

51357-36F20 ......BOLT, PLUG

......BOLT, PLUG
20

51358-28E30 .........O-RING

.........O-RING
21

51501-28H21 PROTECTOR, FRONT FORK RIGHT

PROTECTOR, FRONT FORK RIGHT
22

09111-06098 BOLT

BOLT
23

51171-28H50 SPRING, FRONT (SOFT)

SPRING, FRONT (SOFT)
23

51171-28H70 SPRING, FRONT (HARD)

SPRING, FRONT (HARD)
