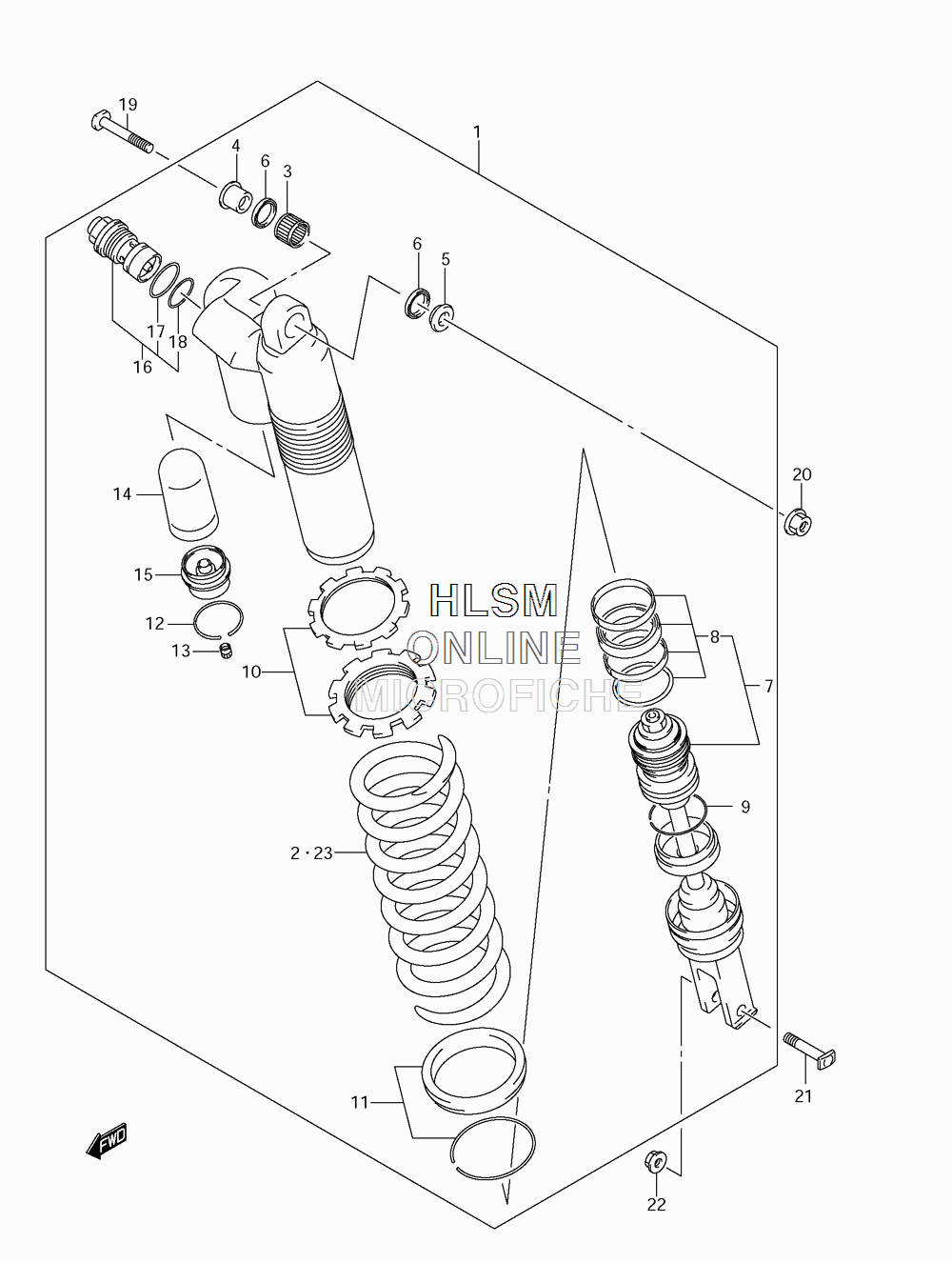

REAR SHOCK ABSORBER (EXCEPT CALIF.) для Suzuki RM-Z250L3 - 2013 года выпуска
-
№АртикулНазвание
-
162100-49H80-YKS ABSORBER ASSY, RR SHOCK (YKS - FIERY RED)ABSORBER ASSY, RR SHOCK (YKS - FIERY RED)
-
262211-49H60 ...SPRING...SPRING
-
309263-16033 ...BEARING...BEARING
-
462684-36F00 ...SPACER, UPPER BEARING RIGHT...SPACER, UPPER BEARING RIGHT
-
562685-36F00 ...SPACER, UPPER BEARING LEFT...SPACER, UPPER BEARING LEFT
-
609284-16005 ...OIL SEAL...OIL SEAL
-
762120-49H60 ...ROD, PISTON...ROD, PISTON
-
862150-28H60 ......O-RING SET......O-RING SET
-
962279-36E80 ...RING, STOPPER...RING, STOPPER
-
1062190-28H90 ...ADJUSTER SET...ADJUSTER SET
-
1162220-36F00 ...SPRING SEAT SET...SPRING SEAT SET
-
1262278-36E00 ...RING, STOPPER...RING, STOPPER
-
1352194-46686 ...CAP...CAP
-
1462273-36E00 ...BLADDER...BLADDER
-
1562275-28H30 ...CAP, CHAMBER...CAP, CHAMBER
-
1662130-28H60 ...BOLT, PLUG...BOLT, PLUG
-
1762131-28E00 ......O-RING......O-RING
-
1851174-36EB0 ......O-RING......O-RING
-
1962311-28H00 BOLTBOLT
-
2009159-10122 NUTNUT
-
2162221-37F30 BOLTBOLT
-
2209159-10067 NUTNUT
-
23-162211-37FK0 SPRING (SOFT)SPRING (SOFT)
-
23-262211-28H90 SPRING (HARD)SPRING (HARD)
