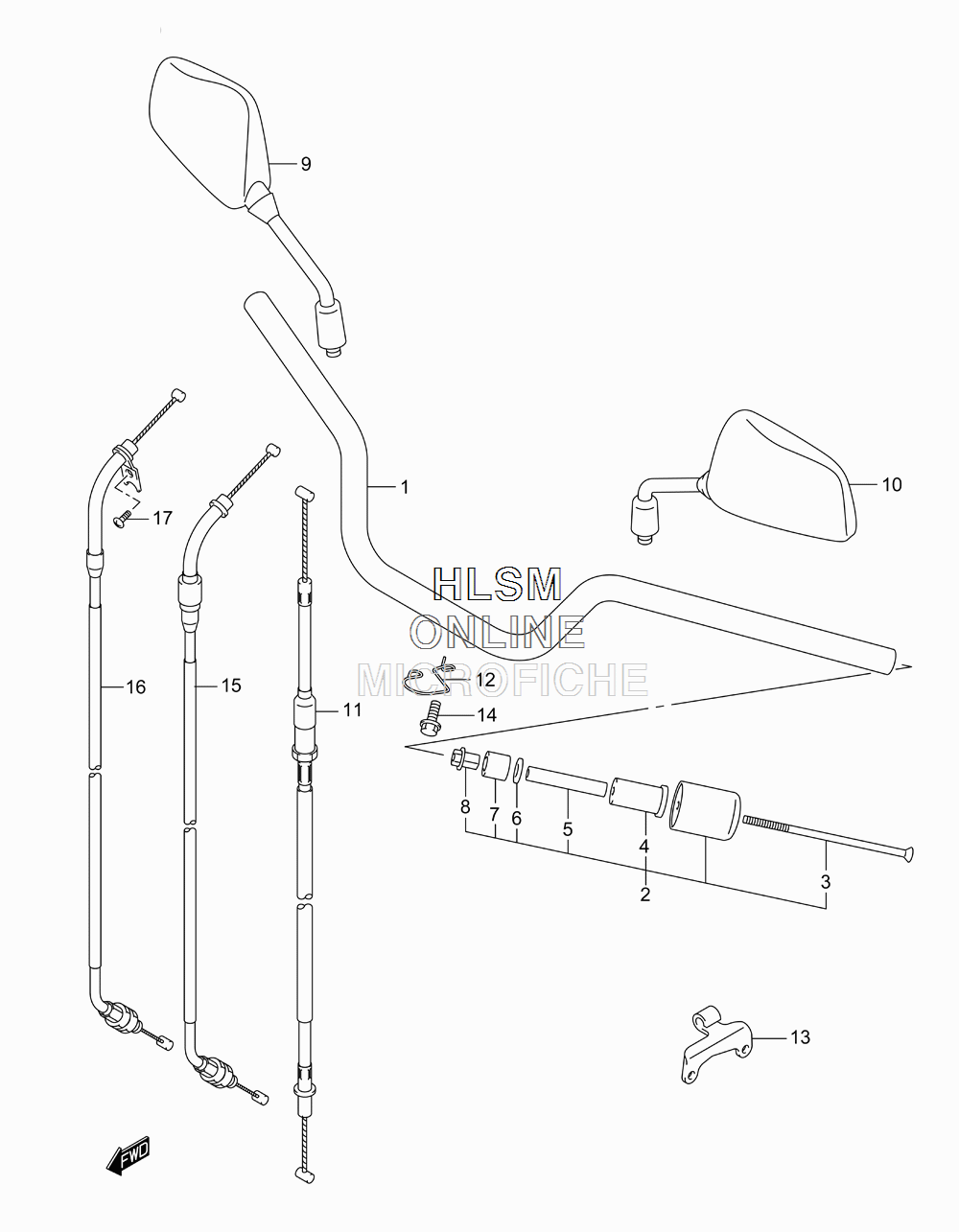

HANDLEBAR W/ CABLES для Suzuki DL-650AL3 V-Storm 650 ABS - 2013 года выпуска
-
№АртикулНазвание
-
156111-11J01-YUS HANDLEBAR (YUS - SILVER)HANDLEBAR (YUS - SILVER)
-
256200-16841 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
309127-06018 ...SCREW (6X110)...SCREW (6X110)
-
456272-06G00 ...EXPANDER, OUTER...EXPANDER, OUTER
-
556276-17D00 ...SPACER...SPACER
-
609160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
756272-10G00 ...EXPANDER, INNER...EXPANDER, INNER
-
856273-10G10 ...NUT...NUT
-
956500-04F30 MIRROR ASSY, REAR VIEW RIGHTMIRROR ASSY, REAR VIEW RIGHT
-
1056600-04F30 MIRROR ASSY, REAR VIEW LEFTMIRROR ASSY, REAR VIEW LEFT
-
1158200-11J00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1258631-11J10 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1358634-44H00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1401547-0612A BOLTBOLT
-
1558300-11J00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1658300-11J10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1709125-05042 SCREW (5X10)SCREW (5X10)
