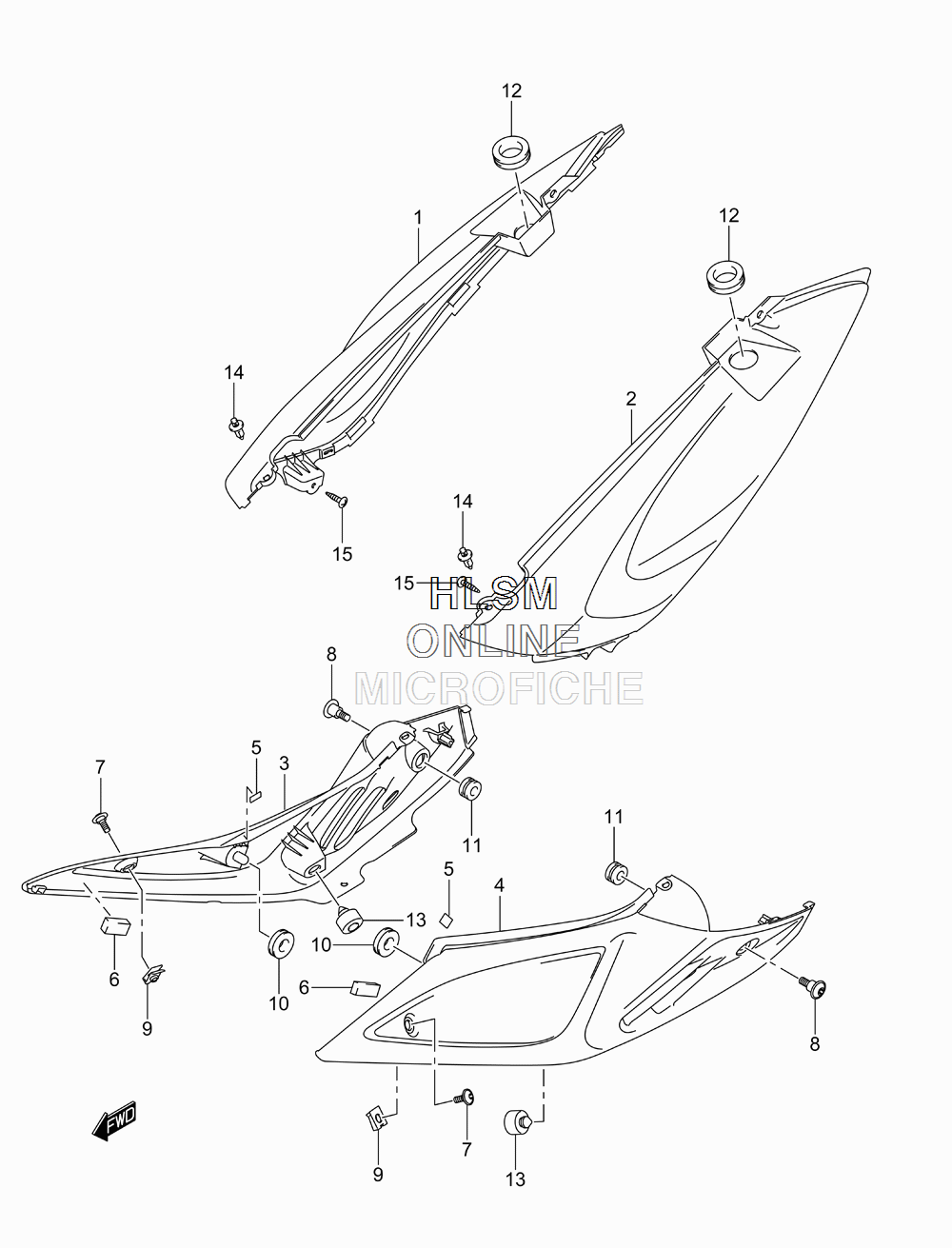

FENDER - FRONT/REAR для Suzuki DL-650AL3 V-Storm 650 ABS - 2013 года выпуска
-
№АртикулНазвание
-
147111-11J01-YKY COVER, FRAME RIGHT (YKY - BLUE)COVER, FRAME RIGHT (YKY - BLUE)
-
147111-11J01-YLF COVER, FRAME RIGHT (YLF - GLAY)COVER, FRAME RIGHT (YLF - GLAY)
-
147111-11J01-YWW COVER, FRAME RIGHT (YWW - WHITE)COVER, FRAME RIGHT (YWW - WHITE)
-
247211-11J01-YKY COVER, FRAME LEFT (YKY - BLUE)COVER, FRAME LEFT (YKY - BLUE)
-
247211-11J01-YLF COVER, FRAME LEFT (YLF - GLAY)COVER, FRAME LEFT (YLF - GLAY)
-
247211-11J01-YWW COVER, FRAME LEFT (YWW - WHITE)COVER, FRAME LEFT (YWW - WHITE)
-
347411-11J00 COVER, FRAME SIDE RIGHTCOVER, FRAME SIDE RIGHT
-
447511-11J00 COVER, FRAME SIDE LEFTCOVER, FRAME SIDE LEFT
-
563115-37H00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
694423-10G00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
709139-05074 BOLT (5X13)BOLT (5X13)
-
809139-06179 BOLT (6X20)BOLT (6X20)
-
909148-05052 NUTNUT
-
1009320-08028 CUSHIONCUSHION
-
1109320-09016 CUSHIONCUSHION
-
1209320-20010 CUSHIONCUSHION
-
1309321-10001 CUSHIONCUSHION
-
1409409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1503541-0416A SCREWSCREW
