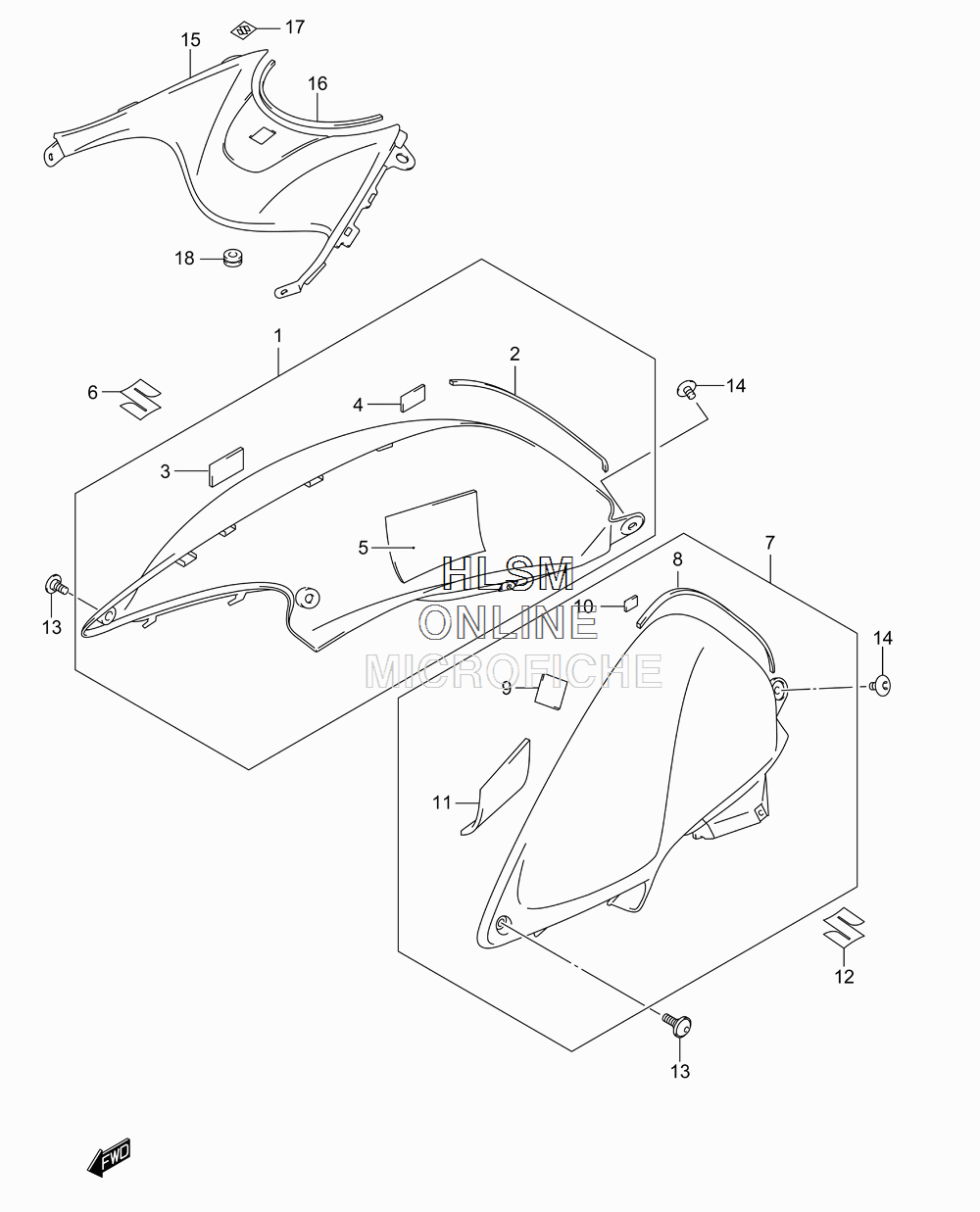

FUEL TANK COVER для Suzuki DL-650AL3 V-Storm 650 ABS - 2013 года выпуска
-
№АртикулНазвание
-
144170-11J00-YKY COVER, SIDE RIGHT (YKY - BLUE)COVER, SIDE RIGHT (YKY - BLUE)
-
144170-11J00-YLF COVER, SIDE RIGHT (YLF - GRAY)COVER, SIDE RIGHT (YLF - GRAY)
-
144170-11J00-YWW COVER, SIDE RIGHT (YWW - WHITE)COVER, SIDE RIGHT (YWW - WHITE)
-
244277-37H00 ...CUSHION, SIDE COVER...CUSHION, SIDE COVER
-
344572-13G00 ...FASTNER, FUEL TANK COVER...FASTNER, FUEL TANK COVER
-
444572-44G00 ...FASTNER, FUEL TANK COVER...FASTNER, FUEL TANK COVER
-
544278-11J00 ...CUSHION...CUSHION
-
668111-18G20 EMBLEM, "S"EMBLEM, "S"
-
744180-11J00-YKY COVER, SIDE LEFT (YKY - BLUE)COVER, SIDE LEFT (YKY - BLUE)
-
744180-11J00-YLF COVER, SIDE LEFT (YLF - GRAY)COVER, SIDE LEFT (YLF - GRAY)
-
744180-11J00-YWW COVER, SIDE LEFT (YWW - WHITE)COVER, SIDE LEFT (YWW - WHITE)
-
844277-37H00 ...CUSHION, SIDE COVER...CUSHION, SIDE COVER
-
944572-13G00 ...FASTNER, FUEL TANK COVER...FASTNER, FUEL TANK COVER
-
1044572-44G00 ...FASTNER, FUEL TANK COVER...FASTNER, FUEL TANK COVER
-
1144278-11J00 ...CUSHION...CUSHION
-
1268111-18G20 EMBLEM, "S"EMBLEM, "S"
-
1309139-05064 SCREW (5X13)SCREW (5X13)
-
1444193-11J00 SCREW, FUEL TANK COVERSCREW, FUEL TANK COVER
-
1544191-11J00 COVER, FUEL TANK FRONTCOVER, FUEL TANK FRONT
-
1644192-11J00 CUSHION, FUEL TANK FRONT COVECUSHION, FUEL TANK FRONT COVE
-
1768281-35F00 EMBLEM, "S"EMBLEM, "S"
-
1809320-06504 CUSHIONCUSHION
-
1809320-06504 CUSHIONCUSHION
