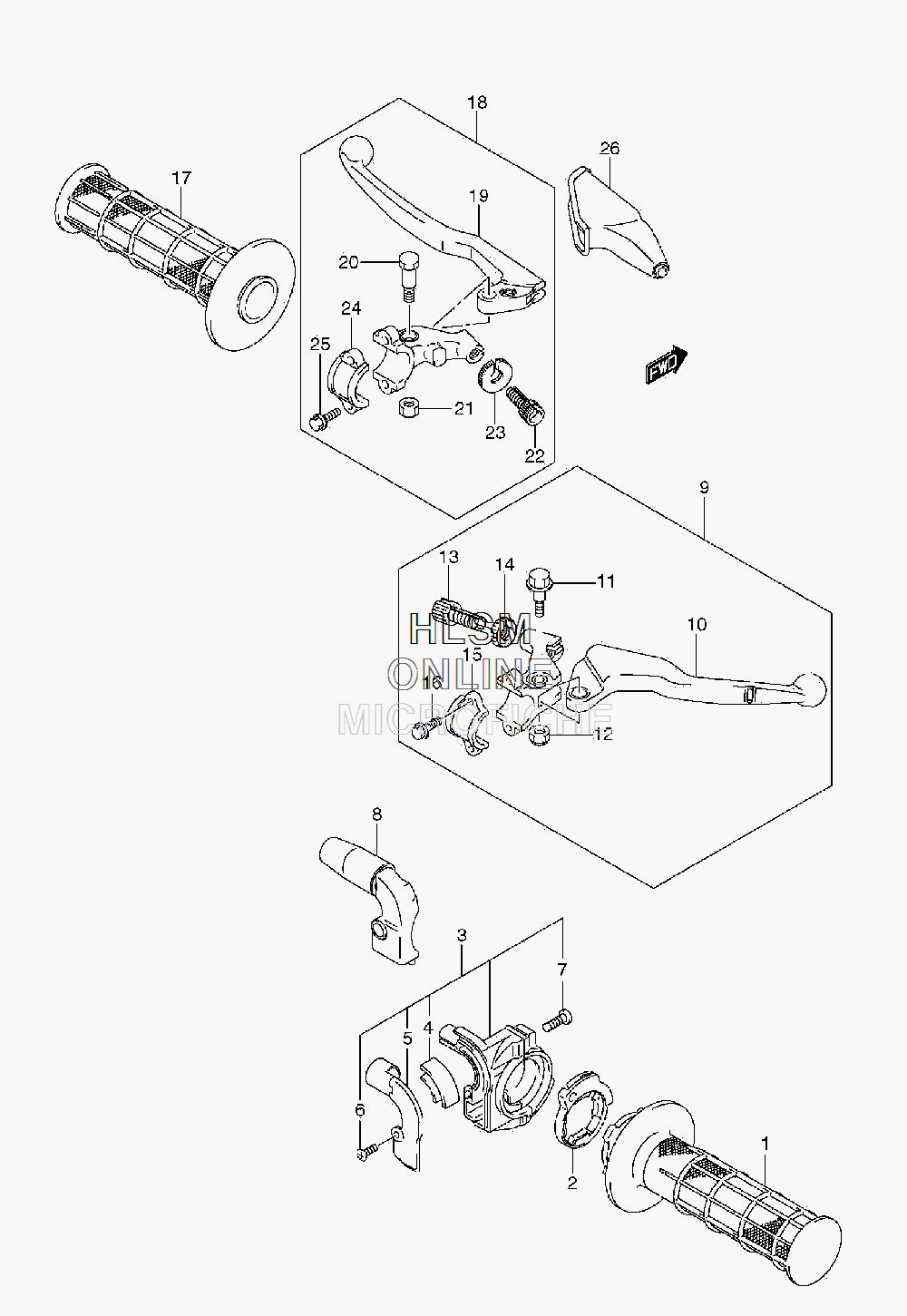

HANDLEBAR - LEVERS для Suzuki DR-Z125L2 - 2012 года выпуска
-
№АртикулНазвание
-
157110-27C00 GRIP, THROTTLEGRIP, THROTTLE
-
257114-20430 ROTOR, THROTTLEROTOR, THROTTLE
-
357100-03D10 CASE ASSY, THROTTLE (INCL. 4-7)CASE ASSY, THROTTLE (INCL. 4-7)
-
457122-03D10 GUIDEGUIDE
-
557129-03D10 COVERCOVER
-
602112-0516A SCREWSCREW
-
702132-0406B SCREWSCREW
-
857129-08G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
957300-14320 LEVER ASSY, BRAKE (INCL. 10-16)LEVER ASSY, BRAKE (INCL. 10-16)
-
1057420-14320 LEVER, BRAKELEVER, BRAKE
-
1157431-14320 BOLTBOLT
-
1208319-2106A NUTNUT
-
1357441-45C00 ADJUSTER, CABLEADJUSTER, CABLE
-
1457442-45C00 NUTNUT
-
1557512-37F00 BRACKET, HOLDERBRACKET, HOLDER
-
1601547-06207 BOLT 6 X 20BOLT 6 X 20
-
1757211-27C00 GRIP, LEFT HANDGRIP, LEFT HAND
-
1857500-14320 LEVER ASSY, CLUTCH (INCL. 19-25)LEVER ASSY, CLUTCH (INCL. 19-25)
-
1957621-13E00 LEVER, CLUTCHLEVER, CLUTCH
-
2057431-21D11 BOLT, LEVER PIVOTBOLT, LEVER PIVOT
-
2108319-2106A NUTNUT
-
2257441-29F00 ADJUSTER, CABLEADJUSTER, CABLE
-
2357442-45C00 NUTNUT
-
2457512-28C00 BRACKETBRACKET
-
2557513-29F10 BOLTBOLT
-
2657341-29F01 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
