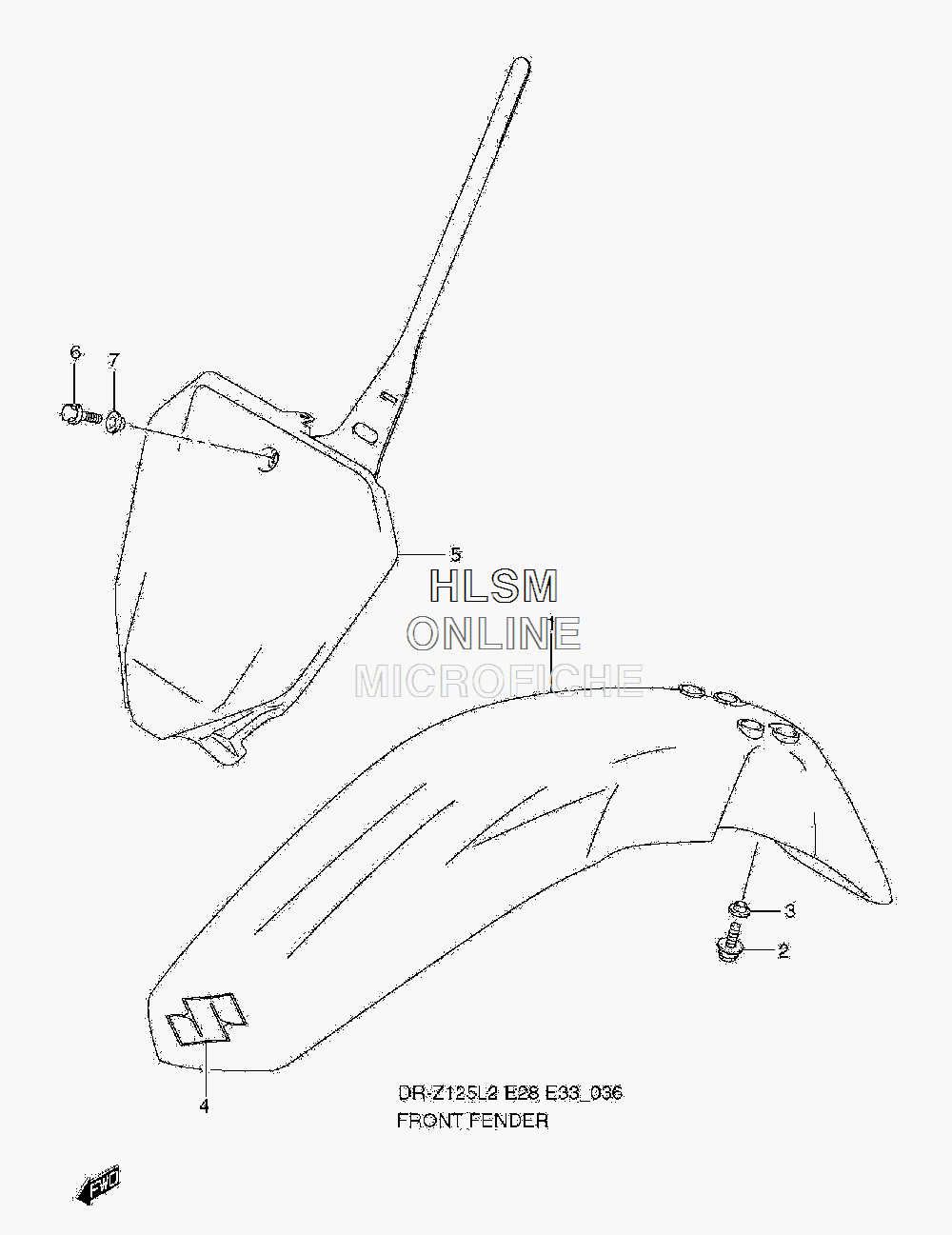

FENDER - FRONT для Suzuki DR-Z125L2 - 2012 года выпуска
-
№АртикулНазвание
-
153111-08G50-YU1 FENDER, FRONT (YU1 - YELLOW)FENDER, FRONT (YU1 - YELLOW)
-
209116-06170 BOLT (6X16)BOLT (6X16)
-
309169-06073 WASHERWASHER
-
468641-43EK0-YCF EMBLEM, ''S''EMBLEM, ''S''
-
594911-08G00-30H PLATE, NUMBER FRONT (30H - WHITE)PLATE, NUMBER FRONT (30H - WHITE)
-
601547-0616A BOLTBOLT
-
709169-06071 WASHERWASHER
