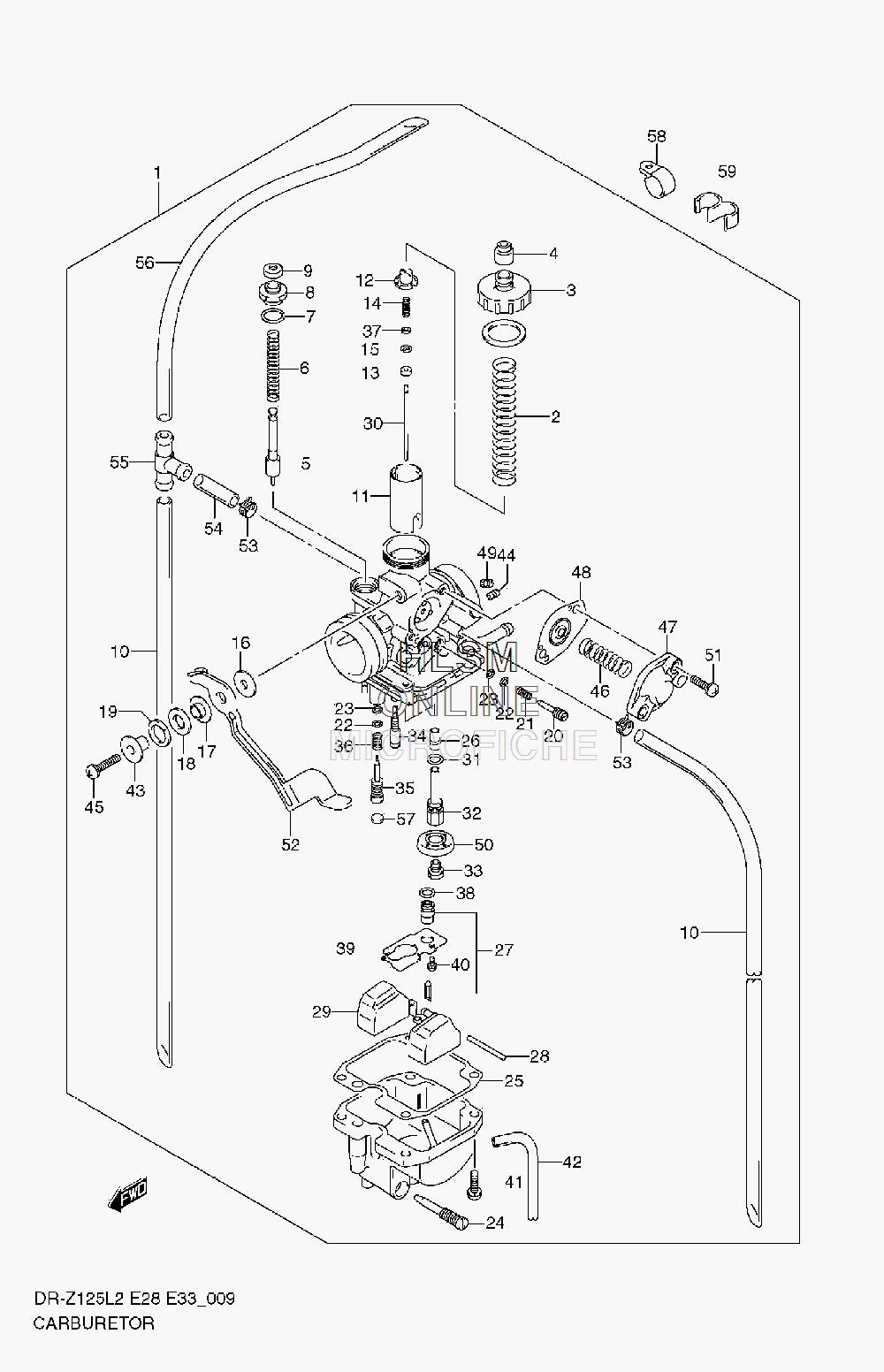

CARBURETOR ASSY. для Suzuki DR-Z125L2 - 2012 года выпуска`
-
№АртикулНазвание
-
113200-08G00 CARBURETOR ASSY (INCL. 2-57)CARBURETOR ASSY (INCL. 2-57)
-
213573-08G00 SPRINGSPRING
-
313261-08G00 MIXING CAP ASSYMIXING CAP ASSY
-
413681-04010 CAPCAP
-
513411-05320 PLUNGER ASSYPLUNGER ASSY
-
613417-08G00 SPRINGSPRING
-
713278-47090 O RINGO RING
-
813418-44080 GUIDE HOLDERGUIDE HOLDER
-
913682-31210 CAPCAP
-
1013686-08G20 HOSE (5X8X475)HOSE (5X8X475)
-
1113551-08G00 PISTON VALVEPISTON VALVE
-
1213389-08G00 HOLDERHOLDER
-
1313387-47010 RINGRING
-
1413481-33E00 SPRINGSPRING
-
1513394-40D20 E RINGE RING
-
1613421-05320 WASHERWASHER
-
1713432-05320 RINGRING
-
1813589-47070 WASHERWASHER
-
1908321-01087 LOCK WASHERLOCK WASHER
-
2013267-08G00 ADJUST SCREWADJUST SCREW
-
2113268-08G00 SPRINGSPRING
-
2213291-29900 WASHERWASHER
-
2313295-29900 O RINGO RING
-
2413247-08G00 SCREWSCREW
-
2513251-29B00 GASKETGASKET
-
2613341-08G00 NEEDLE, JETNEEDLE, JET
-
2713370-08G00 VALVE ASSY, NEEDLEVALVE ASSY, NEEDLE
-
2813254-01010 PINPIN
-
2913240-08G00 FLOAT ASSYFLOAT ASSY
-
3013383-08G00 JET, NEEDLE (5HGM74)JET, NEEDLE (5HGM74)
-
3113246-43010 O RINGO RING
-
3213385-08G00 JET HOLDERJET HOLDER
-
3309491-20012 MAIN JET (102.5)MAIN JET (102.5)
-
3409492-17017 PILOT JET (17.5)PILOT JET (17.5)
-
3513279-08G00 ADJUSTERADJUSTER
-
3613268-47070 SPRINGSPRING
-
3713382-08G00 WASHERWASHER
-
3813374-46710 O RINGO RING
-
3913259-29B10 PLATEPLATE
-
4013601-03068 SCREWSCREW
-
4113601-04148 SCREWSCREW
-
4213684-40A00 HOSEHOSE
-
4313424-05320 RINGRING
-
4409493-85001 AIR JET (85.0)AIR JET (85.0)
-
4513601-44A10 SCREWSCREW
-
4613481-08G00 SPRINGSPRING
-
4713502-10F00 COVER ASSYCOVER ASSY
-
4813480-10F00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
4909492-29002 AIR JET (145.0)AIR JET (145.0)
-
5013387-08G00 HOLDERHOLDER
-
5113601-08G00 SCREWSCREW
-
5213413-08G00 LEVERLEVER
-
5313671-08G00 CLIPCLIP
-
5413686-08G00 HOSE (5X8X25)HOSE (5X8X25)
-
5513685-48B00 NIPPLENIPPLE
-
5613686-08G10 HOSE (5X8X375)HOSE (5X8X375)
-
5713281-05A00 PLUGPLUG
-
5809403-22403 CLAMP, CARB OVERFLOW HOSECLAMP, CARB OVERFLOW HOSE
-
5909408-00033 CLIP, AIR VENT HOSECLIP, AIR VENT HOSE
