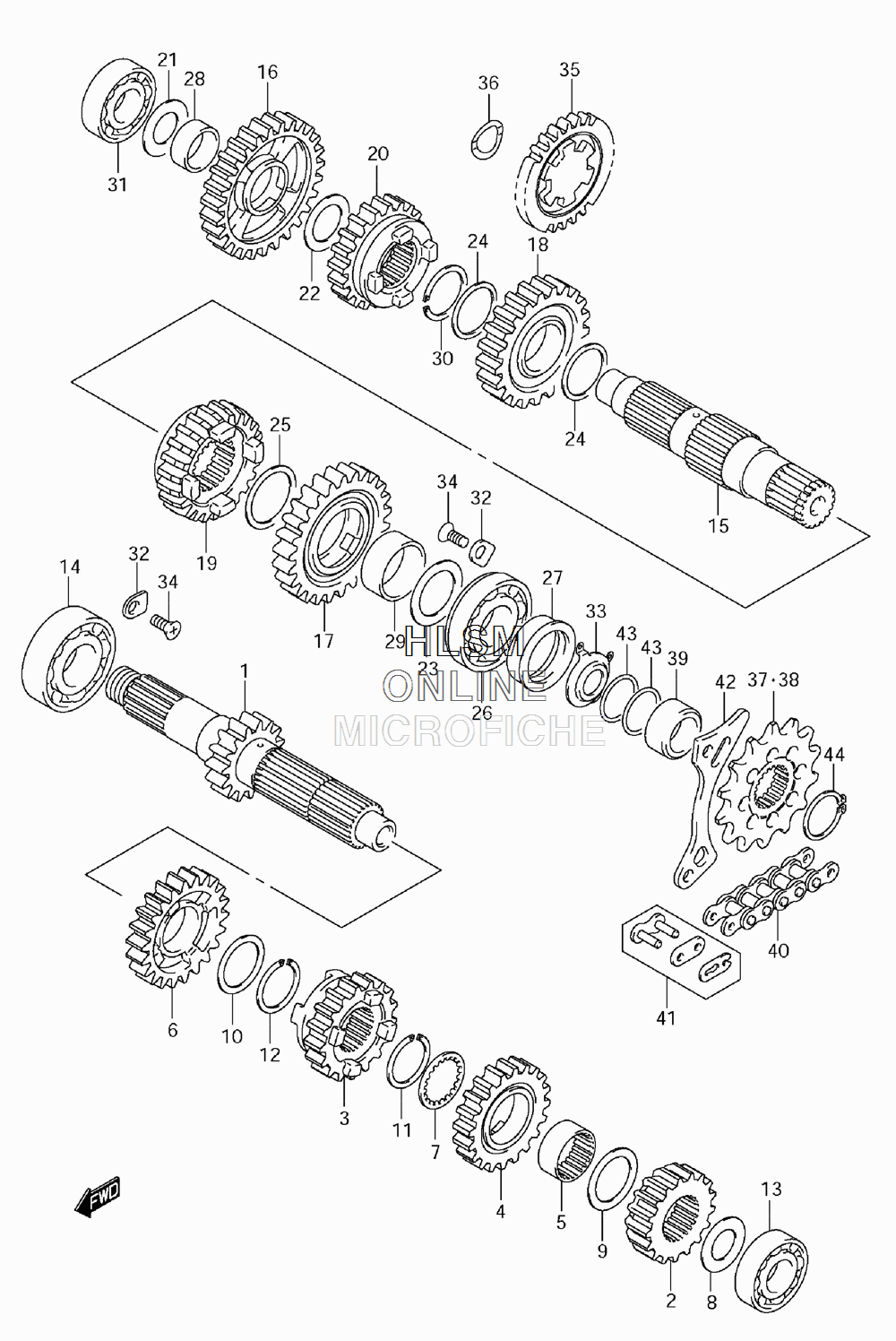

TRANSMISSION для Suzuki RM-Z450L1 - 2011 года выпуска

№

Артикул

Название
1

24120-28H00 SHAFT, COUNTER (NT:15)

SHAFT, COUNTER (NT:15)
2

24221-28H00 GEAR, 2ND DRIVE (NT:17)

GEAR, 2ND DRIVE (NT:17)
3

24231-28H10 GEAR, 3RD DRIVE (NT:17)

GEAR, 3RD DRIVE (NT:17)
4

24241-28H01 GEAR, 4TH DRIVE (NT:20)

GEAR, 4TH DRIVE (NT:20)
5

24242-37F00 BUSH, 4TH DRIVE GEAR

BUSH, 4TH DRIVE GEAR
6

24251-28H00 GEAR, 5TH DRIVE (NT:22)

GEAR, 5TH DRIVE (NT:22)
7

09167-25026 WASHER

WASHER
8

09181-17223 WASHER (17X30X1.0)

WASHER (17X30X1.0)
9

09181-25059 WASHER (25X34X1.0)

WASHER (25X34X1.0)
10

09181-25139 WASHER (25X32X1.0)

WASHER (25X32X1.0)
11

09380-25010 CIRCLIP

CIRCLIP
12

09380-25010 CIRCLIP

CIRCLIP
13

08123-62030 BEARING

BEARING
14

08143-62057 BEARING

BEARING
15

24131-28H00 SHAFT, DRIVE

SHAFT, DRIVE
16

24311-28H00 GEAR, 1ST DRIVEN (NT:27)

GEAR, 1ST DRIVEN (NT:27)
17

24321-28H00 GEAR, 2ND DRIVEN (NT:25)

GEAR, 2ND DRIVEN (NT:25)
18

24331-28H00 GEAR, 3RD DRIVEN (NT:21)

GEAR, 3RD DRIVEN (NT:21)
19

24341-28H00 GEAR, 4TH DRIVEN (NT:21)

GEAR, 4TH DRIVEN (NT:21)
20

24351-28H01 GEAR, 5TH DRIVEN (NT:20)

GEAR, 5TH DRIVEN (NT:20)
21

09181-17223 WASHER (17X30X1.0)

WASHER (17X30X1.0)
22

09181-20195 WASHER (20X30X1.0)

WASHER (20X30X1.0)
23

09181-24005 WASHER (24X34X1.0)

WASHER (24X34X1.0)
24

09181-25111 WASHER (25X30X1.0)

WASHER (25X30X1.0)
25

09181-27015 WASHER (27X33X1.0)

WASHER (27X33X1.0)
26

09262-24001 BEARING (24X56X14)

BEARING (24X56X14)
27

09289-31003 SEAL (31X40X8.5)

SEAL (31X40X8.5)
28

09300-20037 BUSH

BUSH
29

09300-27005 BUSH

BUSH
30

09380-25010 CIRCLIP

CIRCLIP
31

08123-62030 BEARING

BEARING
32

24741-20A00 RETAINER, DRIVE SHAFT BRG

RETAINER, DRIVE SHAFT BRG
33

24751-28H00 RETAINER, DRIVE SHAFT OIL SEAL

RETAINER, DRIVE SHAFT OIL SEAL
34

09126-06011 SCREW (6X12)

SCREW (6X12)
35

26260-35G00 GEAR, KICK STARTER IDLE

GEAR, KICK STARTER IDLE
36

26264-28H00 WASHER, KICK IDLE

WASHER, KICK IDLE
37

27511-35G30 SPROCKET, ENGINE (NT:13)

SPROCKET, ENGINE (NT:13)
38

27511-35G20 SPROCKET, ENGINE (NT:14) (OPT)

SPROCKET, ENGINE (NT:14) (OPT)
39

27531-35G01 SPACER, ENGINE SPROCKET

SPACER, ENGINE SPROCKET
40

27600-35G01-114 CHAIN ASSY, DRIVE

CHAIN ASSY, DRIVE
41

27620-35G01 JOINT SET, CHAIN

JOINT SET, CHAIN
42

27641-35G01 PLATE, FRONT CHAIN GUIDE

PLATE, FRONT CHAIN GUIDE
43

09280-21010 O RING (D:1.9,ID:21.8)

O RING (D:1.9,ID:21.8)
44

08331-3124A CIRCLIP

CIRCLIP
