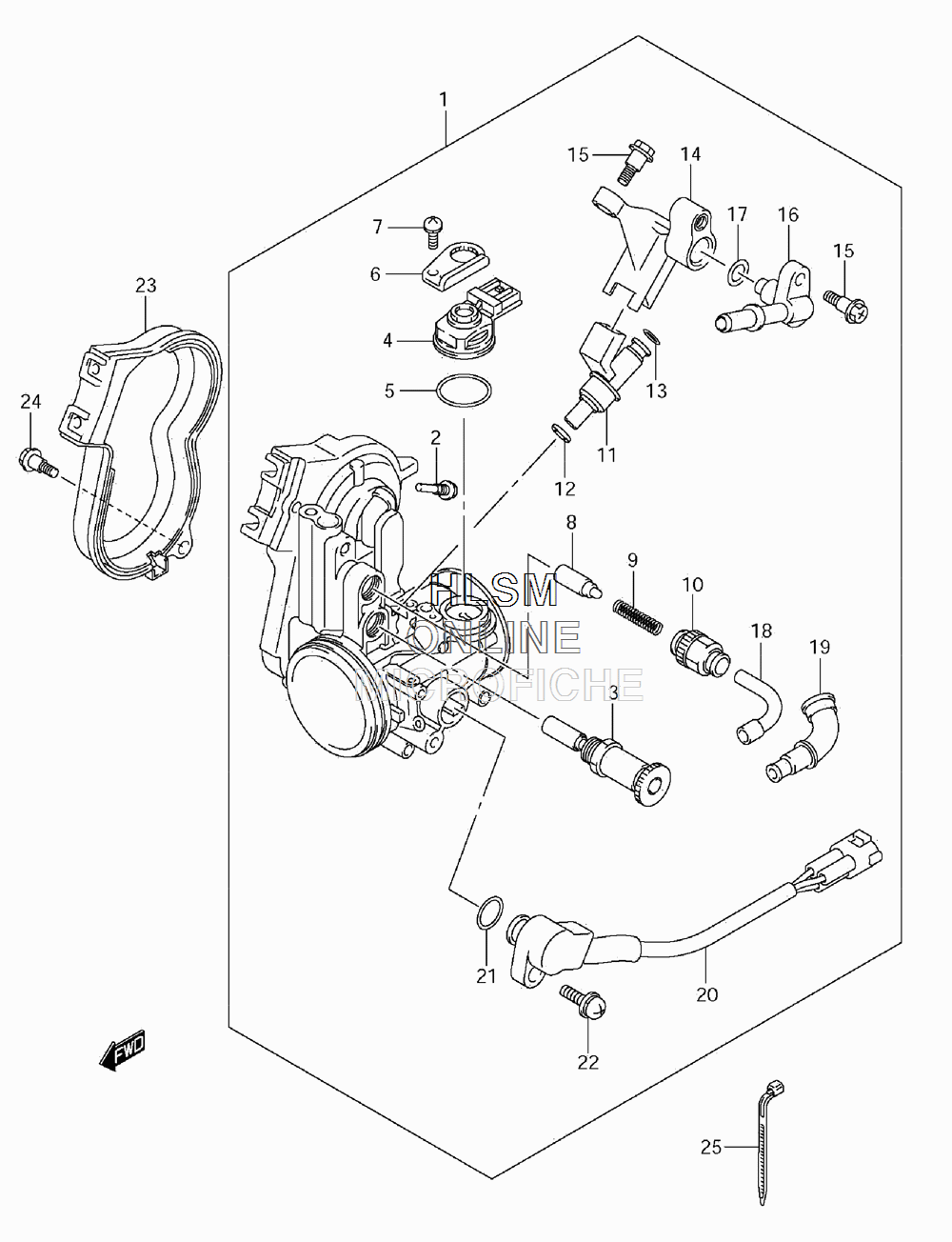

CARBURETOR - THROTTLE BODY для Suzuki RM-Z450L1 - 2011 года выпуска
-
№АртикулНазвание
-
113400-28H30 BODY ASSY, THROTTLE (INCL. 2-22)BODY ASSY, THROTTLE (INCL. 2-22)
-
213296-10H00 SCREW, STOPSCREW, STOP
-
313410-28H00 STARTER VALVESTARTER VALVE
-
415620-05H00 SENSOR, MAPSENSOR, MAP
-
515621-05H00 O RINGO RING
-
613565-28H00 PLATE, STAYPLATE, STAY
-
713601-15F20 SCREWSCREW
-
813411-28H00 STARTER VALVESTARTER VALVE
-
913271-45G00 SPRINGSPRING
-
1013581-45G00 HOLDER, CABLEHOLDER, CABLE
-
1115710-02J00 INJECTOR ASSYINJECTOR ASSY
-
1215722-21H00 RING, SEALRING, SEAL
-
1315721-21H00 O RINGO RING
-
1413471-28H00 FUEL PIPEFUEL PIPE
-
1513452-28H00 SCREWSCREW
-
1613685-28H00 JOINTJOINT
-
1715721-24F00 O RINGO RING
-
1813579-28H00 GUIDE, CABLEGUIDE, CABLE
-
1913681-45G00 CAPCAP
-
2013580-28H10 SENSOR ASSY, THROTTLESENSOR ASSY, THROTTLE
-
2113575-40F00 O RINGO RING
-
2213605-28H00 SCREWSCREW
-
2313484-28H00 COVERCOVER
-
2413601-28H00 BOLTBOLT
-
2509407-10403 CLAMP (L:95)CLAMP (L:95)
