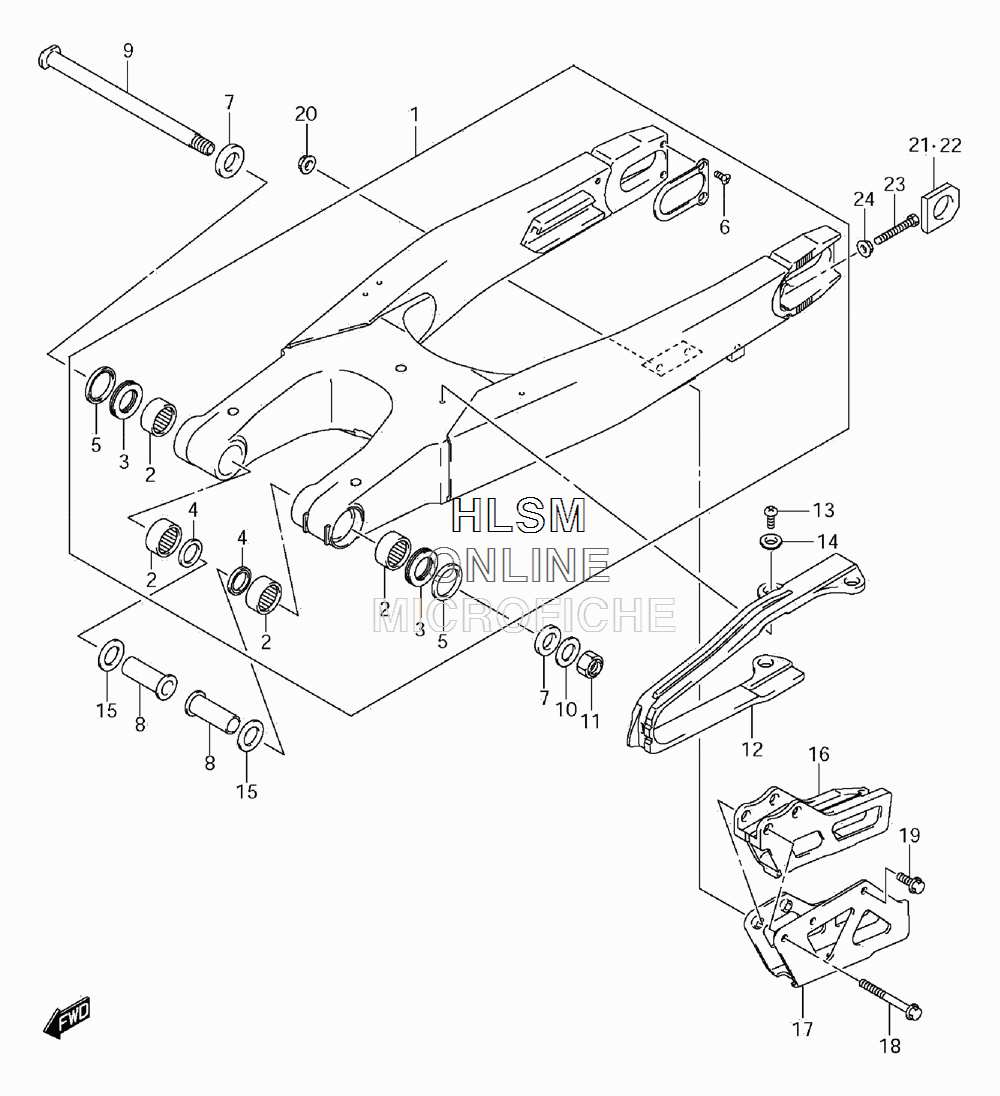

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki RM-Z450L1 - 2011 года выпуска
-
№АртикулНазвание
-
161000-28H10 SWINGING ARM ASSY, REAR (INCL. 2-6)SWINGING ARM ASSY, REAR (INCL. 2-6)
-
209263-22070 BEARING (22X29X30)BEARING (22X29X30)
-
309263-22064 BEARING (22X35X2)BEARING (22X35X2)
-
409285-22001 SEAL (22X29X4)SEAL (22X29X4)
-
561262-36E00 SEAL, OUTER (29.2X37X4)SEAL, OUTER (29.2X37X4)
-
602122-0410B SCREWSCREW
-
761251-36E01 SPACER, PIVOT OUTERSPACER, PIVOT OUTER
-
861252-37F01 SPACER, PIVOT INNERSPACER, PIVOT INNER
-
961211-35G00 SHAFT, PIVOTSHAFT, PIVOT
-
1008322-0116B WASHERWASHER
-
1109159-16007 NUTNUT
-
1261273-35G10 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1302112-0508B SCREWSCREW
-
1409169-05022 WASHERWASHER
-
1508211-22365 WASHERWASHER
-
1661341-35G10 GUIDE, CHAINGUIDE, CHAIN
-
1761342-37F00 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1809103-06242 BOLT (6X45)BOLT (6X45)
-
1909103-06233 BOLT (6X12)BOLT (6X12)
-
2008316-1006B NUTNUT
-
2161445-28H11 WASHER, CHAIN ADJUSTER RIGHTWASHER, CHAIN ADJUSTER RIGHT
-
2261446-35G01 WASHER, CHAIN ADJUSTER LEFTWASHER, CHAIN ADJUSTER LEFT
-
2309100-08287 BOLT (8X50)BOLT (8X50)
-
2409159-08034 NUTNUT
