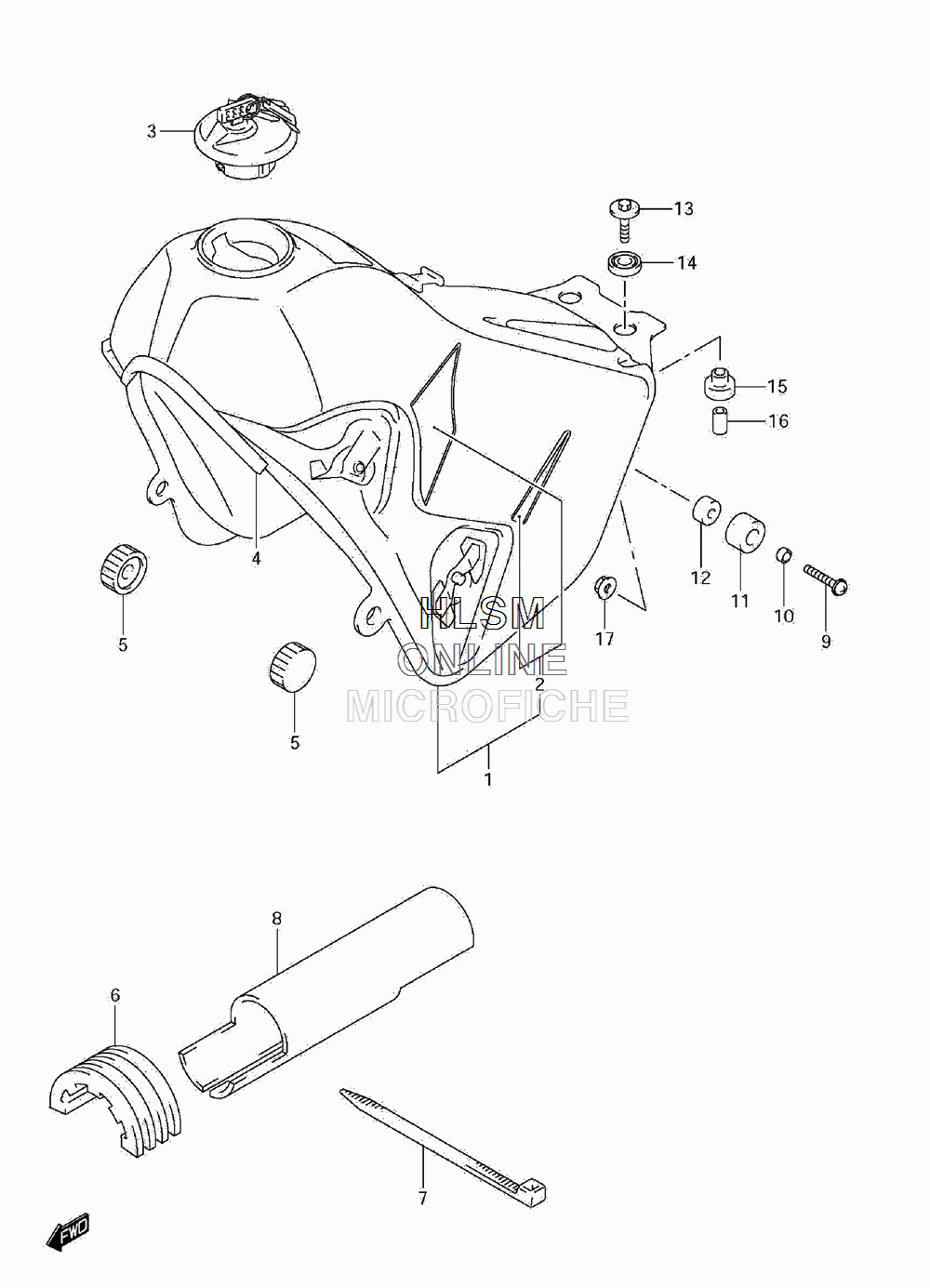

FUEL TANK (CANADA) для Suzuki DRZ-400SL1 - 2011 года выпуска`
-
№АртикулНазвание
-
149200-29F30-3WX TANK ASSY, FUEL (INCL. 2) (BLACK) (FOR 019)TANK ASSY, FUEL (INCL. 2) (BLACK) (FOR 019)
-
149200-29F30-5UX TANK ASSY, FUEL (INCL. 2) (WHITE) (FOR 30H)TANK ASSY, FUEL (INCL. 2) (WHITE) (FOR 30H)
-
268120-29F20-HLY TAPE SET (WHITE/BLACK) (FOR 3WX)TAPE SET (WHITE/BLACK) (FOR 3WX)
-
268120-29F20-HLZ TAPE SET (WHITE/BLUE) (FOR 5UX)TAPE SET (WHITE/BLUE) (FOR 5UX)
-
344200-29820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
468241-04X50-300 MOLDING, FUEL TANKMOLDING, FUEL TANK
-
509329-10016 CUSHIONCUSHION
-
644541-29F00 CUSHION, UPPERCUSHION, UPPER
-
709407-30402 CLAMPCLAMP
-
844194-29F00 SHIELD, FUEL TANKSHIELD, FUEL TANK
-
902112-1630B SCREWSCREW
-
1009180-06215 SPACER (6.5X20X9)SPACER (6.5X20X9)
-
1145149-14D00 CUSHION, SIDECUSHION, SIDE
-
1209180-06306 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1309116-06214 BOLT (6X30)BOLT (6X30)
-
1409320-14022 CUSHIONCUSHION
-
1509320-10020 CUSHIONCUSHION
-
1609180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1708319-3106B NUTNUT
