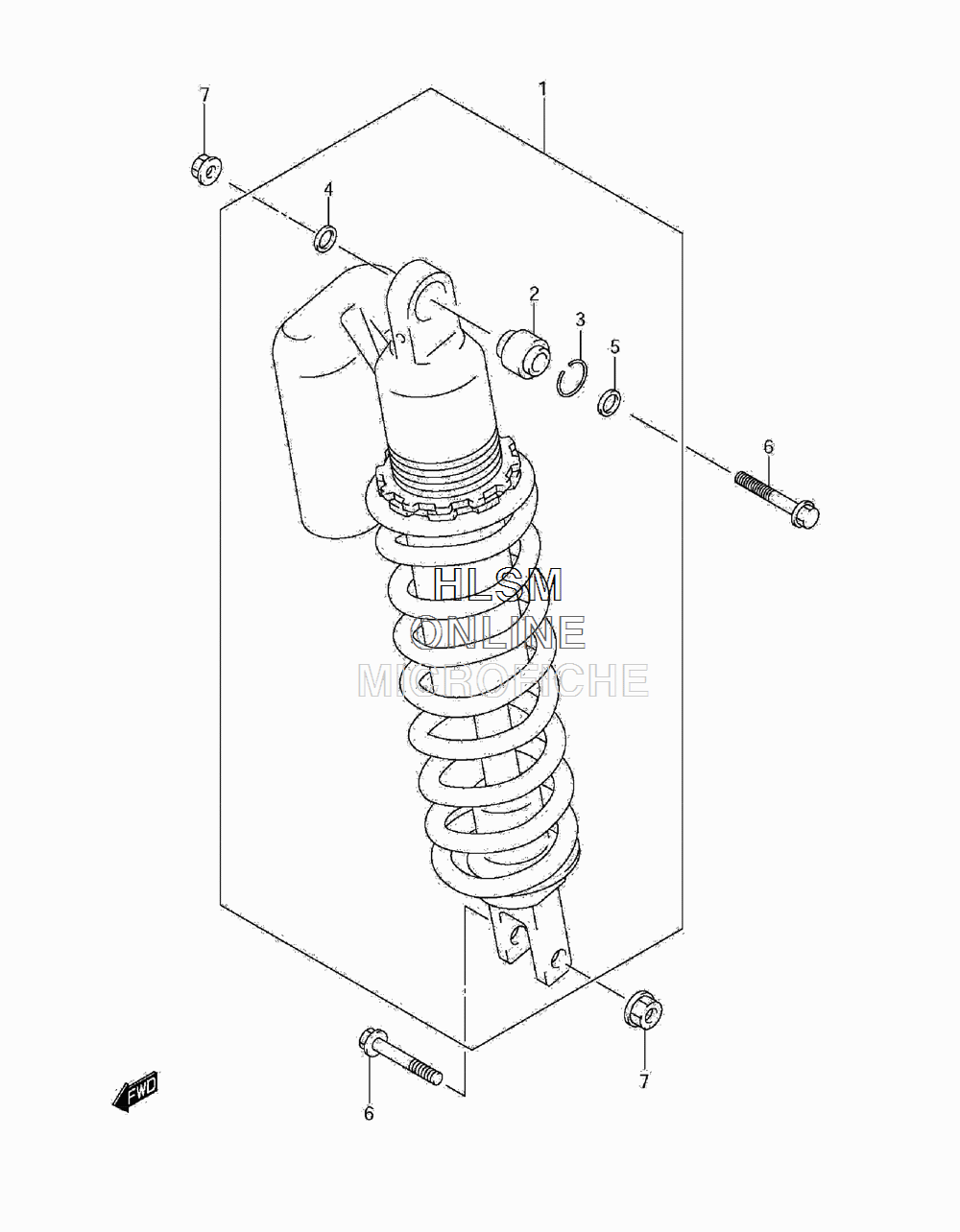

SUSPENSION - SHOCKS REAR для Suzuki DRZ-400SL1 - 2011 года выпуска
-
№АртикулНазвание
-
162100-29F90-28W ABSORBER ASSY, REAR SHOCK (WHITE) (INCL. 2-5)ABSORBER ASSY, REAR SHOCK (WHITE) (INCL. 2-5)
-
262175-36E00 BEARING REAR SHOCK ABSORBERBEARING REAR SHOCK ABSORBER
-
362277-27C40 RING, STOPPERRING, STOPPER
-
462226-36E00 SEAL, DUST UPPER RIGHT HANDSEAL, DUST UPPER RIGHT HAND
-
562226-36E10 SEAL, DUST UPPER LEFT HANDSEAL, DUST UPPER LEFT HAND
-
609103-10149 BOLT (10X47.5)BOLT (10X47.5)
-
709159-10115 NUTNUT
