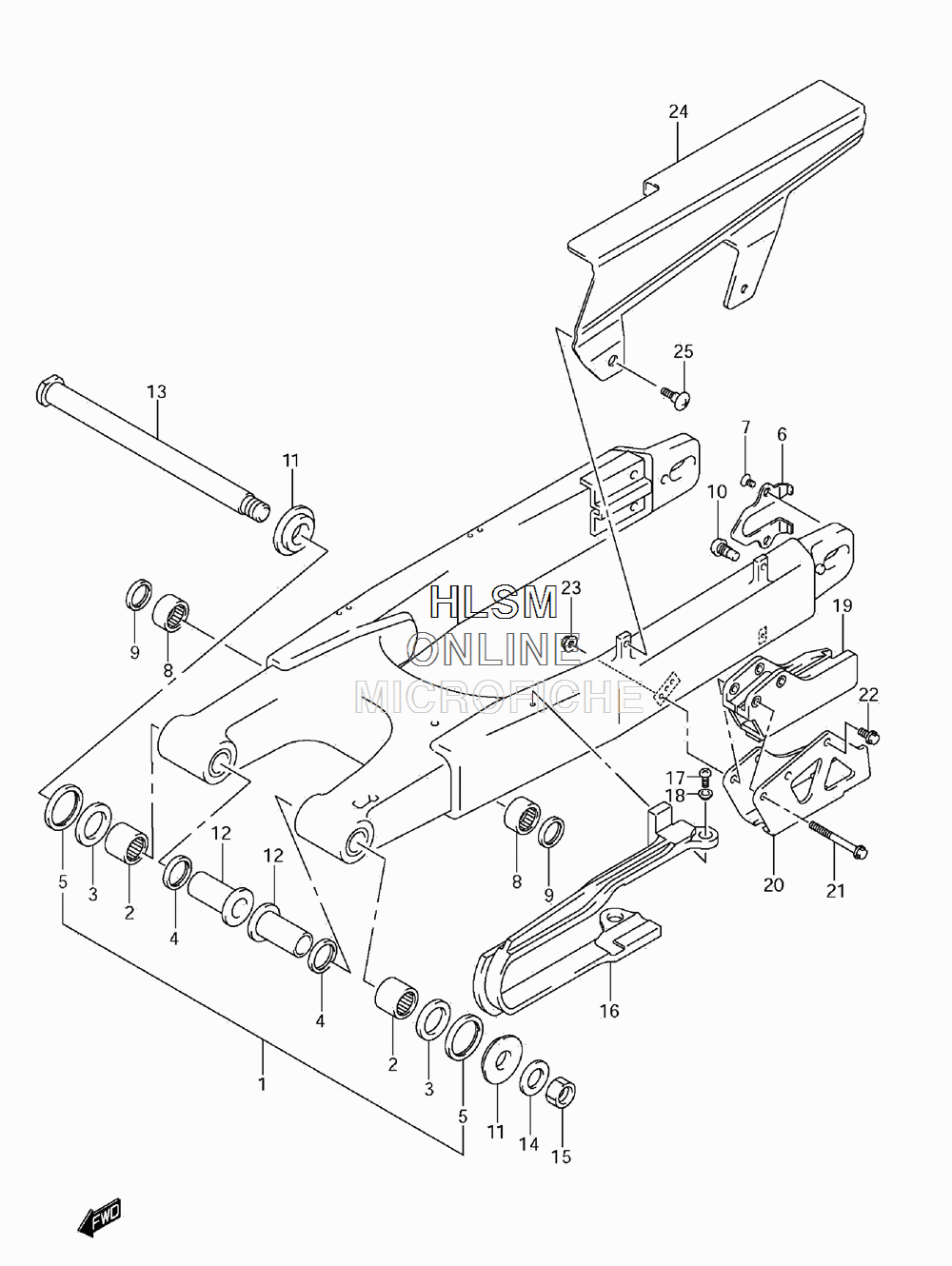

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki DRZ-400SL1 - 2011 года выпуска
-
№АртикулНазвание
-
161000-29F10 SWINGING ARM ASSY, REAR (INCL. 2-5)SWINGING ARM ASSY, REAR (INCL. 2-5)
-
209263-22017 BEARING (22X29X30)BEARING (22X29X30)
-
309263-22064 BEARING (22X35X2)BEARING (22X35X2)
-
409285-22001 OIL SEAL (22X29X4)OIL SEAL (22X29X4)
-
561262-36E00 SEAL, REAR SWINGING ARM PIVOT OUTERSEAL, REAR SWINGING ARM PIVOT OUTER
-
661128-29E00 PLATE, REAR SWINGING ARM AXLEPLATE, REAR SWINGING ARM AXLE
-
709126-05009 SCREW (5X8)SCREW (5X8)
-
809263-20086 BEARING (20X27X15)BEARING (20X27X15)
-
962624-14500 SEAL, REAR CUSHION RODSEAL, REAR CUSHION ROD
-
1061431-13E00 STOPPER, CHAIN ADJUSTERSTOPPER, CHAIN ADJUSTER
-
1161250-44E00 SPACER, SWINGING ARM PIVOT OUTERSPACER, SWINGING ARM PIVOT OUTER
-
1261252-36E00 SPACER, SWINGING ARM PIVOT INNERSPACER, SWINGING ARM PIVOT INNER
-
1361211-29F00 SHAFT, REAR SWINGING ARM PIVOTSHAFT, REAR SWINGING ARM PIVOT
-
1408322-0116B WASHERWASHER
-
1509159-16007 NUTNUT
-
1661273-29F00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1702112-0508B SCREWSCREW
-
1809169-05022 WASHERWASHER
-
1961341-37F00 GUIDE, CHAINGUIDE, CHAIN
-
2061342-36E30 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
2101547-0650B BOLTBOLT
-
2201547-0612B BOLTBOLT
-
2308319-3106B NUTNUT
-
2461310-34E00 CASE, CHAINCASE, CHAIN
-
2509139-06083 SCREW (6X16)SCREW (6X16)
