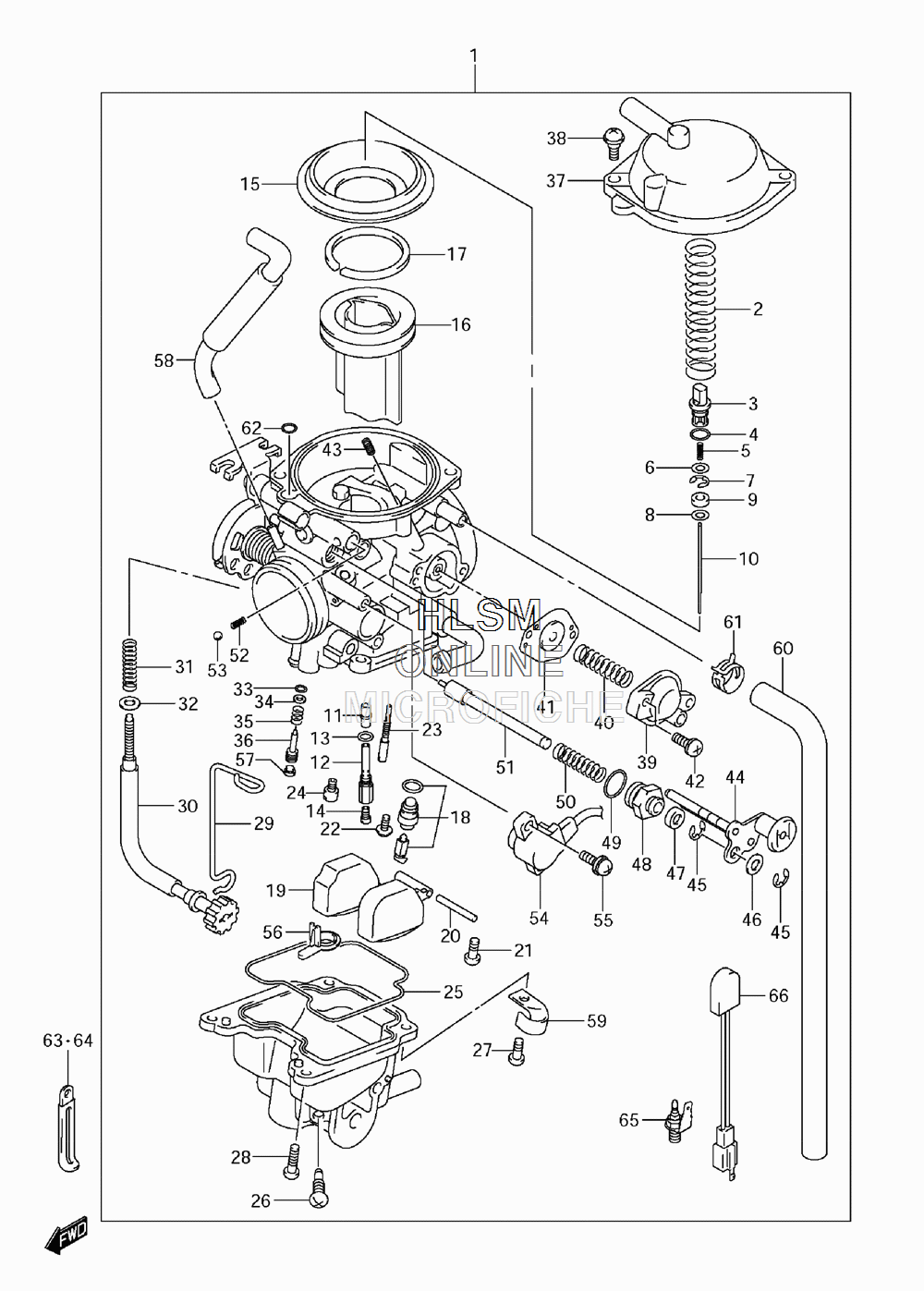

CARBURETOR ASSY. (CALIF ONLY) для Suzuki DRZ-400SL1 - 2011 года выпуска`
-
№АртикулНазвание
-
113200-29FC3 CARBURETOR ASSY (INCL. 2-64)CARBURETOR ASSY (INCL. 2-64)
-
213573-07F00 SPRINGSPRING
-
313418-33E00 HOLDERHOLDER
-
409280-05004 O RING (D:1.9,ID:4.8)O RING (D:1.9,ID:4.8)
-
513481-04F00 SPRINGSPRING
-
613382-19E00 WASHERWASHER
-
713394-17E60 E RING, MULTIPLE JET NOZZLEE RING, MULTIPLE JET NOZZLE
-
813387-13F00 RINGRING
-
913291-29FA0 WASHERWASHER
-
1013383-29FB0 NEEDLE, JET (5DH37-1)NEEDLE, JET (5DH37-1)
-
1109494-00939 JET, NEEDLE (P-0M)JET, NEEDLE (P-0M)
-
1213385-29FA0 HOLDER, JETHOLDER, JET
-
1313246-43010 O RINGO RING
-
1409491-28012 JET, MAIN (142.5)JET, MAIN (142.5)
-
1513507-17C01 DIAPHRAGMDIAPHRAGM
-
1613501-29FA0 VALVE, PISTONVALVE, PISTON
-
1713504-14E00 RINGRING
-
1813370-29FA0 VALVE ASSY, NEEDLEVALVE ASSY, NEEDLE
-
1913250-04F00 FLOAT ASSYFLOAT ASSY
-
2013254-01010 PIN, FLOATPIN, FLOAT
-
2102112-0408A SCREWSCREW
-
2213602-05A10 SCREWSCREW
-
2309492-22014 JET, PILOT (22.5)JET, PILOT (22.5)
-
2409491-62006 JET, MAIN AIR (62.5)JET, MAIN AIR (62.5)
-
2513258-04F00 GASKETGASKET
-
2613247-13A00 SCREW, DRAINSCREW, DRAIN
-
2702112-04107 SCREWSCREW
-
2802112-0412A SCREWSCREW
-
2913671-29FA0 CLIPCLIP
-
3013267-29FA0 ADJUST SCREW ASSYADJUST SCREW ASSY
-
3113268-37420 SPRING, THROTTLE SCREWSPRING, THROTTLE SCREW
-
3213615-43010 WASHERWASHER
-
3313295-29900 O RINGO RING
-
3413291-29900 WASHERWASHER
-
3513268-48700 SPRING, THROTTLE SCREWSPRING, THROTTLE SCREW
-
3613279-33E00 ADJUSTERADJUSTER
-
3713502-29FA0 DIAPHRAGM COVERDIAPHRAGM COVER
-
3813247-33E00 SCREWSCREW
-
3913502-08F00 COVER ASSYCOVER ASSY
-
4013481-41F20 SPRINGSPRING
-
4113480-10F00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
4213601-04148 SCREWSCREW
-
4309492-27010 JET, PILOT AIR (135)JET, PILOT AIR (135)
-
4413420-29FA0 PLATE ASSYPLATE ASSY
-
4513415-38300 E RINGE RING
-
4613427-38300 WASHERWASHER
-
4713682-31210 CAP, STARTER VALVECAP, STARTER VALVE
-
4813418-44080 HOLDER, GUIDEHOLDER, GUIDE
-
4913278-47090 O RINGO RING
-
5013417-43010 SPRING, STARTER VALVESPRING, STARTER VALVE
-
5113411-29FA0 PLUNGER ASSYPLUNGER ASSY
-
5213434-43010 SPRINGSPRING
-
5313596-93010 STEEL BALLSTEEL BALL
-
5413580-21F00 SENSOR ASSYSENSOR ASSY
-
5513602-19B50 SCREWSCREW
-
5613387-29FA1 RINGRING
-
5713281-05A00 PLUGPLUG
-
5813683-29FB0 HOSEHOSE
-
5913671-14D00 PLATEPLATE
-
6013684-29FB0 HOSE, AIR VENT (6.5X10.5)HOSE, AIR VENT (6.5X10.5)
-
6113671-19F00 CLIPCLIP
-
6213295-33010 O RINGO RING
-
6309404-06429 CLAMP (L:45)CLAMP (L:45)
-
6409404-08420 CLAMP (L:120)CLAMP (L:120)
-
6513650-25E01 HEATER ASSY, CARBURETOR (OPT)HEATER ASSY, CARBURETOR (OPT)
-
6613655-16F00 SWITCH, CARB HEATER THERMO (OPT)SWITCH, CARB HEATER THERMO (OPT)
