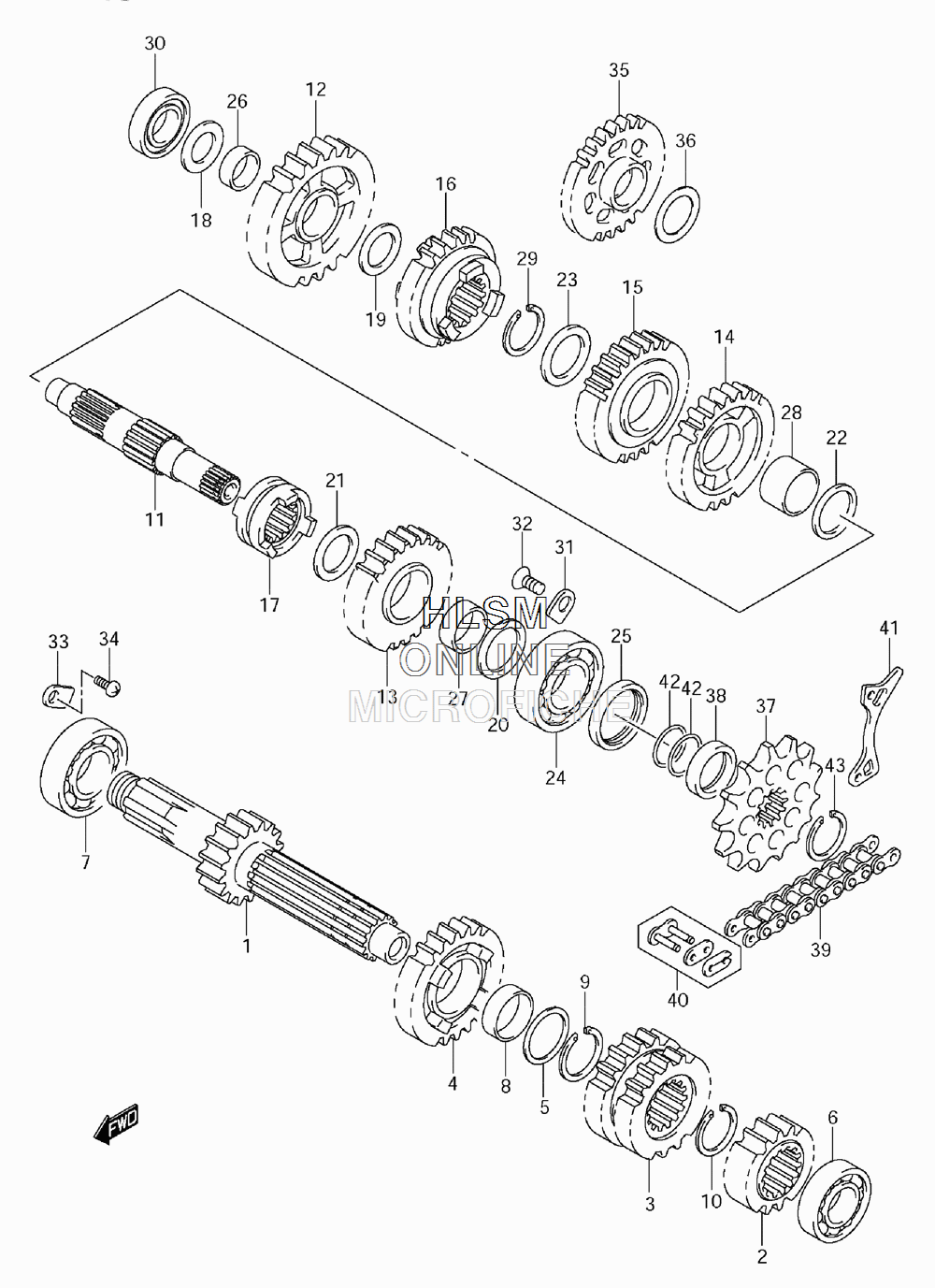

TRANSMISSION для Suzuki RM-Z250L0 - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-10H01 SHAFT, COUNTER, NT:13
    SHAFT, COUNTER, NT:13
  • 2
    24221-10H00 GEAR, 2ND DRIVE, NT:17
    GEAR, 2ND DRIVE, NT:17
  • 3
    24231-10H01 GEAR, 3RD AND 4TH DRIVE NT:17/21
    GEAR, 3RD AND 4TH DRIVE NT:17/21
  • 4
    24251-10H00 GEAR, 5TH DRIVE, NT:22
    GEAR, 5TH DRIVE, NT:22
  • 5
    09181-24009 WASHER, 5TH DRIVE
    WASHER, 5TH DRIVE
  • 6
    09262-17040 BEARING, CNTR SHAFT, LEFT
    BEARING, CNTR SHAFT, LEFT
  • 7
    09262-22018 BEARING, CNTR SHAFT, RIGHT
    BEARING, CNTR SHAFT, RIGHT
  • 8
    09300-24004 BUSH, 5TH DRIVE
    BUSH, 5TH DRIVE
  • 9
    09380-24007 CIRCLIP, 5TH DRIVE
    CIRCLIP, 5TH DRIVE
  • 10
    09380-24007 CIRCLIP, 2ND DRIVE
    CIRCLIP, 2ND DRIVE
  • 11
    24131-10H01 SHAFT, DRIVE
    SHAFT, DRIVE
  • 12
    24311-10H01 GEAR, 1ST DRIVEN, NT:28
    GEAR, 1ST DRIVEN, NT:28
  • 13
    24321-10H00 GEAR, 2ND DRIVEN, NT:30
    GEAR, 2ND DRIVEN, NT:30
  • 14
    24331-10H00 GEAR, 3RD DRIVEN, NT:25
    GEAR, 3RD DRIVEN, NT:25
  • 15
    24341-10H00 GEAR, 4TH DRIVEN, NT:26
    GEAR, 4TH DRIVEN, NT:26
  • 16
    24351-10H00 GEAR, 5TH DRIVEN, NT:24
    GEAR, 5TH DRIVEN, NT:24
  • 17
    24412-10H00 DOG, SLIDING
    DOG, SLIDING
  • 18
    09181-17195 WASHER, 1ST DRIVEN, RIGHT
    WASHER, 1ST DRIVEN, RIGHT
  • 19
    09181-20167 WASHER, 1ST DRIVEN, LEFT
    WASHER, 1ST DRIVEN, LEFT
  • 20
    24322-49H00 WASHER, 2ND DRIVEN GEAR, LEFT
    WASHER, 2ND DRIVEN GEAR, LEFT
  • 21
    09181-22167 WASHER, 2ND DRIVEN GEAR, RIGHT
    WASHER, 2ND DRIVEN GEAR, RIGHT
  • 22
    09181-24008 WASHER, 3RD DRIVEN GEAR
    WASHER, 3RD DRIVEN GEAR
  • 23
    09181-24008 WASHER, 4TH DRIVEN GEAR
    WASHER, 4TH DRIVEN GEAR
  • 24
    09262-20147 BEARING, DRIVE SHAFT, LEFT
    BEARING, DRIVE SHAFT, LEFT
  • 25
    09289-28012 SEAL, DRIVE SHAFT OIL
    SEAL, DRIVE SHAFT OIL
  • 26
    09300-20037 BUSH, 1ST DRIVEN GEAR
    BUSH, 1ST DRIVEN GEAR
  • 27
    09300-22020 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 28
    09300-24003 BUSH, 3RD AND 4TH DRIVEN
    BUSH, 3RD AND 4TH DRIVEN
  • 29
    09380-24007 CIRCLIP, 4TH DRIVEN GEAR
    CIRCLIP, 4TH DRIVEN GEAR
  • 30
    09262-17023 BEARING, DRIVE SHAFT, R
    BEARING, DRIVE SHAFT, R
  • 31
    24741-20A00 RETAINER, DRIVE SHAFT BRG
    RETAINER, DRIVE SHAFT BRG
  • 32
    09126-06011 SCREW, DRIVE SHAFT (6X12)
    SCREW, DRIVE SHAFT (6X12)
  • 33
    24741-21A00 RETAINER, CNTR SHAFT
    RETAINER, CNTR SHAFT
  • 34
    09125-06110 SCREW, CNTR SHAFT (6X12)
    SCREW, CNTR SHAFT (6X12)
  • 35
    26260-49H00 GEAR, KICK STARTER IDLE
    GEAR, KICK STARTER IDLE
  • 36
    26264-28H00 WASHER, KICK IDLE
    WASHER, KICK IDLE
  • 37
    27511-14121 SPROCKET, ENGINE, NT:13
    SPROCKET, ENGINE, NT:13
  • 38
    27531-43D00 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 39
    27600-43D01-114 CHAIN ASSY, DRIVE
    CHAIN ASSY, DRIVE
  • 40
    27620-43D01 JOINT SET, CHAIN
    JOINT SET, CHAIN
  • 41
    27641-10H00 PLATE, FRONT CHAIN GUIDE
    PLATE, FRONT CHAIN GUIDE
  • 42
    09280-20006 O RING, SPROCKET SPACER
    O RING, SPROCKET SPACER
  • 43
    09380-20007 CIRCLIP, ENGINE SPROCKET
    CIRCLIP, ENGINE SPROCKET
