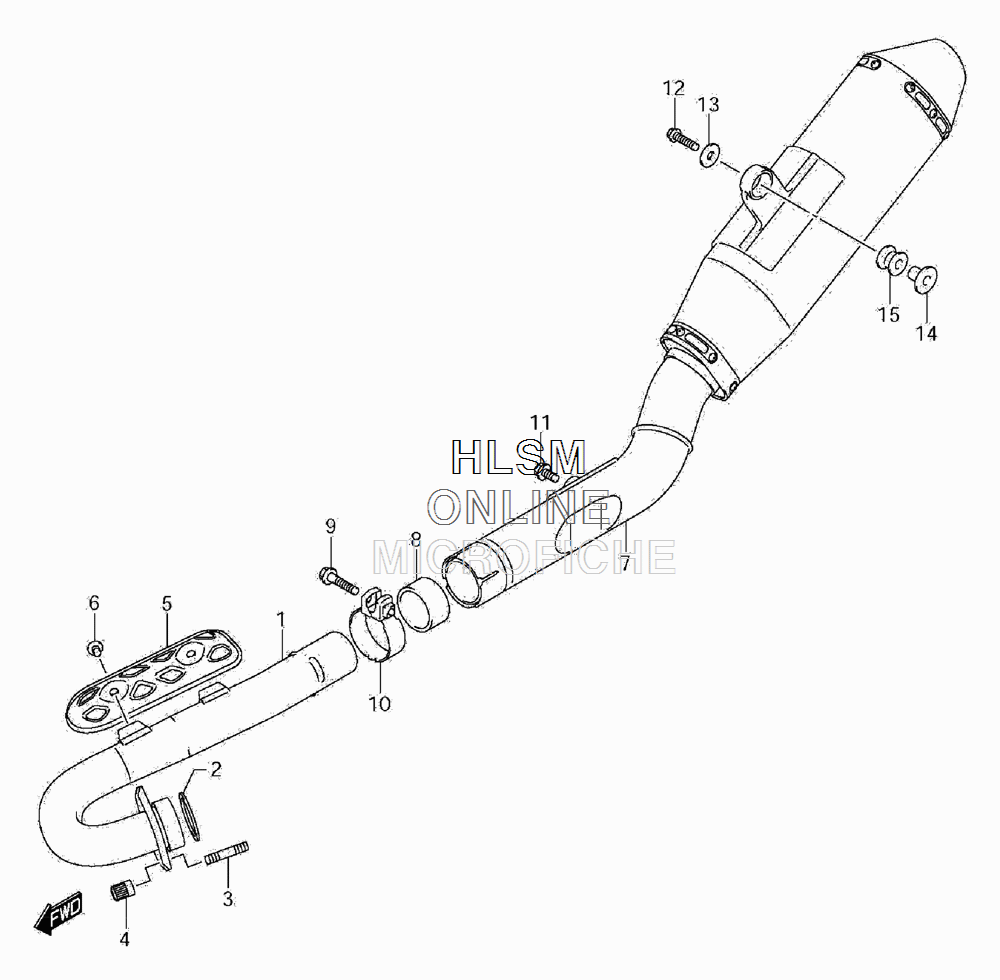

MUFFLER для Suzuki RM-Z250L0 - 2010 года выпуска
-
№АртикулНазвание
-
114150-49H10 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-49H00 GASKETGASKET
-
301421-0816A BOLT, STUDBOLT, STUD
-
409159-08112 NUTNUT
-
514186-49H00 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
609139-06178 SCREW (6X8)SCREW (6X8)
-
714310-49H10 BODY, MUFFLERBODY, MUFFLER
-
814771-45G00 CONNECTORCONNECTOR
-
907120-0835B BOLTBOLT
-
1014469-29F00 CLAMP, CONNECTORCLAMP, CONNECTOR
-
1109103-08426 BOLT (8X20)BOLT (8X20)
-
1209103-08391 BOLT (8X35)BOLT (8X35)
-
1309160-08151 WASHERWASHER
-
1409180-08157 SPACERSPACER
-
1509320-12043 CUSHIONCUSHION
