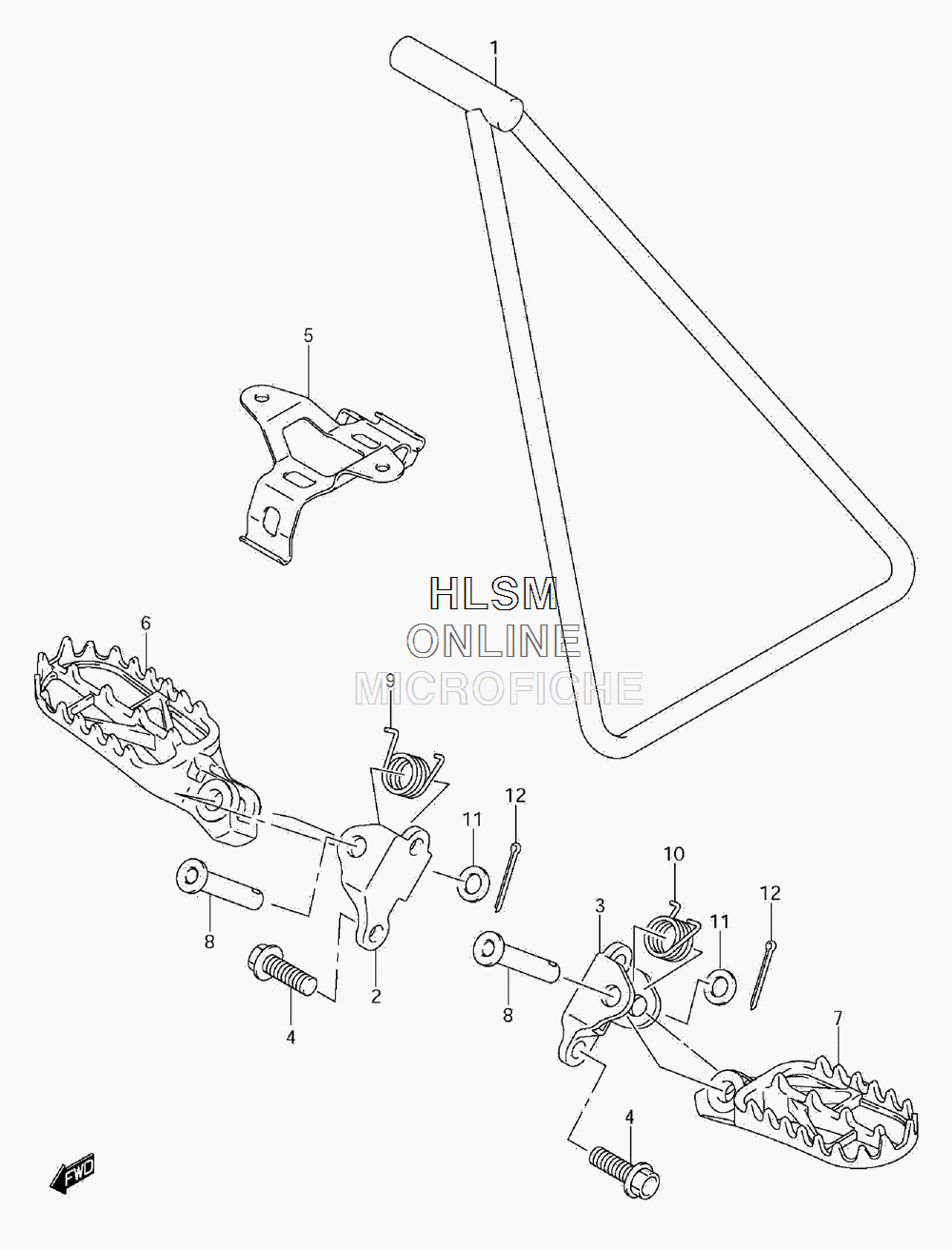

FOOTREST для Suzuki RM-Z250L0 - 2010 года выпуска
-
№АртикулНазвание
-
142310-28H00 STANDSTAND
-
241855-28H10 BRACKET, FOOTREST RIGHT HANDBRACKET, FOOTREST RIGHT HAND
-
341865-28H10 BRACKET, FOOTREST LEFT HANDBRACKET, FOOTREST LEFT HAND
-
409103-10415 BOLTBOLT
-
541347-49H00 BRACKET, ECUBRACKET, ECU
-
643551-28H10 FOOTREST, RIGHT HANDFOOTREST, RIGHT HAND
-
743561-28H10 FOOTREST, LEFT HANDFOOTREST, LEFT HAND
-
809200-10019 PINPIN
-
909448-21012 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
1009448-21013 SPRING, LEFT HANDSPRING, LEFT HAND
-
1109160-10121 WASHERWASHER
-
1204111-2520A COTTER PINCOTTER PIN
