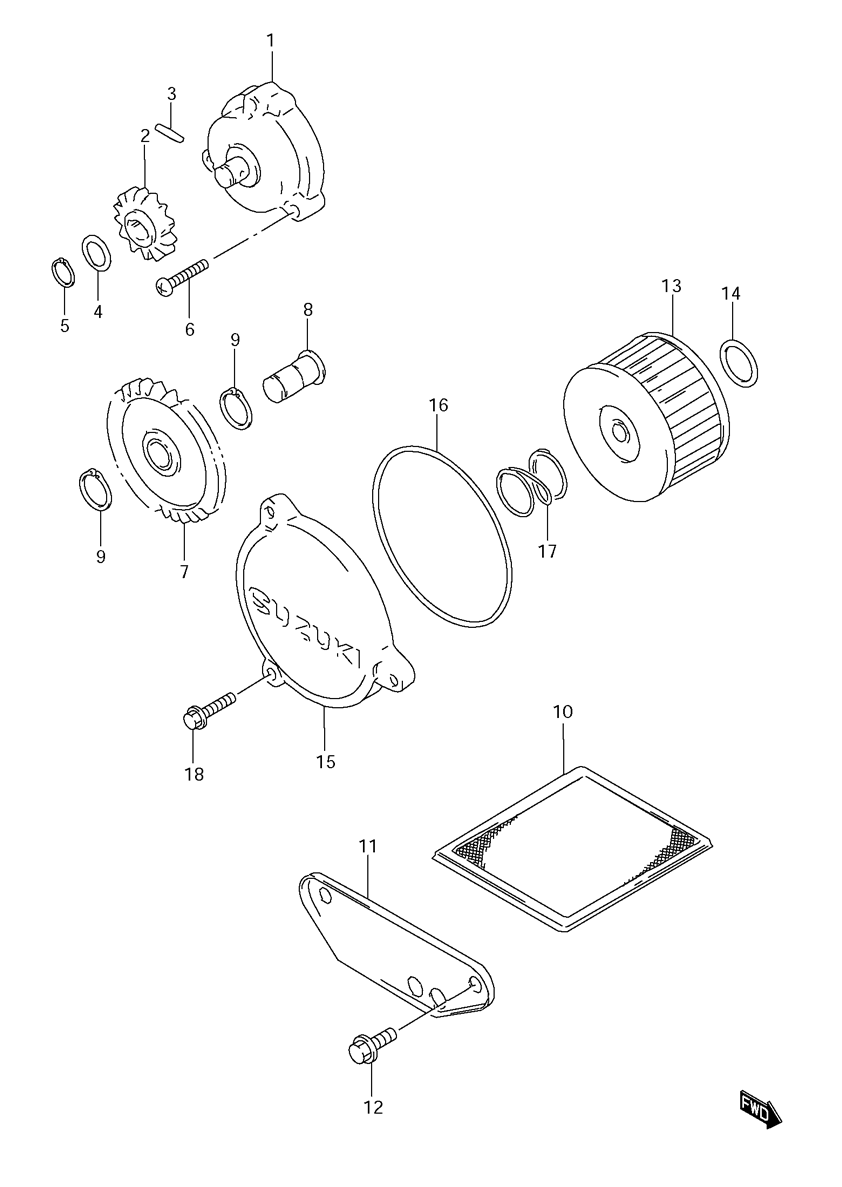

OIL PUMP для Suzuki DR-650SMK9 - 2009 года выпуска`
-
№АртикулНазвание
-
116400-32E00 PUMP, ENGINE OILPUMP, ENGINE OIL
-
216331-32E00 GEAR, DRIVEN (NO. OF TEETH: 15)GEAR, DRIVEN (NO. OF TEETH: 15)
-
309261-04009 PINPIN
-
409181-10186 WASHER (10X20X0.5)WASHER (10X20X0.5)
-
508331-31106 CIRCLIPCIRCLIP
-
602112-0625B SCREWSCREW
-
716321-32E00 GEAR, OIL PUMP DRIVE (NO. OF TEETH: 30)GEAR, OIL PUMP DRIVE (NO. OF TEETH: 30)
-
816322-32E01 SHAFTSHAFT
-
908331-31126 CIRCLIPCIRCLIP
-
1016520-32E00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
1116523-32E00 CAPCAP
-
1209103-06285 BOLT (6X12)BOLT (6X12)
-
1316510-37450 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1409280-15007 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 15.8)O RING (DIAMETER: 2.4,INSIDE DIAMETER: 15.8)
-
1516512-14D00 CAP, OIL FILTERCAP, OIL FILTER
-
1609280-72001 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 73)O RING (DIAMETER: 2.4,INSIDE DIAMETER: 73)
-
1709440-21006 SPRINGSPRING
-
1801547-06167 BOLTBOLT
