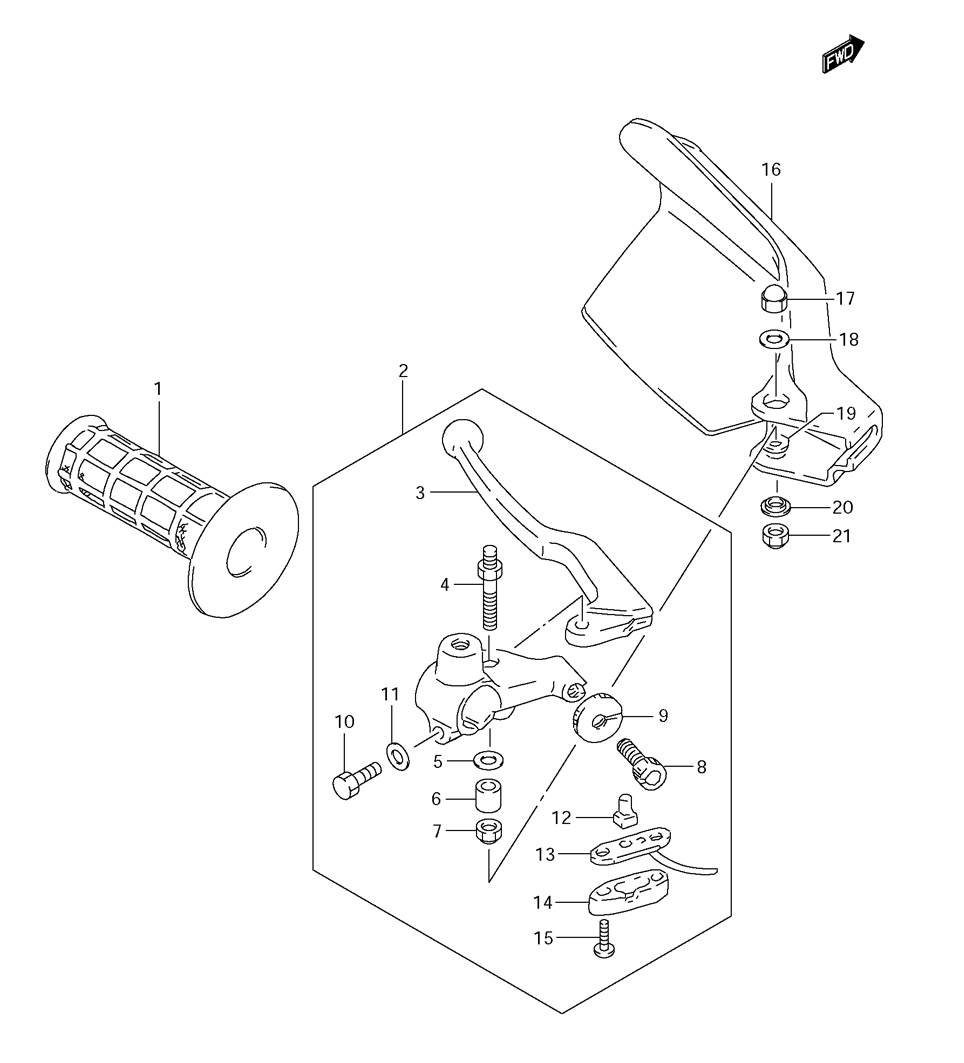

HANDLEBARE - LEFT HANDLE LEVER для Suzuki DR-650SMK9 - 2009 года выпуска
-
№АртикулНазвание
-
157211-12D00 GRIP, LEFT HANDGRIP, LEFT HAND
-
257500-12E11 LEVER ASSEMBLY, CLUTCHLEVER ASSEMBLY, CLUTCH
-
357620-20A02 ...LEVER, CLUTCH...LEVER, CLUTCH
-
457531-44B01 ...BOLT...BOLT
-
508322-0106B ...WASHER...WASHER
-
657532-44B00 ...SPACER...SPACER
-
708319-2106B ...NUT...NUT
-
857441-44400 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
957442-44400 ...NUT...NUT
-
1001204-06207 ...BOLT...BOLT
-
1108322-0106B ...WASHER...WASHER
-
1257465-18601 ...CONTACT...CONTACT
-
1357541-49100 ...WIRE HARNESS...WIRE HARNESS
-
1457481-33010 ...COVER...COVER
-
1557464-37110 ...SCREW...SCREW
-
1657541-31D10-019 COVER, KNUCKLE LEFT HAND (BLACK) (019)COVER, KNUCKLE LEFT HAND (BLACK) (019)
-
1657541-31D10-30H COVER, KNUCKLE LEFT HAND (WHITE) (30H)COVER, KNUCKLE LEFT HAND (WHITE) (30H)
-
1708313-1006B NUTNUT
-
1809160-06154 WASHERWASHER
-
1909160-06019 WASHERWASHER
-
2009169-06055 WASHERWASHER
-
2108319-2106A NUTNUT
