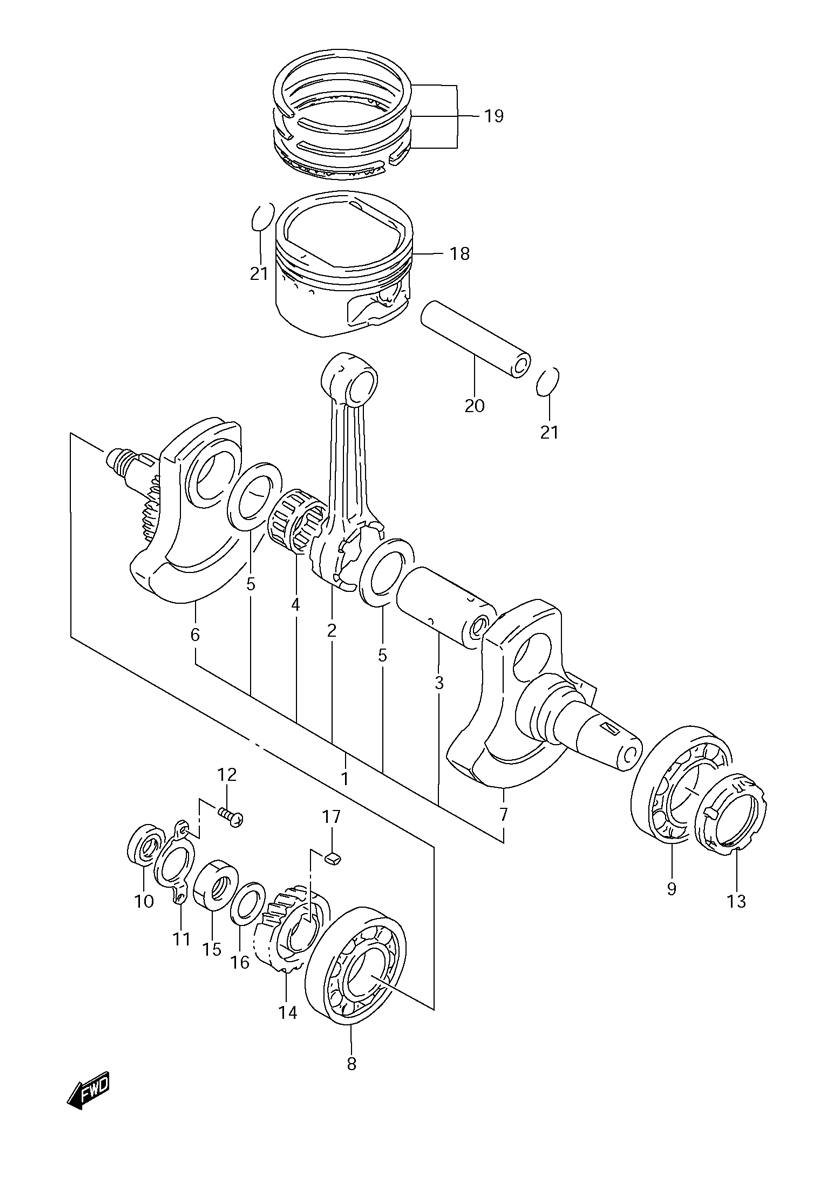

CRANKSHAFT W/ PISTON для Suzuki DR-650SMK9 - 2009 года выпуска

№

Артикул

Название
1

12000-32820 CRANKSHAFT SET

CRANKSHAFT SET
2

12161-32E00 ...ROD, CONNECTING

...ROD, CONNECTING
3

12211-32E00 ...PIN, CRANK

...PIN, CRANK
4

09263-37004-0C0 ...BEARING (37X47X25)

...BEARING (37X47X25)
5

09160-37006 ...WASHER

...WASHER
6

12221-32810 ...CRANKSHAFT SET, RIGHT HAND

...CRANKSHAFT SET, RIGHT HAND
7

12261-32E00 ...CRANKSHAFT, LEFT HAND

...CRANKSHAFT, LEFT HAND
8

09262-40008 BEARING, RIGHT HAND (40X80X18)

BEARING, RIGHT HAND (40X80X18)
9

09262-45011 BEARING, LEFT HAND

BEARING, LEFT HAND
10

09282-16002 OIL SEAL, RIGHT HAND (16X30X6)

OIL SEAL, RIGHT HAND (16X30X6)
11

12548-37400 PLATE, RIGHT HAND

PLATE, RIGHT HAND
12

02112-0508B SCREW

SCREW
13

12664-04F00 NUT

NUT
14

21111-32E00 GEAR, PRIMARY DRIVE (NO. OF TEETH: 28)

GEAR, PRIMARY DRIVE (NO. OF TEETH: 28)
15

09140-20013 NUT

NUT
16

09164-20003 LOCK WASHER

LOCK WASHER
17

09420-05007 KEY, GEAR

KEY, GEAR
18

12111-32E00-0F0 PISTON

PISTON
19

12140-32E10 RING SET, PISTON

RING SET, PISTON
20

12151-14A01 PIN, PISTON

PIN, PISTON
21

09381-23003 CIRCLIP

CIRCLIP
