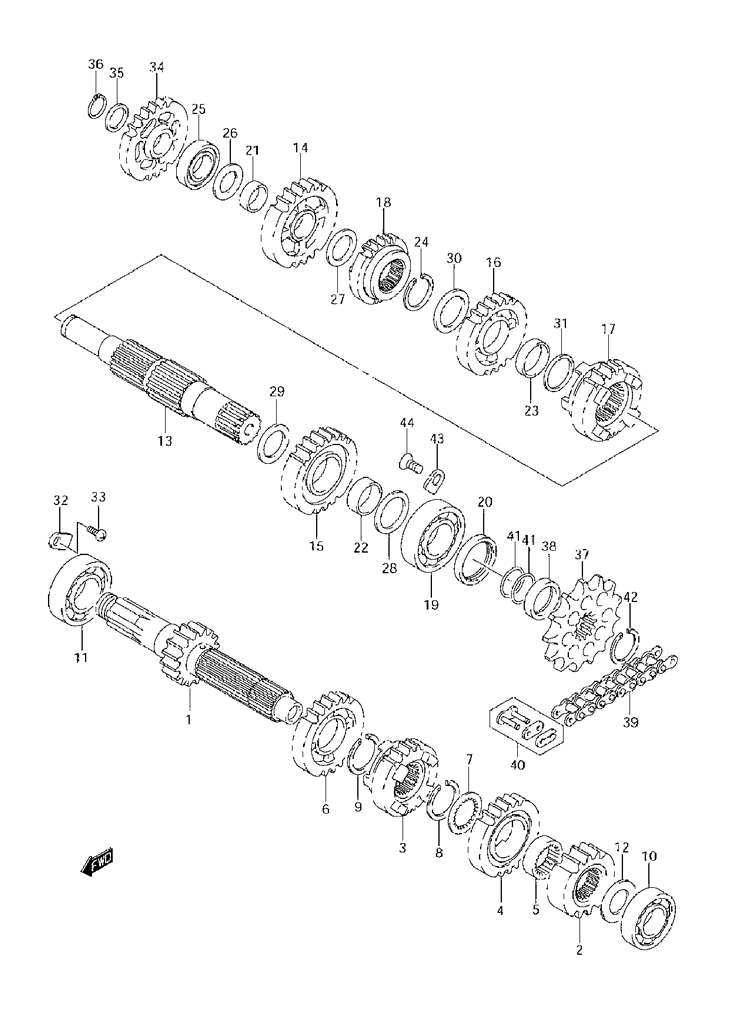

TRANSMISSION для Suzuki RM-250K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-37F50 SHAFT, COUNTER (NT:15)
    SHAFT, COUNTER (NT:15)
  • 2
    24221-37F00 GEAR, 2ND DRIVE (NT:17)
    GEAR, 2ND DRIVE (NT:17)
  • 3
    24231-37F11 GEAR, 3RD DRIVE (NT:19)
    GEAR, 3RD DRIVE (NT:19)
  • 4
    24241-37E01 GEAR, 4TH DRIVE (NT:21)
    GEAR, 4TH DRIVE (NT:21)
  • 5
    24242-37F00 BUSH, 4TH DRIVE GEAR
    BUSH, 4TH DRIVE GEAR
  • 6
    24251-37E00 GEAR, 5TH DRIVE (NT:23)
    GEAR, 5TH DRIVE (NT:23)
  • 7
    09167-25026 WASHER, 4TH (25X31X1.0)
    WASHER, 4TH (25X31X1.0)
  • 8
    09380-25010 CIRCLIP, 4TH DRIVE
    CIRCLIP, 4TH DRIVE
  • 9
    09380-25010 CIRCLIP, 5TH DRIVE
    CIRCLIP, 5TH DRIVE
  • 10
    08143-62030 BEARING, CNTR LEFT HAND
    BEARING, CNTR LEFT HAND
  • 11
    08143-62057 BEARING, CNTR RIGHT HAND
    BEARING, CNTR RIGHT HAND
  • 12
    09181-17223 WASHER, 2ND (17X30X1.0)
    WASHER, 2ND (17X30X1.0)
  • 13
    24131-37F20 SHAFT, DRIVE
    SHAFT, DRIVE
  • 14
    24311-37E00 GEAR, 1ST DRIVEN (NT:27)
    GEAR, 1ST DRIVEN (NT:27)
  • 15
    24321-37E02 GEAR, 2ND DRIVEN (NT:25)
    GEAR, 2ND DRIVEN (NT:25)
  • 16
    24331-37F02 GEAR, 3RD DRIVEN (NT:23)
    GEAR, 3RD DRIVEN (NT:23)
  • 17
    24341-37F20 GEAR, 4TH DRIVEN (NT:21)
    GEAR, 4TH DRIVEN (NT:21)
  • 18
    24351-37F20 GEAR, 5TH DRIVEN (NT:20)
    GEAR, 5TH DRIVEN (NT:20)
  • 19
    09262-22030 BEARING, DRIVE SHAFT, LEFT HAND
    BEARING, DRIVE SHAFT, LEFT HAND
  • 20
    09289-28012 SEAL, DRIVE (28X38X7.5)
    SEAL, DRIVE (28X38X7.5)
  • 21
    09300-20037 BUSH, 1ST DRIVEN GEAR
    BUSH, 1ST DRIVEN GEAR
  • 22
    09300-25031 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 23
    09300-25031 BUSH, 3RD DRIVEN GEAR
    BUSH, 3RD DRIVEN GEAR
  • 24
    09380-25010 CIRCLIP, 3RD DRIVEN
    CIRCLIP, 3RD DRIVEN
  • 25
    09262-17023 BEARING, DRIVE SHAFT, RIGHT HAND
    BEARING, DRIVE SHAFT, RIGHT HAND
  • 26
    09181-17223 WASHER, 1ST (17X30X1.0)
    WASHER, 1ST (17X30X1.0)
  • 27
    09181-20195 WASHER, 1ST (20X30X1.0)
    WASHER, 1ST (20X30X1.0)
  • 28
    09181-22240 WASHER, 2ND (22X34X1.5)
    WASHER, 2ND (22X34X1.5)
  • 29
    09181-25167 WASHER, 2ND (25X34X1.0)
    WASHER, 2ND (25X34X1.0)
  • 30
    09181-25167 WASHER, 3RD (25X34X1.0)
    WASHER, 3RD (25X34X1.0)
  • 31
    08221-25305 WASHER, 3RD DRIVEN NO.2
    WASHER, 3RD DRIVEN NO.2
  • 32
    24741-21A00 RETAINER, CNTR SHAFT BRG
    RETAINER, CNTR SHAFT BRG
  • 33
    02112-0612B SCREW, CNTR RETAINER
    SCREW, CNTR RETAINER
  • 34
    26260-37E01 GEAR, KICK STARTER (NT:27)
    GEAR, KICK STARTER (NT:27)
  • 35
    09181-17130 WASHER, KICK (17X24X0.5)
    WASHER, KICK (17X24X0.5)
  • 36
    08331-3117A CIRCLIP, KICK IDLE GR
    CIRCLIP, KICK IDLE GR
  • 37
    27511-37F00 SPROCKET, ENGINE (NT:13)
    SPROCKET, ENGINE (NT:13)
  • 38
    27531-28C00 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 39
    27600-43D01-114 CHAIN ASSY (DID520DMA2,114LE)
    CHAIN ASSY (DID520DMA2,114LE)
  • 40
    27620-43D00 JOINT SET, CHAIN
    JOINT SET, CHAIN
  • 41
    09280-20006 O RING (D:1.9,ID:19.8)
    O RING (D:1.9,ID:19.8)
  • 42
    09380-22006 CIRCLIP, ENGINE SPROCKET
    CIRCLIP, ENGINE SPROCKET
  • 43
    24741-20A00 RETAINER, DRIVE SHAFT
    RETAINER, DRIVE SHAFT
  • 44
    02122-0612A SCREW
    SCREW
