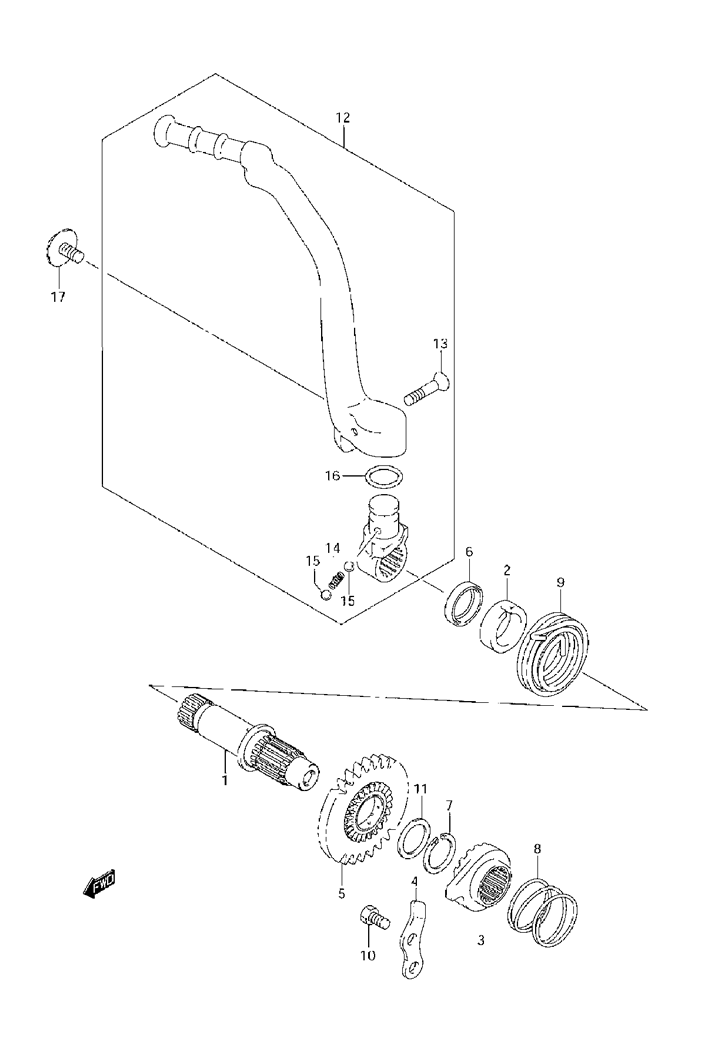

KICK STARTER для Suzuki RM-250K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    26211-37F00 SHAFT, KICK STARTER
    SHAFT, KICK STARTER
  • 2
    26221-01B01 GUIDE, KICK STARTER
    GUIDE, KICK STARTER
  • 3
    26231-37F00 STARTER, KICK
    STARTER, KICK
  • 4
    26232-40200 GUIDE, KICK STARTER
    GUIDE, KICK STARTER
  • 5
    26240-37F00 GEAR, KICK STARTER DRIVE
    GEAR, KICK STARTER DRIVE
  • 6
    09283-20031 SEAL, KICK SHAFT OIL
    SEAL, KICK SHAFT OIL
  • 7
    09380-22006 CIRCLIP, KICK GEAR
    CIRCLIP, KICK GEAR
  • 8
    09440-32002 SPRING, KICK STOPPER
    SPRING, KICK STOPPER
  • 9
    09448-48012 SPRING, KICK STARTER SHAFT
    SPRING, KICK STARTER SHAFT
  • 10
    01500-0612B BOLT, KICK STOPPER
    BOLT, KICK STOPPER
  • 11
    09181-22139 WASHER, KICK DRIVE GEAR
    WASHER, KICK DRIVE GEAR
  • 12
    26300-37F20 LEVER ASSY, KICK STARTER (INCL. 13-16)
    LEVER ASSY, KICK STARTER (INCL. 13-16)
  • 13
    09127-06016 SCREW, KICK STARTER LEVER
    SCREW, KICK STARTER LEVER
  • 14
    09440-05031 SPRING, KICK STARTER LEVER
    SPRING, KICK STARTER LEVER
  • 15
    06111-07004 BALL, KICK STARTER LEVER
    BALL, KICK STARTER LEVER
  • 16
    26313-28E20 O RING
    O RING
  • 17
    09103-08340 BOLT, KICK STARTER LEVER
    BOLT, KICK STARTER LEVER
