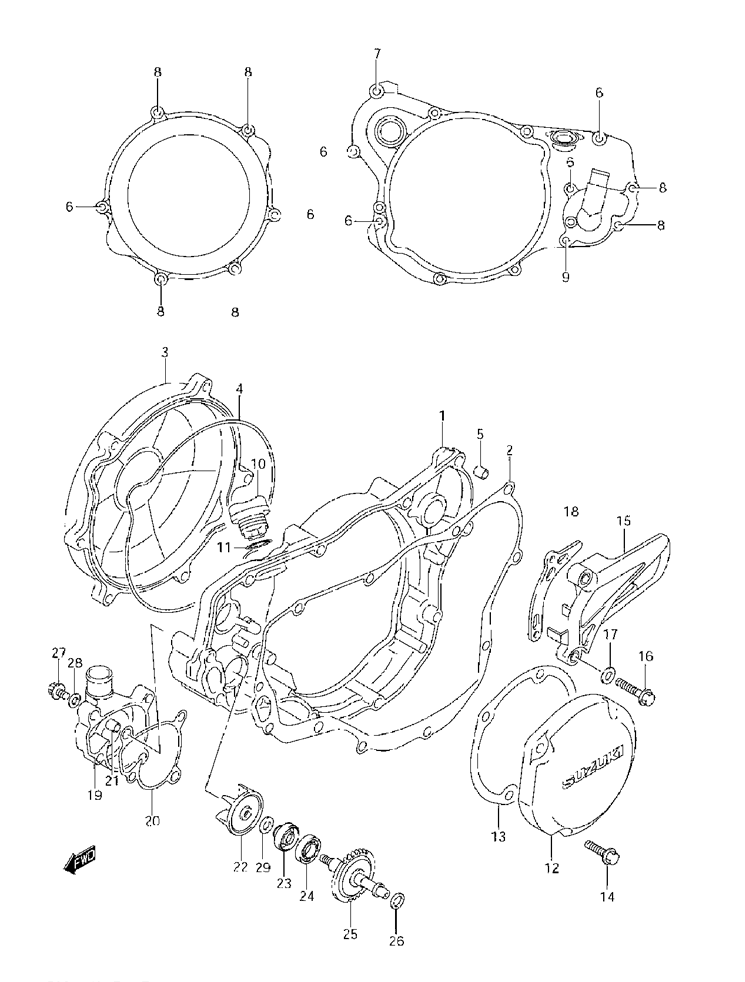

CRANKCASE COVER-WATER PUMP для Suzuki RM-250K8 - 2008 года выпуска`
-
№АртикулНазвание
-
111341-37F20 COVER, CLUTCHCOVER, CLUTCH
-
211482-37F01 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
311371-37F01 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
411484-37E00 O RING, CLUTCH OUTER COVERO RING, CLUTCH OUTER COVER
-
504211-09109 PINPIN
-
609103-06250 BOLTBOLT
-
709103-06251 BOLTBOLT
-
809103-06253 BOLTBOLT
-
909103-06245 BOLTBOLT
-
1011971-25D00 PLUG, OIL FILLERPLUG, OIL FILLER
-
1109280-17003 O RINGO RING
-
1211351-37F00 COVER, MAGNETOCOVER, MAGNETO
-
1311483-37E02 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1401547-06207 BOLTBOLT
-
1511360-36E00 COVER, SPROCKETCOVER, SPROCKET
-
1609103-06251 BOLTBOLT
-
1708322-0106B WASHERWASHER
-
1827641-37E00 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
1917411-37F10 CASE, WATER PUMPCASE, WATER PUMP
-
2017431-37F00 GASKET, WATER PUMP CASEGASKET, WATER PUMP CASE
-
2104211-09109 PINPIN
-
2217491-37F10 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2317461-37F00 SEAL, WATER PUMP OILSEAL, WATER PUMP OIL
-
2408113-69010 BEARINGBEARING
-
2517510-37F10 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
2609181-08139 WASHERWASHER
-
2707120-0610B BOLT, WATER PUMP DRAINBOLT, WATER PUMP DRAIN
-
2809168-06004 GASKETGASKET
-
2908211-06121 WASHER, WATER PUMP IMPELLERWASHER, WATER PUMP IMPELLER
