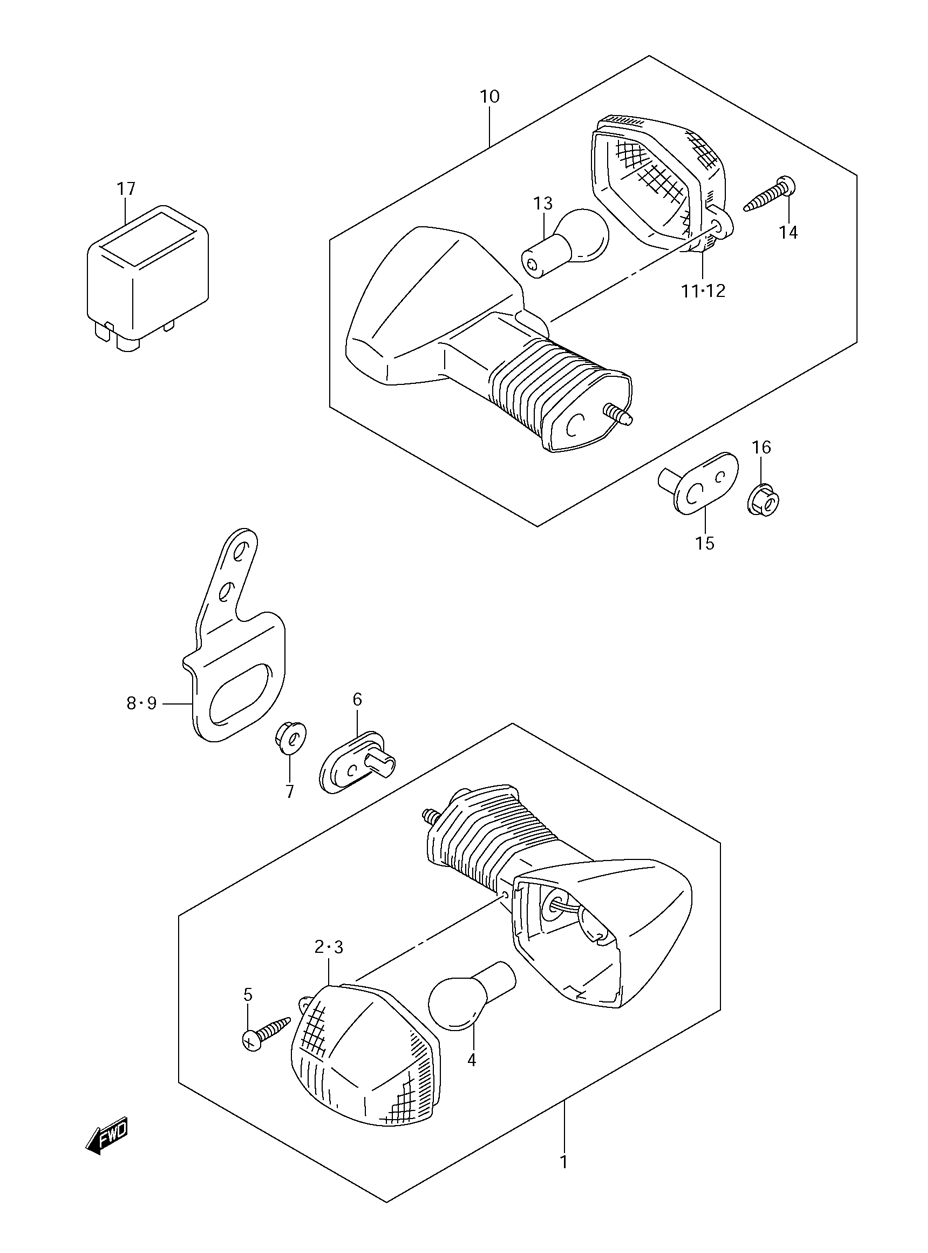

TURN SIGNAL ASSY. для Suzuki DR-Z400SK5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    35601-29F30 LAMP ASSEMBLY, FRONT TURN RIGHT HAND
    LAMP ASSEMBLY, FRONT TURN RIGHT HAND
  • 1
    35602-29F30 LAMP ASSEMBLY, FRONT TURN LEFT HAND
    LAMP ASSEMBLY, FRONT TURN LEFT HAND
  • 2
    35612-31F30 ...LENS, RIGHT HAND (AMBER)
    ...LENS, RIGHT HAND (AMBER)
  • 3
    35632-31F30 ...LENS, LEFT HAND (AMBER)
    ...LENS, LEFT HAND (AMBER)
  • 4
    09471-12045 ...BULB (12V,21W) CLEAR
    ...BULB (12V,21W) CLEAR
  • 5
    03242-0416A ...SCREW
    ...SCREW
  • 6
    35629-31F40 PLATE, FRONT TURN
    PLATE, FRONT TURN
  • 7
    08316-1005B NUT
    NUT
  • 8
    35671-29F00 BRACKET, FRONT RIGHT HAND
    BRACKET, FRONT RIGHT HAND
  • 9
    35681-29F00 BRACKET, FRONT LEFT HAND
    BRACKET, FRONT LEFT HAND
  • 10
    35603-29F60 LAMP ASSEMBLY, REAR TURN RIGHT HAND
    LAMP ASSEMBLY, REAR TURN RIGHT HAND
  • 10
    35604-29F60 LAMP ASSEMBLY, REAR TURN LEFT HAND
    LAMP ASSEMBLY, REAR TURN LEFT HAND
  • 11
    35632-31F30 ...LENS, RIGHT HAND (AMBER)
    ...LENS, RIGHT HAND (AMBER)
  • 12
    35612-31F30 ...LENS, LEFT HAND (AMBER)
    ...LENS, LEFT HAND (AMBER)
  • 13
    09471-12045 ...BULB (12V,21W) CLEAR
    ...BULB (12V,21W) CLEAR
  • 14
    03242-0416A ...SCREW
    ...SCREW
  • 15
    35629-31F40 PLATE, REAR TURN
    PLATE, REAR TURN
  • 16
    08316-1005B NUT
    NUT
  • 17
    38610-03F00 RELAY ASSEMBLY, TURNSIGNAL
    RELAY ASSEMBLY, TURNSIGNAL
