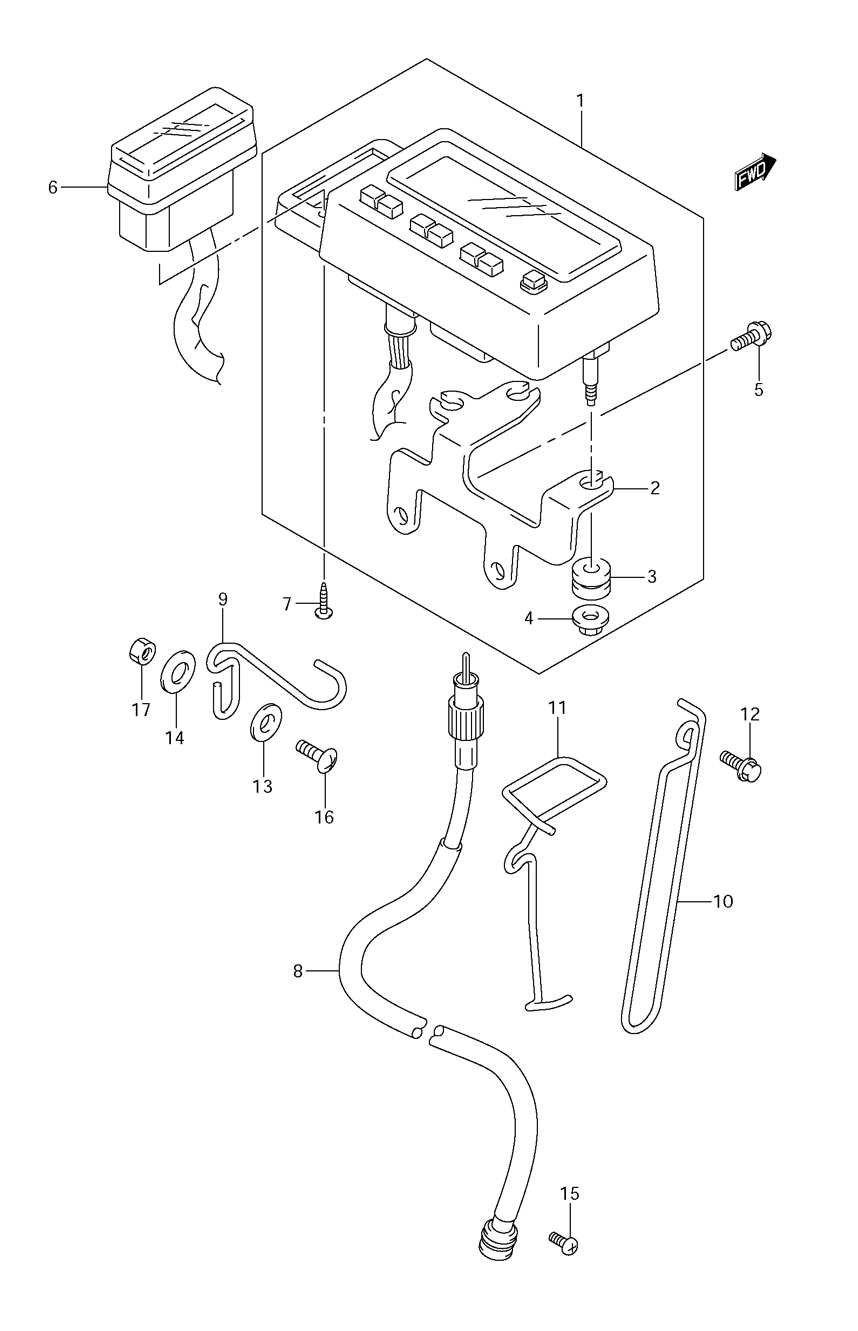

SPEEDOMETER для Suzuki DR-Z400SK5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    34100-29F21 SPEEDOMETER ASSEMBLY (MILE/KILO)
    SPEEDOMETER ASSEMBLY (MILE/KILO)
  • 1
    34100-29F01 SPEEDOMETER ASSEMBLY (KILO) (FOR CANADA ONLY)
    SPEEDOMETER ASSEMBLY (KILO) (FOR CANADA ONLY)
  • 2
    34950-29F00 ...BRACKET
    ...BRACKET
  • 3
    34996-43410 ...CUSHION
    ...CUSHION
  • 4
    08316-1005A ...NUT
    ...NUT
  • 5
    01550-0616B BOLT, SPEEDOMETER
    BOLT, SPEEDOMETER
  • 6
    36380-29F00 BOX ASSEMBLY, PILOT LAMP
    BOX ASSEMBLY, PILOT LAMP
  • 7
    03511-04203 SCREW
    SCREW
  • 8
    34910-32E00 CABLE ASSEMBLY, SPEEDOMETER
    CABLE ASSEMBLY, SPEEDOMETER
  • 9
    34938-03D22 GUIDE, METER CABLE NO.1
    GUIDE, METER CABLE NO.1
  • 10
    34938-14D30 GUIDE, METER CABLE NO.2
    GUIDE, METER CABLE NO.2
  • 11
    34938-29F10 GUIDE, METER CABLE NO.3
    GUIDE, METER CABLE NO.3
  • 12
    09116-06167 BOLT, METER CABLE NO.2
    BOLT, METER CABLE NO.2
  • 13
    09160-06109 WASHER, METER CABLE NO.1
    WASHER, METER CABLE NO.1
  • 14
    09169-06054 WASHER, METER CABLE NO.1
    WASHER, METER CABLE NO.1
  • 15
    02112-0516B SCREW, METER CABLE
    SCREW, METER CABLE
  • 16
    02142-0616B SCREW, METER CABLE GUIDE NO.1
    SCREW, METER CABLE GUIDE NO.1
  • 17
    08310-0006B NUT, METER CABLE NO.1
    NUT, METER CABLE NO.1
